Professional connector panel for MXE

Summary & Images Specs Downloads & Support
  • Designed for touring and professional installation
  • High quality components
  • Robust 2RU construction
  • Customizable spare port
  • Compatible with both MXE5 and MXE10 devices

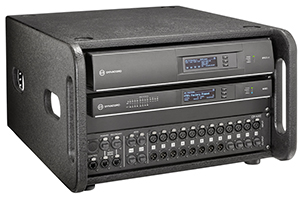

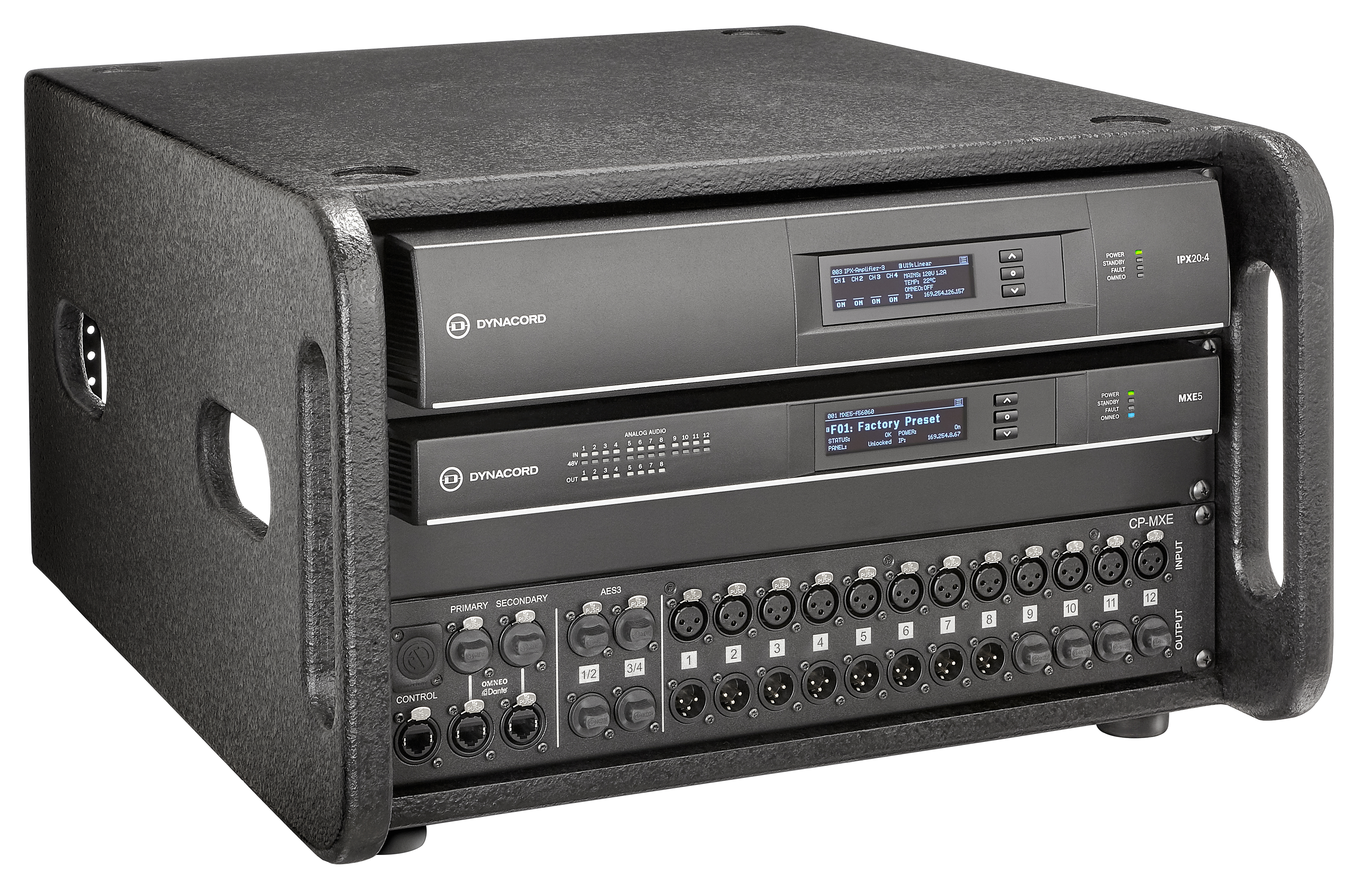

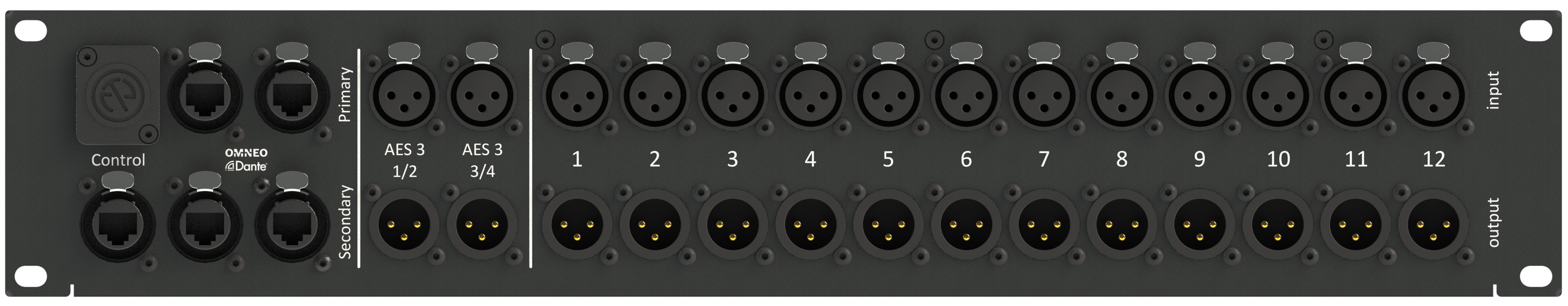

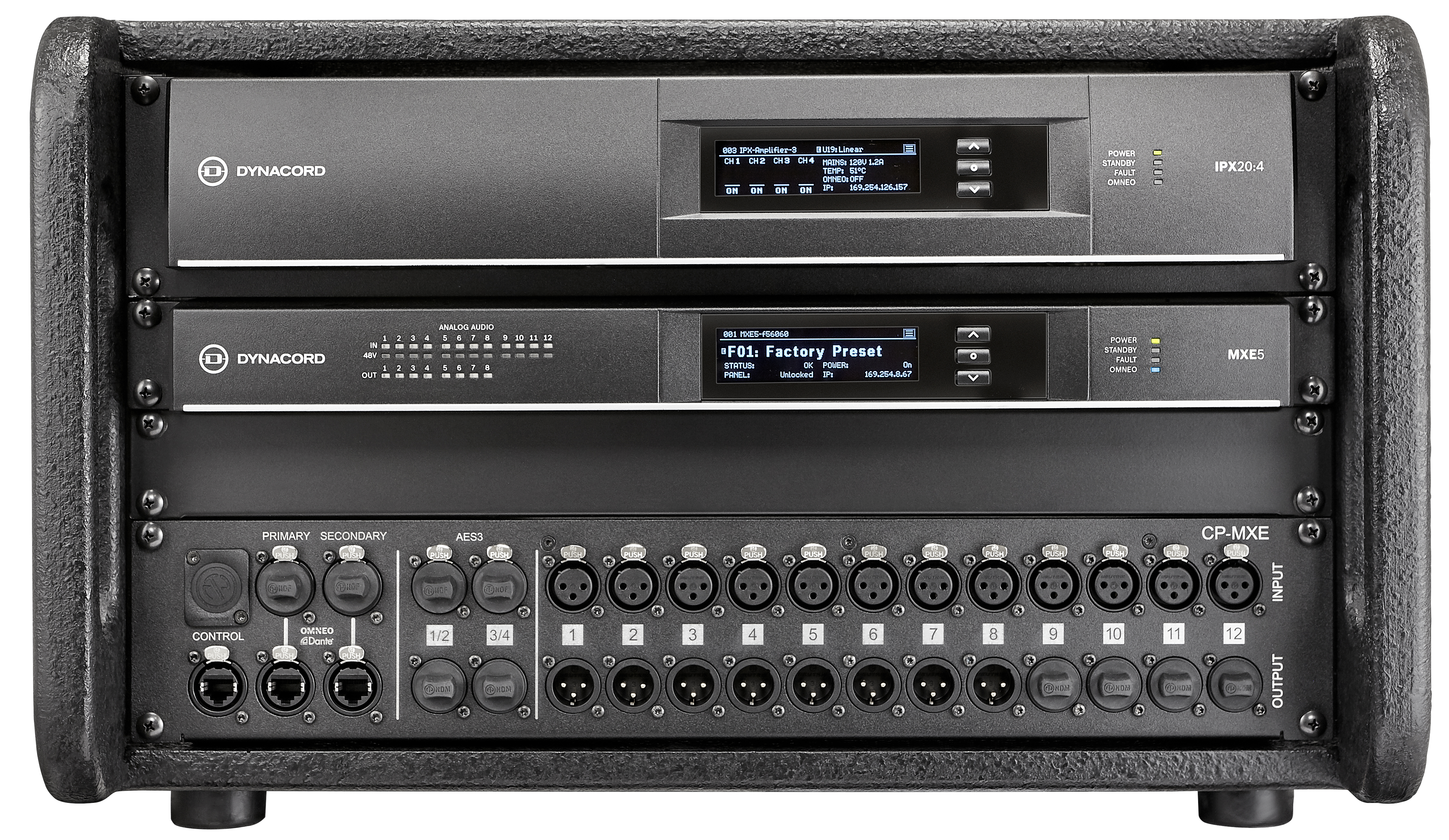

CP-MXE professional connector panel provides easy connection of Neutrik XLR and etherCON connectors directly to MXE series devices.


Audio Eingangsbuchsen, analog 12 x XLR 3-pin, female
Audio Eingangsbuchsen, AES3 2 x XLR 3-pin, female
Audio Ausgangsbuchsen, analog 12 x XLR 3-pin, male

Audio Ausgangsbuchsen, AES3 2 x XLR 3-pin, male
Netzwerkbuchsen 5 x etherCon auf RJ45

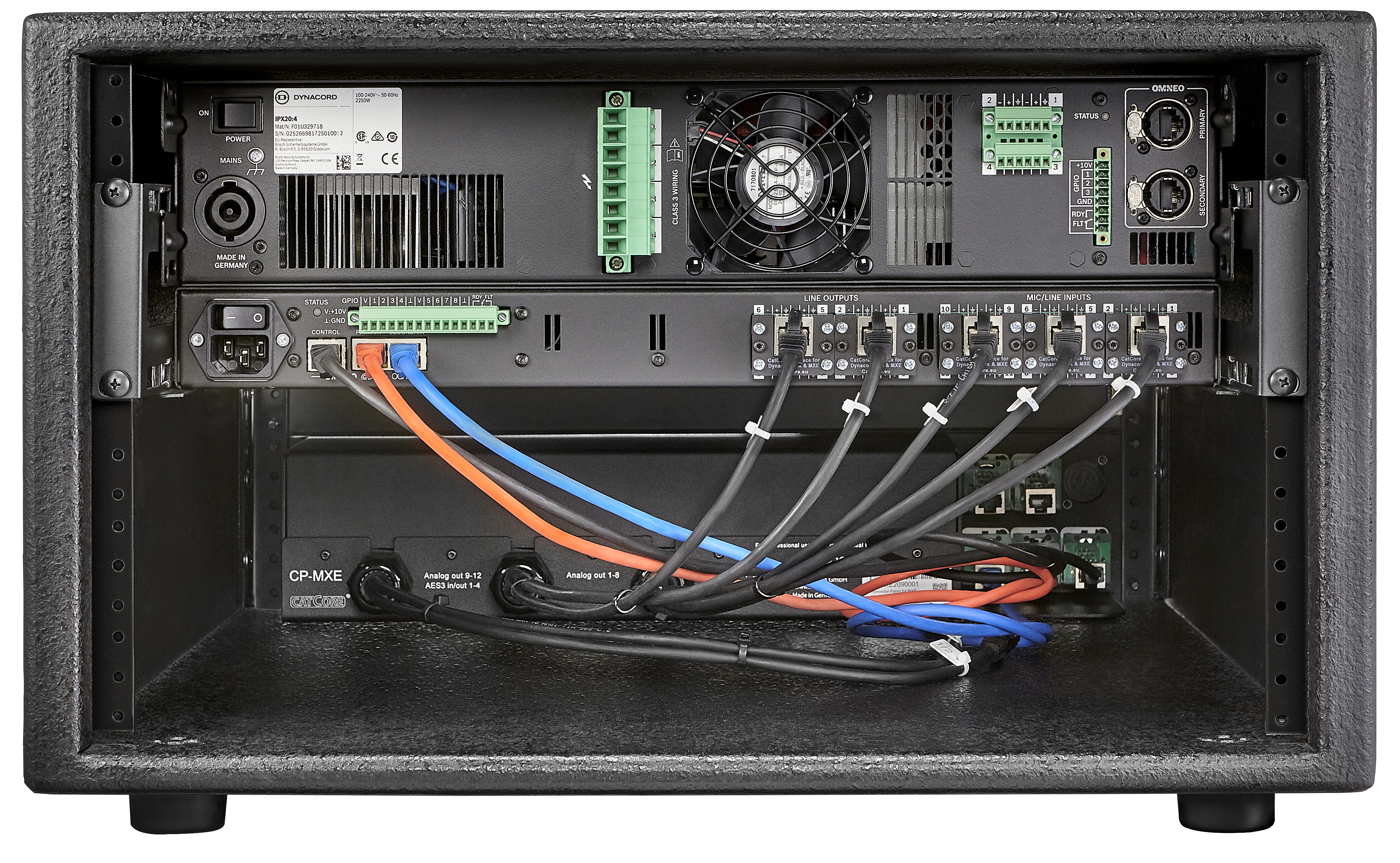

Rückseitiger Anschluss 7 x Kabel mit RJ45 (AES72)
Adapter Module 7 x RJ45 auf 2 x 6-pin Euroblock
Umgebungstemperatur-Grenzwerte -5 °C bis +40 °C
Leuftfeutigkeit <90% (nicht kondensierend)
Abmessungen Anschlusspanel (B x H x T) 483 x 89 x 145 mm (ohne Kabel)
Abmessungen RJ45 Adapter (B x H x T) 35 x 27 x 35 mm
Nettogewicht mit/ohne Adapter 1.6 kg / 1.9 kg
Versandgewicht 2.2 kg
