VariLine
Variline loudspeakers have been engineered for maximum audio quality and the widest possible range of applications to keep up with the continuously changing demands of live sound reinforcement and the installation business.
Comprehensive mounting hardware and unobtrusive aesthetics permit hassle-free touring use and installation even in the most critical surroundings. The asymmetrical enclosures facilitate ceiling and wall mounting as well as the use in clusters or as stage monitors.
Models
Sub 18
Direct radiator subwoofer
-
Weight Net
49
SPL 2,83 V/1m
98dB
Configuration
Vented Direct Radiator
VCT Protections
yes
Passive Power Handling
2800
Powered/Passive
Passive
Components LOW
LFS 18700
Connectors SPEAKON 2x NL 4MPR
2x NL 4MPR
Dimensions
505x 805x 570
Freq. Range (-10 dB)
35Hz - 700Hz
Grille
Powder Coated Steel
Passive X-Over Frequency
Hi-Cut
Pin Wiring Normal/Fullrange
1+/1-
Program power
1400W
Rated power RMS
700W
Finish
Black 2-Component Structure Paint
Max. SPL/1m (calc)
132
Coverage (Nominal -6 dB) H
360
Speaker Type
Subwoofer
Enclosure Material
Birch Plywood
Nominal Impedance
8Ω
Power Rating
2800
Woofer Size
18
Sub 28
Direct radiator subwoofer
-
Weight Net
82
Finish
Black 2-Component Structure Paint
Max. SPL/1m (calc)
138
Coverage (Nominal -6 dB) H
360
Speaker Type
Subwoofer
Enclosure Material
Birch Plywood
Nominal Impedance
4Ω
Power Rating
5600
Woofer Size
18
Configuration
Vented Direct Radiator
Passive Power Handling
5600
Components LOW
2x LFS 18700
Connectors SPEAKON 2x NL 4MPR
2x NL 4MPR
Dimensions
605x 1205x 675
Freq. Range (-10 dB)
35Hz - 700Hz
Grille
Powder Coated Steel
Passive X-Over Frequency
Hi-Cut
Pin Wiring Biamped HF
Speaker A 1+/1-
Pin Wiring Biamped LF
Speaker B 2+/2-
Pin Wiring Normal/Fullrange
1+/1-
Program power
2800W
Rated power RMS
1400W
SPL 2,83 V/1m
104dB
VCT Protections
yes
Powered/Passive
Passive
VL122
2‑way fullrange cabinet
-
Weight Net
24
Finish
Black 2-Component Structure Paint
Max. SPL/1m (calc)
131
Coverage (Nominal -6 dB) H
90
Speaker Type
Full-Range
Enclosure Material
Birch Plywood
Nominal Impedance
8Ω
Power Rating
1600
Woofer Size
12
Configuration
passive 2-Way or Biamped Mode
Passive Power Handling
1600
Components HIGH
Ev ND6-8
Components LOW
DND 12350
Connectors SPEAKON
2x NL 4MPR
Coverage Angle nom.
90° x 45°
Dimensions
385x 715x 374
Freq. Range (-10 dB)
60Hz - 20Hz
Grille
Powder Coated Steel, Acoustic Foam
Passive X-Over Frequency
1,5kHz
Pin Wiring Biamped HF
2+/2-
Pin Wiring Biamped LF
1+/1-
Pin Wiring Normal/Fullrange
1+/1-
Program power
800W
Rated power RMS
400W
SPL 2,83 V/1m
99dB
VCT Protections
yes
Powered/Passive
Passive
VL152
2‑way fullrange cabinet
-
Weight Net
26
Enclosure Material
Birch Plywood
Woofer Size
15
Configuration
passive 2-Way or Biamped Mode
Passive Power Handling
2000
Components HIGH
Ev ND6-8
Components LOW
DND 15400
Connectors SPEAKON
2x NL 4MPR
Coverage Angle nom.
90° x 45°
Dimensions
441x 780x 407
Freq. Range (-10 dB)
50Hz - 20Hz
Grille
Powder Coated Steel, Acoustic Foam
Passive X-Over Frequency
1,5kHz
Pin Wiring Biamped HF
2+/2-
Pin Wiring Biamped LF
1+/1-
Pin Wiring Normal/Fullrange
1+/1-
Program power
1000W
Rated power RMS
500W
SPL 2,83 V/1m
100dB
VCT Protections
yes
Powered/Passive
Passive
Finish
Black 2-Component Structure Paint
Max. SPL/1m (calc)
133
Coverage (Nominal -6 dB) H
90
Nominal Impedance
8Ω
Speaker Type
Full-Range
Power Rating
2000

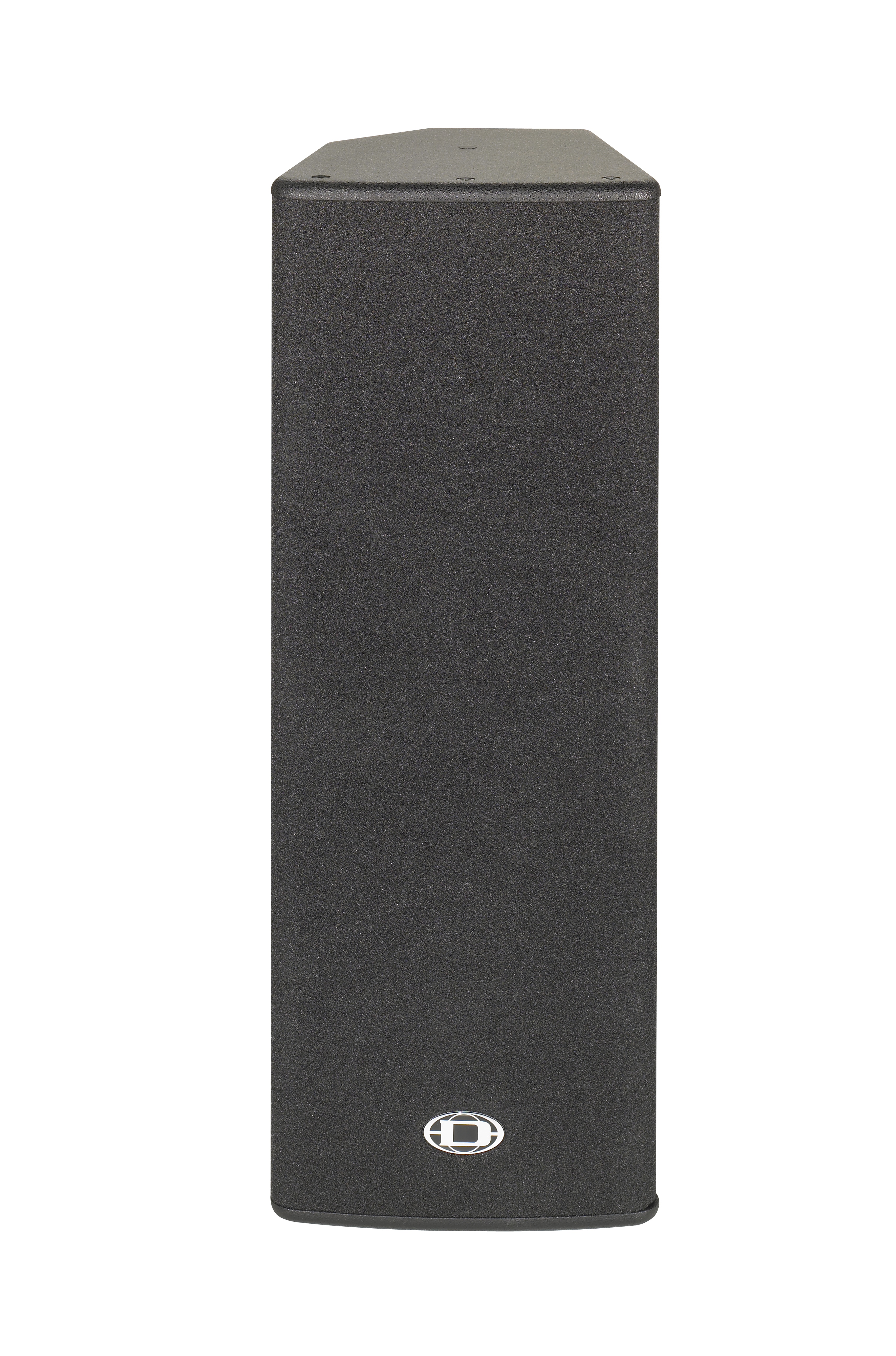

VL212
2‑way fullrange cabinet
-
Weight Net
34
Active crossover frequency
1.5kHz 24dB/Oct. Linkwitz-Riley, 1,5kHz Linear-Phase FIR
Component High
Electro-Voice ND6-8 Neodymium
Component LOW
2x DND 12350
Connector model
Speakon 2x NL4 MPR
Connectors Biamped
Lo 1+, 1- Hi 2+, 2-
Connectors Full-Range
1+, 1-
Coverage angle 1 kHz -6dB
90° * 45°
Dimensions
385x1035x374mm
Frequency range ( -10dB ) Full range
80Hz - 19kHz
Frequency range ( -10dB ) measured with H5000-RCM26 preset
50Hz - 19kHz
Grille
Powder coated steel, acoustic foam
Handles
2
Passive crossover frequency
1.5kHz
Program power
1600W
Finish
Black, 2-component paint
Rated power RMS
800W
Max. SPL/1m (calc)
137
SPL 2,83 V / 1m 2W / 4 Ohm
105dB
Voice coil tracking protection
Yes
Coverage (Nominal -6 dB) H
90
Wired through
1+, 1-, 2+, 2-
Speaker Type
Full-Range
Powered/Passive
Passive
Enclosure Material
Birch plywood
Shipping Weight
kg
Nominal Impedance
4Ω
Power Rating
3200
Woofer Size
12
Configuration
Passive 2-Way
Passive Power Handling
3200
VL262
2‑way fullrange cabinet
-
Weight Net
10
Components LOW
2x DND 6130-16
Connectors SPEAKON
2x NL 4MPR
Coverage Angle nom.
90° x 40°
Dimensions
217x 543x 230
Freq. Range (-10 dB)
90Hz - 20kHz
Grille
Powder Coated Steel, Acoustic Foam
Passive X-Over Frequency
2,2kHz
Pin Wiring Normal/Fullrange
1+/1-
Program power
600W
Rated power RMS
300W
SPL 2,83 V/1m
97dB
Finish
Black 2-Component Structure Paint
VCT Protections
Halogen
Max. SPL/1m (calc)
125
Coverage (Nominal -6 dB) H
90
Powered/Passive
Passive
Speaker Type
Full-Range
Enclosure Material
Birch Plywood
Nominal Impedance
8Ω
Power Rating
1200
Woofer Size
6
Configuration
Passive 2-Way
Passive Power Handling
1200
Components HIGH
Ev DH 3
VL62
2‑way fullrange cabinet
-
Weight Net
8
Passive Power Handling
600
Speaker Type
Full-Range
Component LOW
DND 6130-16
Connector modelSpeakon
2x NL4 MPR
Connectors Full-Range
1+, 1-
Coverage angle nominal
90° *40°
Dimensions
217x375x230mm
Frequency range ( -10dB ) Full range
90Hz - 20kHz
Frequency range ( -10dB ) measured with H5000-RCM26 preset
60Hz - 20kHz
Grille
Powder coated steel, acoustic foam
Program power
300W
Rated power RMS
150W
SPL 1W / 1m 4V / 16Ohm
94dB
Voice coil tracking protection
Halogen
Wired through
1+, 1-
Powered/Passive
Passive
Enclosure Material
Birch plywood
Shipping Weight
10kg
Nominal Impedance
16Ω
Power Rating
600
Finish
Black 2-component paint
Woofer Size
6
Max. SPL/1m (calc)
122
Configuration
Passive 2-Way
Coverage (Nominal -6 dB) H
90
Sub 18 |
Sub 28 |
VL122 |
VL152 |
VL212 |
VL262 |
VL62 | |
Weight Net | 49kg (108.03 lbs) | 82kg (180.78 lbs) | 24kg (52.91 lbs) | 26kg (57.32 lbs) | 34kg (74.96 lbs) | 10kg (22.05 lbs) | 8kg (17.64 lbs) |
Enclosure Material | Birch Plywood | Birch Plywood | Birch Plywood | Birch Plywood | Birch plywood | Birch Plywood | Birch plywood |
Passive Power Handling | 2800W peak | 5600W peak | 1600W peak | 2000W peak | 3200W peak | 1200W peak | 600W peak |
Speaker Type | Subwoofer | Subwoofer | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range |
SPL 2,83 V/1m | 98dB | 104dB | 99dB | 100dB | 97dB | ||
Woofer Size | 18mm (0.71") | 18mm (0.71") | 12mm (0.47") | 15mm (0.59") | 12mm (0.47") | 6mm (0.24") | 6mm (0.24") |
Configuration | Vented Direct Radiator | Vented Direct Radiator | passive 2-Way or Biamped Mode | passive 2-Way or Biamped Mode | Passive 2-Way | Passive 2-Way | Passive 2-Way |
Finish | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black, 2-component paint | Black 2-Component Structure Paint | Black 2-component paint |
Component LOW | 2x DND 12350 | DND 6130-16 | |||||
VCT Protections | yes | yes | yes | yes | Halogen | ||
Active crossover frequency | 1.5kHz 24dB/Oct. Linkwitz-Riley, 1,5kHz Linear-Phase FIR | ||||||
Max. SPL/1m (calc) | 132dB | 138dB | 131dB | 133dB | 137dB | 125dB | 122dB |
Connector modelSpeakon | 2x NL4 MPR | ||||||
Powered/Passive | Passive | Passive | Passive | Passive | Passive | Passive | Passive |
Components LOW | LFS 18700 | 2x LFS 18700 | DND 12350 | DND 15400 | 2x DND 6130-16 | ||
Component High | Electro-Voice ND6-8 Neodymium | ||||||
Coverage (Nominal -6 dB) H | 360° | 360° | 90° | 90° | 90° | 90° | 90° |
Connectors Full-Range | 1+, 1- | 1+, 1- | |||||
Components HIGH | Ev ND6-8 | Ev ND6-8 | Ev DH 3 | ||||
Connectors SPEAKON 2x NL 4MPR | 2x NL 4MPR | 2x NL 4MPR | |||||
Coverage angle nominal | 90° *40° | ||||||
Dimensions | 505x 805x 570 | 605x 1205x 675 | 385x 715x 374 | 441x 780x 407 | 385x1035x374mm | 217x 543x 230 | 217x375x230mm |
Connectors SPEAKON | 2x NL 4MPR | 2x NL 4MPR | 2x NL 4MPR | ||||
Freq. Range (-10 dB) | 35Hz - 700Hz | 35Hz - 700Hz | 60Hz - 20Hz | 50Hz - 20Hz | 90Hz - 20kHz | ||
Connector model | Speakon 2x NL4 MPR | ||||||
Coverage Angle nom. | 90° x 45° | 90° x 45° | 90° x 40° | ||||
Grille | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel, Acoustic Foam | Powder Coated Steel, Acoustic Foam | Powder coated steel, acoustic foam | Powder Coated Steel, Acoustic Foam | Powder coated steel, acoustic foam |
Connectors Biamped | Lo 1+, 1- Hi 2+, 2- | ||||||
Nominal Impedance | 8ΩΩ | 4ΩΩ | 8ΩΩ | 8ΩΩ | 4ΩΩ | 8ΩΩ | 16ΩΩ |
Frequency range ( -10dB ) Full range | 80Hz - 19kHz | 90Hz - 20kHz | |||||
Passive X-Over Frequency | Hi-Cut | Hi-Cut | 1,5kHz | 1,5kHz | 2,2kHz | ||
Power Rating | 2800W | 5600W | 1600W | 2000W | 3200W | 1200W | 600W |
Frequency range ( -10dB ) measured with H5000-RCM26 preset | 50Hz - 19kHz | 60Hz - 20kHz | |||||
Pin Wiring Normal/Fullrange | 1+/1- | 1+/1- | 1+/1- | 1+/1- | 1+/1- | ||
Coverage angle 1 kHz -6dB | 90° * 45° | ||||||
Program power | 1400W | 2800W | 800W | 1000W | 1600W | 600W | 300W |
Rated power RMS | 700W | 1400W | 400W | 500W | 800W | 300W | 150W |
SPL 1W / 1m 4V / 16Ohm | 94dB | ||||||
Pin Wiring Biamped HF | Speaker A 1+/1- | 2+/2- | 2+/2- | ||||
Voice coil tracking protection | Yes | Halogen | |||||
Pin Wiring Biamped LF | Speaker B 2+/2- | 1+/1- | 1+/1- | ||||
Wired through | 1+, 1-, 2+, 2- | 1+, 1- | |||||
Handles | 2 | ||||||
Passive crossover frequency | 1.5kHz | ||||||
SPL 2,83 V / 1m 2W / 4 Ohm | 105dB | ||||||
Shipping Weight | kgkg | 10kgkg | |||||
