L series FIR drive power amplifiers
Two-channel power amplifiers for live sound
- SONICUE 1.1. upgrade provides enhanced DSP functionality to 10-band PEQs and a dedicated array processing section
- Rock solid amplifier technology engineered in Germany
- Extremely powerful, proven audio performance
- Engineered for constant stability at 2 ohms
- Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
- High-performance, bulletproof voltage handling
- On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel
- Advanced FIR drive to optimize original factory loudspeaker settings yielding a level of unparalleled performance
- Intuitive and simplified set-up, tuning and operation with SONICUE sound system software
Dynacord's L Series power amplifiers are engineered to provide sound reinforcement for demanding live music applications. They are ideal for performing musicians and production companies providing sound reinforcement for live performances in venues like music clubs, community hall events, performance centers, and sports venues.
The L Series power amplifiers comprise a powerful linear amp design with a best in class, tour grade feature set that brings real professional performance to a new, more accessible price point. Like all Dynacord amplifiers, the L Series offers high-quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions.
L Series are supported by SONICUE 1.1 sound system software, elevating them to the top league of professional amplifiers. The feature-rich onboard DSP gets a boost under SONICUE with 10 band PEQs and a dedicated array processing section. L Series are also equipped with FIR drive, a premium feature you find usually only with tour grade amplifiers, yielding a level of performance unheard of at this price point. Four different models are available, with total output power ranging from 1300 W to 3600 W at 4 ohms.
产品
 |
 |
 |
 | |
L1300FD |
L1800FD |
L2800FD |
L3600FD | |
| Load Impedance | 2Ω 2.6Ω 4Ω 8Ω | 2Ω 2.6Ω 4Ω 8Ω | 2Ω 2.7Ω 4Ω 8Ω | 2Ω 2.7Ω 4Ω 8Ω |
| Maximum Output Power, Single Channel | 2Ω=1100W; 2.6Ω=950W; 4Ω=660W; 8Ω=350W | 2Ω= 1600W; 2.6Ω= 1300W; 4Ω= 950W; 8Ω= 480W | 2Ω= 2300W; 2.7Ω= 2000W; 4Ω= 1400W; 8Ω= 700W; | 2Ω= 3200W; 2.7Ω= 2700W; 4Ω= 1800W; 8Ω= 950W |
| Maximum Output Power, Dual Channel | 2Ω=1000W; 2.6Ω=850W; 4Ω=600W; 8Ω=320W | 2Ω= 1400W; 2.6Ω= 1200W; 4Ω= 850W; 8Ω= 450W | 2Ω= 2200W; 2.7Ω= 1800W; 4Ω= 1300W; 8Ω= 650W; | 2Ω= 3000W; 2.7Ω= 2500W; 4Ω= 1700W; 8Ω= 900W |
| Maximum Output Power, Bridged | 4Ω=2000W; 8Ω=1200W | 4Ω= 2800W; 8Ω= 1700W | 4Ω= 4400W; 8Ω= 2600W; | 4Ω= 6000W; 8Ω= 3400W |
| Maximum RMS Voltage Swing, THD = 1%, 1kHz | 55.3 V | 65.1V | 78.8V | 90.6V |
| Voltage Gain ref.1kHz | 32.0dB | 32.0dB | 32.0dB | 32.0dB |
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | <0.1% | <0.1% | <0.1% |
| DIM 30 | < 0.05 () | <0.05 () | <0.05 () | <0.05 () |
| Maximum Input Level | +21 dBu | +21dBu | +21 dBu | +21dBu |
| 通道串扰 | < -80 () | < -80 () | < -80 () | < -80 () |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) | 10 Hz to 21 kHz (±1 dB) | 10 Hz to 21 kHz (±1 dB) | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance, active balanced | 20kΩ | 20kΩ | 20kΩ | 20kΩ |
| 信噪比（A声压级） | >104 | >105 | >107 | >109 |
| Output Noise , A-weighted | < -68 dBu | <-68dBu | < -68dBu | <-68dBu |
| Output Stage Topology | Class AB | Class AB | Class H | Class H |
| 电源要求 | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| 耗电量 | 550 W () | 700W () | 700W () | 850 W () |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | Audio limiters, high temperature, DC, HF; Back-EMF, Peak current limiters, Inrush current; limiters, Turn on delay |
| 散热 | Front-to-rear, 3-stage-fans | Front-to-rear, 3-stage-fans | Front-to-rear, 3-stage-fans | Front-to-rear, 3-stage-fans |
| Safety Class | I | I | I | I |
| 可选颜色 | 黑色 | 黑色 | 黑色 | 黑色 |
| 高度 | 88 | 88 | 88 | 88 |
| 宽度 | 483 | 483 | 483 | 483 |
| 深度 | 462.4 | 462.4 | 462.4 | 462.4 |
| 净重 | 12.9 | 15.2 | 16.2 | 18.2 |
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance |
| 总谐波失真 | < 0.05 () | <0.05 () | <0.05 () | <0.05 () |
| Remote control | SONICUE sound system software (requires firmware 2.0) | SONICUE sound system software (requires firmware 2.0) | SONICUE sound system software (requires firmware 2.0) | SONICUE sound system software (requires firmware 2.0) |
| Mains Fuse | 240 V/230 V= T10AH; 120 V/100 V= T20AH | 240 V/230 V= T10AH; 120 V/100 V= T20AH | 240 V/230 V= T10AH; 120 V/100 V= T20AH | 240 V/230 V= T10AH; 120 V/100 V= T20AH |
| 工作温度范围 | +5°C to +40°C (40°F to +105°F) | +5°C to +40°C (40°F to +105°F) | +5°C to +40°C (40°F to +105°F) | +5°C to +40°C (40°F to +105°F) |
| 更多 | 更多 | 更多 | 更多 |
Show more specs
下载
| 名称 | 语言 | 文件大小 | 日期 |
|---|---|---|---|
| Dynacord Amplifiers, Digital Audio Matrices, Software & Mixers Catalog EMEA | DE | 4.18MB | 2020年09月07日 |
| Dynacord Elektronik Katalog | DE | 3.92MB | 2020年02月05日 |
| Retail catalog EMEA | DE | 29.85MB | 2020年11月10日 |
| Dynacord Amplifiers, Digital Audio Matrices, Software & Mixers Catalog EMEA | EN | 4.01MB | 2020年09月07日 |
| L-Series Amplifiers Brochure | EN | 6.86MB | 2018年04月13日 |
| Retail catalog EMEA | EN | 59.07MB | 2020年11月10日 |
| Dynacord amplifiers, digital audio matrixes, software & mixers catalog 2019 PL | PL | 10.26MB | 2019年12月17日 |
| Dynacord amplifiers, digital audio matrixes, software & mixers catalog 2019 RO | RO | 6.32MB | 2019年11月12日 |
| 名称 | 文件大小 | 日期 | |
|---|---|---|---|
| L-Series CAD Drawing | DWG | 1.17MB | 2019年02月11日 |
| 名称 | 语言 | 文件大小 | 日期 |
|---|---|---|---|
| L1300FD 数据表 | ZH | 1.18MB | 2018年03月07日 |
| L1800FD 数据表 | ZH | 1.18MB | 2018年03月07日 |
| L2800FD 数据表 | ZH | 1.17MB | 2018年03月07日 |
| L3600FD 数据表 | ZH | 1.18MB | 2018年03月07日 |
| L1300FD Datenblatt | DE | 1.14MB | 2018年03月07日 |
| L1800FD Datenblatt | DE | 1.14MB | 2018年03月07日 |
| L2800FD Datenblatt | DE | 1.14MB | 2018年03月07日 |
| L3600FD Datenblatt | DE | 1.15MB | 2018年03月07日 |
| L1300FD Engineering Data Sheet | EN | 1.14MB | 2018年03月07日 |
| L1800FD Engineering Data Sheet | EN | 1.14MB | 2018年03月07日 |
| L2800FD Engineering Data Sheet | EN | 1.13MB | 2018年03月07日 |
| L3600FD Engineering Data Sheet | EN | 1.13MB | 2018年03月06日 |
| L1300FD Hoja de Datos de Ingeniería | ES | 1.14MB | 2018年03月07日 |
| L1800FD Hoja de Datos de Ingeniería | ES | 1.14MB | 2018年03月07日 |
| L2800FD Hoja de Datos de Ingeniería | ES | 1.15MB | 2018年03月07日 |
| L3600FD Hoja de Datos de Ingeniería | ES | 1.14MB | 2018年03月07日 |
| L1300FD Fiche Technique | FR | 1.14MB | 2018年03月07日 |
| L1800FD Fiche Technique | FR | 1.14MB | 2018年03月07日 |
| L2800FD Fiche Technique | FR | 1.14MB | 2018年03月07日 |
| L3600FD Fiche Technique | FR | 1.14MB | 2018年03月07日 |
| L1300FD Engineering Data Sheet | IT | 1.14MB | 2018年03月07日 |
| L1800FD Engineering Data Sheet | IT | 1.14MB | 2018年03月07日 |
| L2800FD Engineering Data Sheet | IT | 1.14MB | 2018年03月07日 |
| L3600FD Engineering Data Sheet | IT | 1.16MB | 2018年03月07日 |
| L1300FD データシート | JA | 1.17MB | 2018年03月07日 |
| L1800FD データシート | JA | 1.17MB | 2018年03月07日 |
| L2800FD データシート | JA | 1.17MB | 2018年03月07日 |
| L3600FD データシート | JA | 1.18MB | 2018年03月07日 |
| L1300FD Engineering Data Sheet | KO | 1.23MB | 2018年03月07日 |
| L1800FD Engineering Data Sheet | KO | 1.23MB | 2018年03月07日 |
| L2800FD Engineering Data Sheet | KO | 1.24MB | 2018年03月07日 |
| L3600FD Engineering Data Sheet | KO | 1.23MB | 2018年03月07日 |
| L1300FD Engineering Data Sheet | PT | 1.14MB | 2018年03月07日 |
| L1800FD Engineering Data Sheet | PT | 1.15MB | 2018年03月07日 |
| L2800FD Engineering Data Sheet | PT | 1.14MB | 2018年03月07日 |
| L3600FD Engineering Data Sheet | PT | 1.14MB | 2018年03月07日 |
| L1300FD Engineering Data Sheet | RU | 1.19MB | 2018年03月07日 |
| L1800FD Engineering Data Sheet | RU | 1.21MB | 2018年03月07日 |
| L2800FD Engineering Data Sheet | RU | 1.2MB | 2018年03月07日 |
| L3600FD Engineering Data Sheet | RU | 1.19MB | 2018年03月07日 |
| L1300FD Engineering Data Sheet | TR | 1.14MB | 2018年03月07日 |
| L1800FD Engineering Data Sheet | TR | 1.14MB | 2018年03月07日 |
| L2800FD Engineering Data Sheet | TR | 1.15MB | 2018年03月07日 |
| L3600FD Engineering Data Sheet | TR | 1.16MB | 2018年03月07日 |
| 名称 | 语言 | 文件大小 | 日期 |
|---|---|---|---|
| L Series & C Series FIR-Drive Power Amplifiers Installation Manual | ZH | 7.5MB | 2018年03月05日 |
| L Series & C Series Bedienungsanleitung | DE | 7.24MB | 2018年03月05日 |
| L Series & C Series FIR-Drive Power Amplifiers Installation Manual | EN | 3.03MB | 2017年10月25日 |
| MARC 1.0.1 ReadMe | EN | 75KB | 2018年04月05日 |
| MARC Quick Start Guide | EN | 3.41MB | 2018年03月15日 |
| L Series & C Series Manual | ES | 7.26MB | 2018年03月05日 |
| L Series & C Series Guide | FR | 7.18MB | 2018年03月05日 |
| L Series & C Series FIR-Drive Power Amplifiers Installation Manual | IT | 7.26MB | 2018年03月05日 |
| L Series & C Series マニュアル | JA | 7.41MB | 2018年03月05日 |
| L Series & C Series 설치 매뉴얼 | KO | 7.28MB | 2018年03月05日 |
| L Series & C Series Manual | PT | 7.17MB | 2018年03月05日 |
| L Series & C Series FIR-Drive Power Amplifiers Installation Manual | RU | 7.28MB | 2018年03月05日 |
| L Series & C Series FIR-Drive Power Amplifiers Installation Manual | TR | 7.26MB | 2018年03月05日 |
| 名称 | 语言 | 文件大小 | 日期 |
|---|---|---|---|
| MARC FAQs | EN | 45KB | 2017年08月23日 |
| 名称 | 文件大小 | 日期 | |
|---|---|---|---|
| Multi Amplifier Remote Control (MARC) Software | EXE | 53.44MB | 2018年05月02日 |

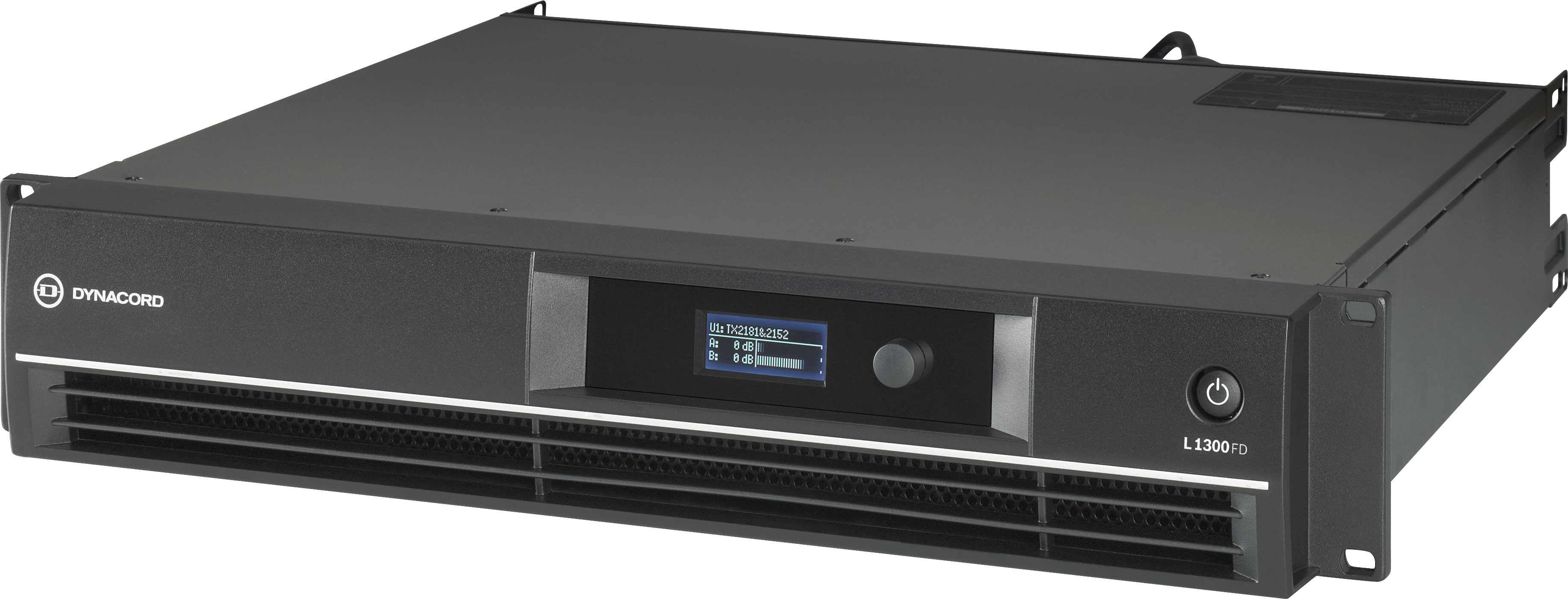

tl-3-6k2 persp left L1300FD
