Professional Audio Engineering

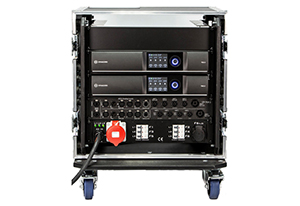

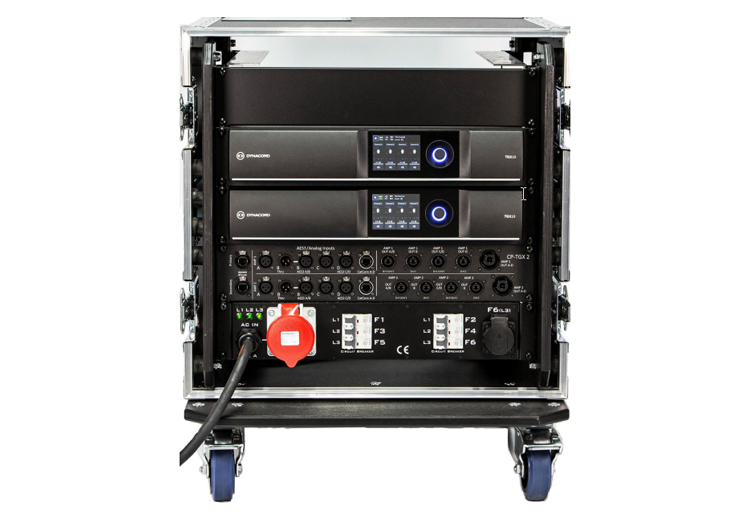

Custom System Rack TGX-2

8 x 2500W

  • 2 x 4-channel Dynacord TGX amplifier in 10U rack with connector panel for fullrange, 2-way, 3-way or 4-way speaker systems
  • 2 x 4 XLR inputs (line or AES3), 2 XLR through
  • 2 x 4 NL-4 outputs, configured in pairs for biamped systems, 2 NL8 (pins 1-4)
  • 2 Ethercon connectors for OMNEO (Dante/OCA) primary & secondary networks
  • Choice of TGX10: 4 x 2500 W/4Ohms or TGX20: 4 x 5000 W/4Ohms
  • Optional: power distribution, network switch(es), blank panels

Downloads

Technical Documentations
Name Language & Download
CSR TGX2 Engineering Data Sheet en
