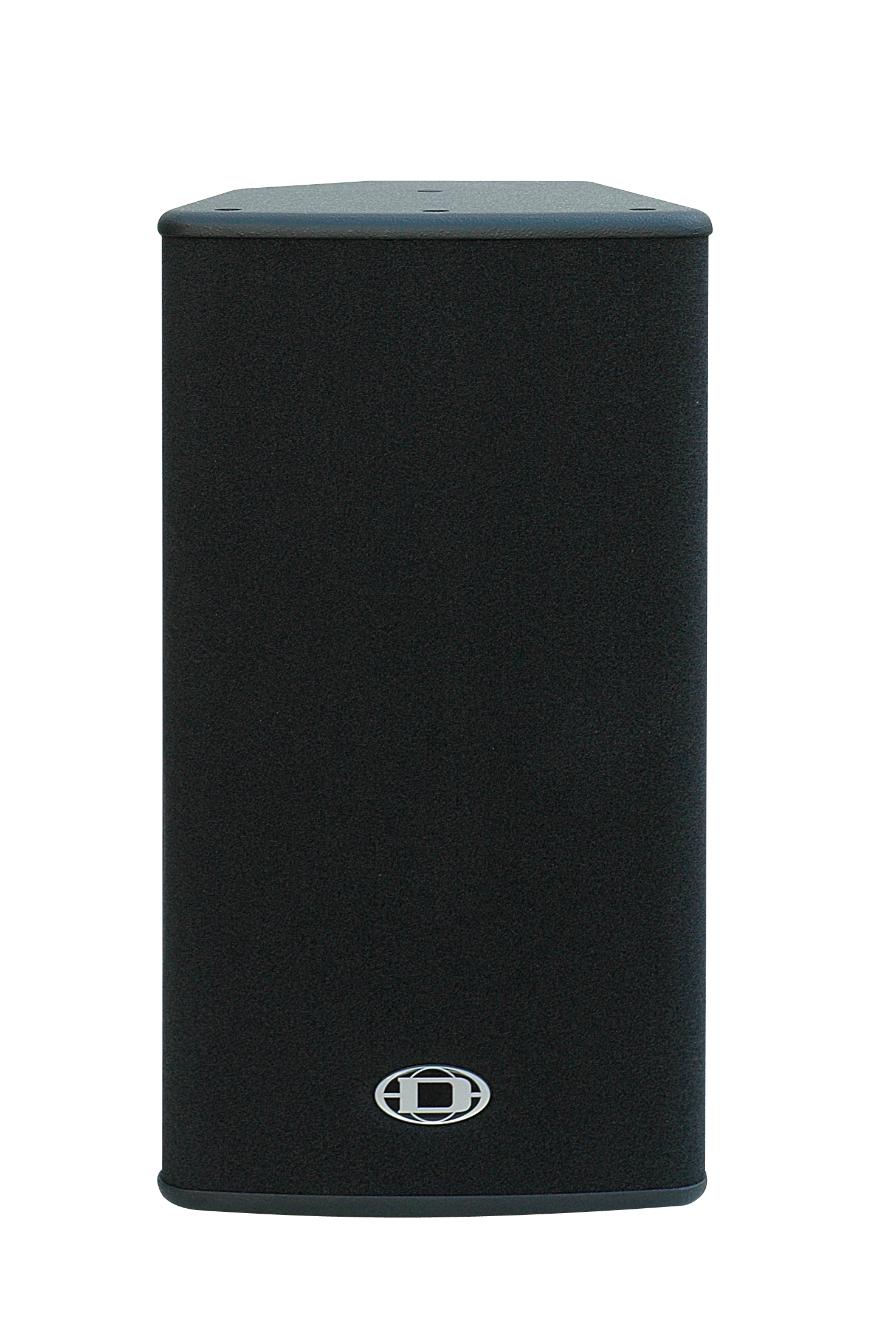

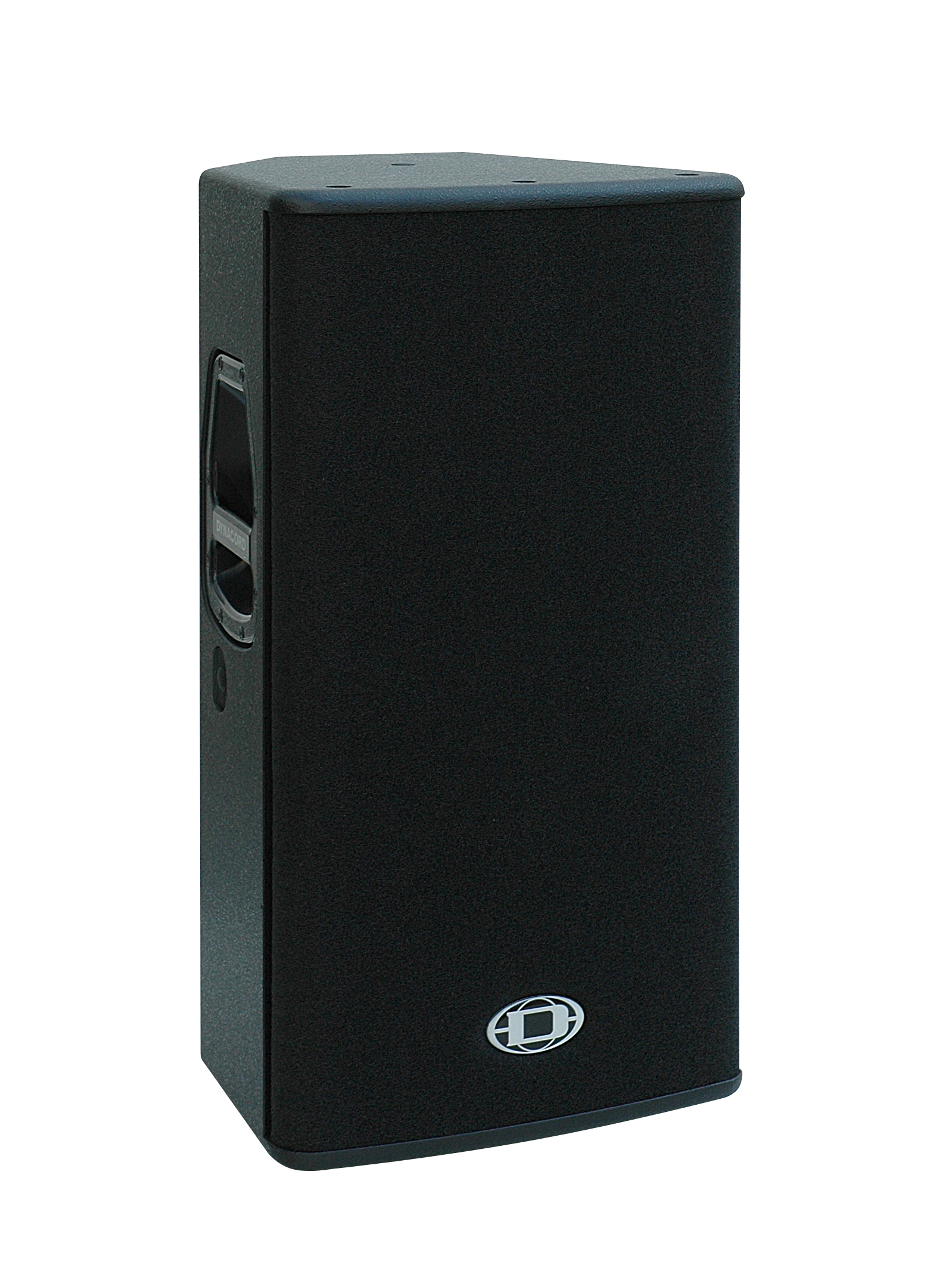

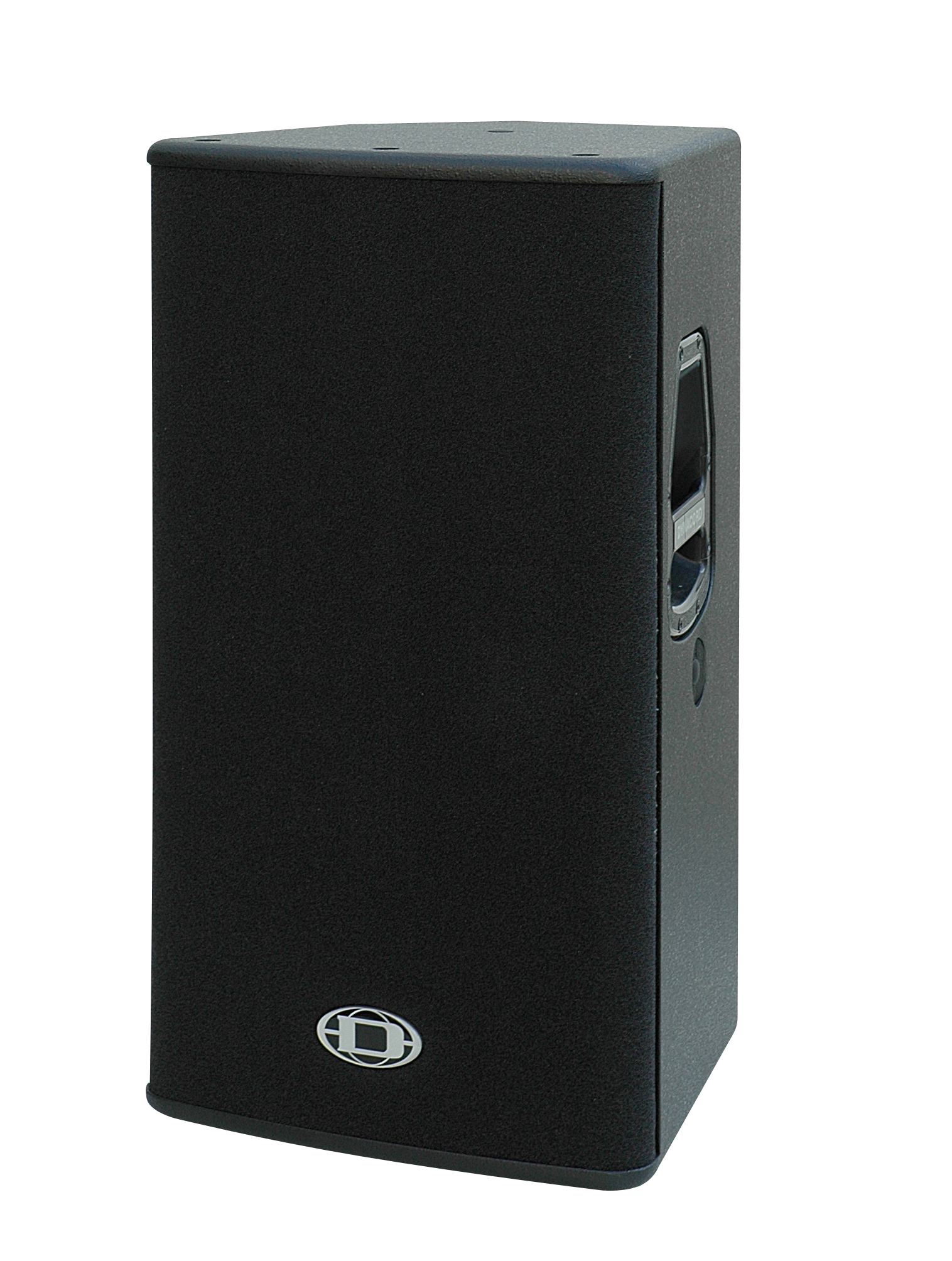

VL122 2‑way fullrange cabinet by Dynacord

VL122

2‑way fullrange cabinet

  • 12" Passive 2-Way High-Power Multi-Functional 2-Way Cabinet, 400W 8 Ohms
  • Rotatable CAD-optimized 90° x 45° Constant Directivity Horn
  • Switchable to Biamped Mode
  • 12" DND 12350 Woofer, 1.4" Neodymium  ND6 Driver
  • Voice Coil Tracking Protection
  • Also available in white

Todays sound reinforcement and public address applications require equipment that guarantee exceptional sound quality for a large variety of different events. Multi‑functionality is a must in order to be able to react on‑site to varying customer demands. The Dynacord VL122 2‑way fullrange cabinet has been optimized acoustically and mechanically for multi‑functional applications. With a variety of mounting accessories and decent cosmetics the VL122 is ideally suited to be used in most demanding applications

Specifications

Cabinet Full-Range
Configuration Passive 2-Way Switchable to biamped mode
Nominal impedance 8 Ω

Rated power RMS 400 Watts
Program power 800 Watts
Peak power 1600 Watts
SPL 2,83 V / 1m 1W / 8 Ω 99 dB
Max. SPL 1m (calculated with peak power) 131dB
Frequency range (-10dB) Full range 60Hz — 20kHz
Frequency range (-10dB) measured with H5000-RCM26 preset 50Hz — 20kHz
Coverage angle 1 kHz -6dB 90° * 45°
Passive crossover frequency 1.5kHz
Active crossover frequency 1.5kHz 24dB/Oct. Linkwitz-Riley, 1,5kHz Linear-Phase FIR
Voice coil tracking protection Yes
Component HIGH Order No. Electro-Voice ND6-8 Neodymium 361493
Component LOW Order No. DND 12350 366559

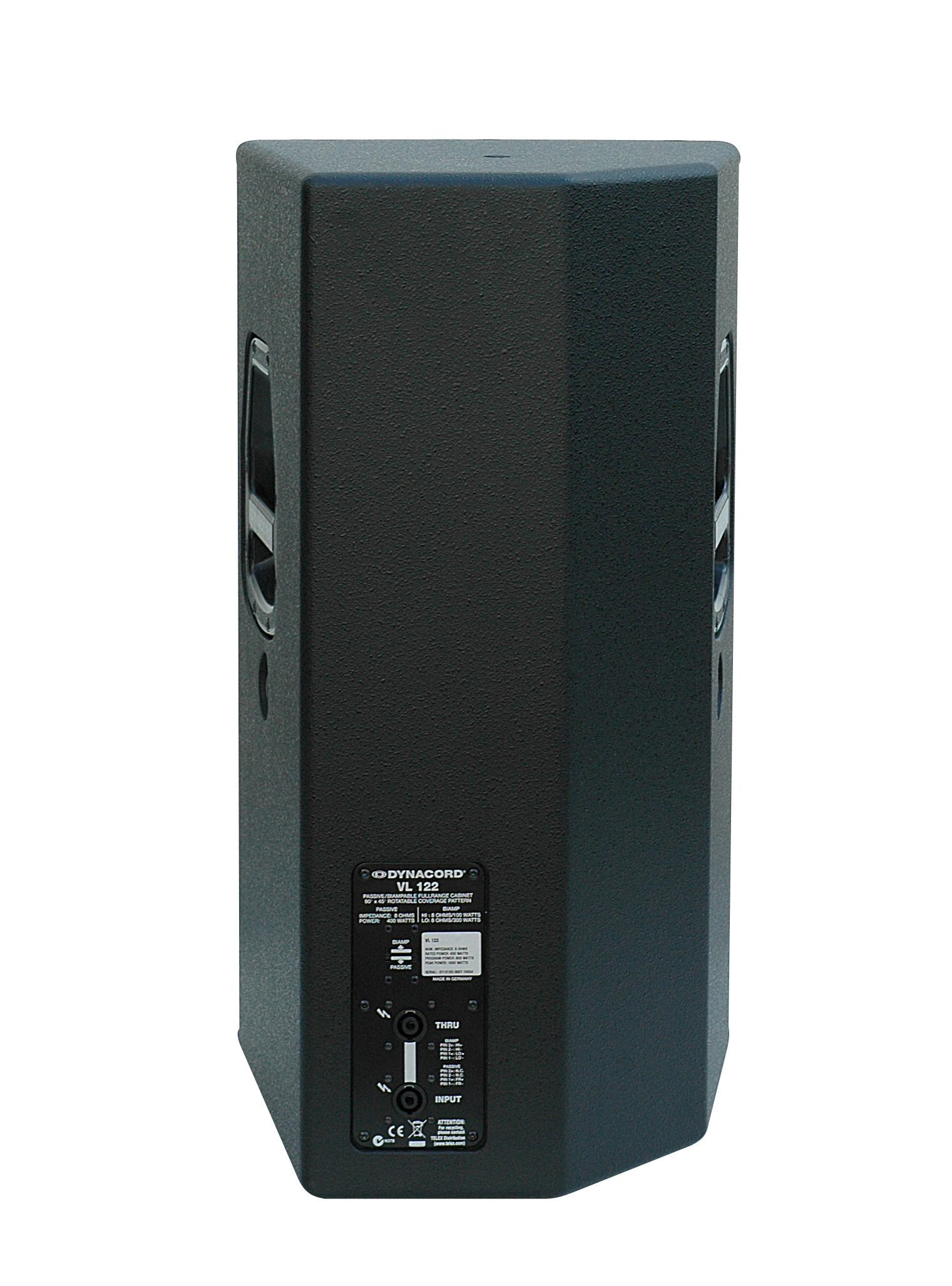

Connectors Full-Range 1+, 1-
Wired through 2+, 2-
Connectors Biamped Lo 1+, 1- Hi 2+, 2-
Wired through 1+, 1-, 2+, 2-
Connector model Speakon 2x NL4 MPR
Dimensions (WxHxD) 385x715x374mm (15.13" x 28.15" x 14.72")
Net weight 24kg (52.91 Ibs)
Shipping weight 26kg (57.31 Ibs)
Enclosure material Birch plywood
Finish Black, 2-component paint
Grille Powder coated steel, acoustic foam
Handles 2
Warranty 36 Months
