Vertical array
The loudspeaker cabinets of the vertical array series satisfy the highest standards in terms of acoustic performance, operational safety and reliability; they convince, furthermore, through the exemplary production quality synonymous with goods 'made in germany'.
Their attractive, yet very unobtrusive styling qualify them for deployment or installation in even the most elegant surroundings. Thanks to their aluminum housings, Vertical Array speakers are genuine lightweights, yet at the same time extremely robust. Vertical Array speakers are eminently suitable for live music applications; but in fixed installations, too, they represent a convincing solution for premium sound reinforcement concepts.
Models
PSD215
Powered 15" subwoofer
-
Weight Net
37.2
Max. SPL/1m (calc)
128
Coverage (Nominal -6 dB) H
360
Speaker Type
Subwoofer
Enclosure Material
Wood
Power Rating
1000
Woofer Size
18
Configuration
Powered 2-Channel
Passive Power Handling
1000
Components
1 x 15“
Dimensions
640 x 465 x 694
Freq. Range
34Hz - X-Over
Max. Amplifi er Output Capability
3200W
Max. Amplifier Output Capability
3200W
Rated power RMS
1000W TOP, 1000W SUB
Wheels
2.4kg
Powered/Passive
Powered
PSE215
Passive 15" subwoofer
-
Weight Net
31.6
Power Rating
2000
Max. SPL/1m (calc)
131
Woofer Size
18
Coverage (Nominal -6 dB) H
360
Configuration
Vented-Direct Radiator
Speaker Type
Subwoofer
Passive Power Handling
2000
Enclosure Material
Wood
Components
1 x 15“
Impedance
8Ω
Dimensions
640 x 465 x 694
Freq. Range
32Hz - 3.5kHz
Rated power RMS
500W
SPL 1 W / 1 m
98dB
Wheels
2.4kg
Powered/Passive
Passive
Sub 112
Direct radiating cabinet
-
Weight Net
20
Finish
2-Component Paint
Max. SPL/1m (calc)
124
Coverage (Nominal -6 dB) H
360
Speaker Type
Subwoofer
Enclosure Material
Birch Plywood
Shipping Weight
22kg
Nominal Impedance
8Ω
Power Rating
1600
Woofer Size
12
Configuration
Built-In Hi-Cut Filter
Passive Power Handling
1600
Castors
4
Component SUB
DND12S400
Connector model
Speakon NL4MPR
Connectors SUB
1+, 1-
Dimensions
445 x 380 x 445mm
Frequency range ( -10dB )
43Hz - 350Hz
Grille
Powder coated steel, Acoustic Foam
Handles
4
Passive crossover frequency
124Hz
Program power
800W
Rated power RMS
400W
SPL 2,83 V / 1m 1 W / 8 Ohm
92dB
Wired through
2+, 2-
Powered/Passive
Passive
TS 100
6" / 1" full‑range cabinet; black
-
Available Color
Black
Weight Net
7.1
Program power
300W
Rated power RMS
150W
SPL 1 W/1 m
94dB
Voice coil tracking protection
Halogen
X-Over Frequency
2200Hz
Powered/Passive
Passive
Max. SPL/1m (calc)
122
Coverage (Nominal -6 dB) H
90
Speaker Type
Full-Range
Enclosure Material
Aluminum
Suspension
4 x M6
Nominal Impedance
16
Power Rating
600
Woofer Size
6
Configuration
Passive 2-Way
Passive Power Handling
600
Component High
Electro-Voice DH-3
Component LOW
DND 6130-16
Contacts full-range
1+, 1-
Contacts wired through
1+, 1-
Dimensions
199 x 350 x 239.5mm
Frequency range (-10 dB)
80–20000Hz
Grille
Steel
Model
2x NEUTRIK speakON NL4
Nominal Coverage Angle
90° x 40°
TS 100W
6" / 1" full‑range cabinet; white
-
Available Color
White
Weight Net
7.1
Max. SPL/1m (calc)
122
Speaker Type
Full-Range
Enclosure Material
Aluminum
Suspension
4 x M6
Nominal Impedance
16
Power Rating
600
Woofer Size
6
Configuration
Passive 2-Way
Passive Power Handling
600
Component High
Electro-Voice DH-3
Component LOW
DND 6130-16
Contacts full-range
1+, 1-
Contacts wired through
1+, 1-
Dimensions
199 x 350 x 239.5mm
Frequency range (-10 dB)
80–20000Hz
Grille
Steel
Model
2x NEUTRIK speakON NL4
Nominal Coverage Angle
90° x 40°
Program power
300W
Rated power RMS
150W
SPL 1 W/1 m
94dB
Voice coil tracking protection
Halogen
X-Over Frequency
2200Hz
Powered/Passive
Passive
TS 200
2 x 6" / 1" full‑range cabinet; black
-
Available Color
Black
Weight Net
10
X-Over Frequency
2200Hz
Powered/Passive
Passive
Max. SPL/1m (calc)
128
Coverage (Nominal -6 dB) H
90
Speaker Type
Full-Range
Enclosure Material
Aluminum
Suspension
8 x M6
Nominal Impedance
8Ω
Power Rating
1200
Woofer Size
6
Configuration
Passive 2-Way
Passive Power Handling
1200
Component High
Electro-Voice DH-3
Component LOW
2x DND 6130-16
Contacts full-range
1+, 1-
Contacts wired through
1+, 1-
Dimensions
199 x 513.5 x 239.5mm
Frequency range (-10 dB)
90–20000Hz
Grille
Steel
Model
2x NEUTRIK speakON NL4
Nominal Coverage Angle
90° x 40°
Program power
600W
Rated power RMS
300W
SPL 1 W/1 m
97dB
Voice coil tracking protection
Halogen
TS 200W
2 x 6" / 1" full‑range cabinet; white
-
Available Color
White
Weight Net
10
Contacts full-range
1+, 1-
Speaker Type
Full-Range
Contacts wired through
1+, 1-
Dimensions
199 x 513.5 x 239.5mm
Enclosure Material
Aluminum
Frequency range (-10 dB)
90–20000Hz
Suspension
8 x M6
Grille
Steel
Nominal Impedance
8Ω
Model
2x NEUTRIK speakON NL4
Nominal Coverage Angle
90° x 40°
Program power
600W
Rated power RMS
300W
SPL 1 W/1 m
97dB
Voice coil tracking protection
Halogen
X-Over Frequency
2200Hz
Powered/Passive
Passive
Power Rating
1200
Woofer Size
6
Configuration
Passive 2-Way
Passive Power Handling
1200
Max. SPL/1m (calc)
128
Component High
Electro-Voice DH-3
Component LOW
2x DND 6130-16
Coverage (Nominal -6 dB) H
90
TS 400
4 x 6" / 1" full‑range cabinet; black
-
Weight Net
17
Enclosure Material
Aluminum
Impedance
4Ω
Power Rating
2400
Woofer Size
6
Configuration
Passive 2.5-Way
Passive Power Handling
2400
Components
4 x 6“ / 1“
Coverage (H x V)
90° x 40°
Dimensions
199 x 935 x 281
Freq. Range (-10 dB)
74Hz - 20kHz
Rated power RMS
600W
SPL 1 W / 1 m
97dB
Powered/Passive
Passive
Max. SPL/1m (calc)
131
Coverage (Nominal -6 dB) H
90
Speaker Type
Full-Range

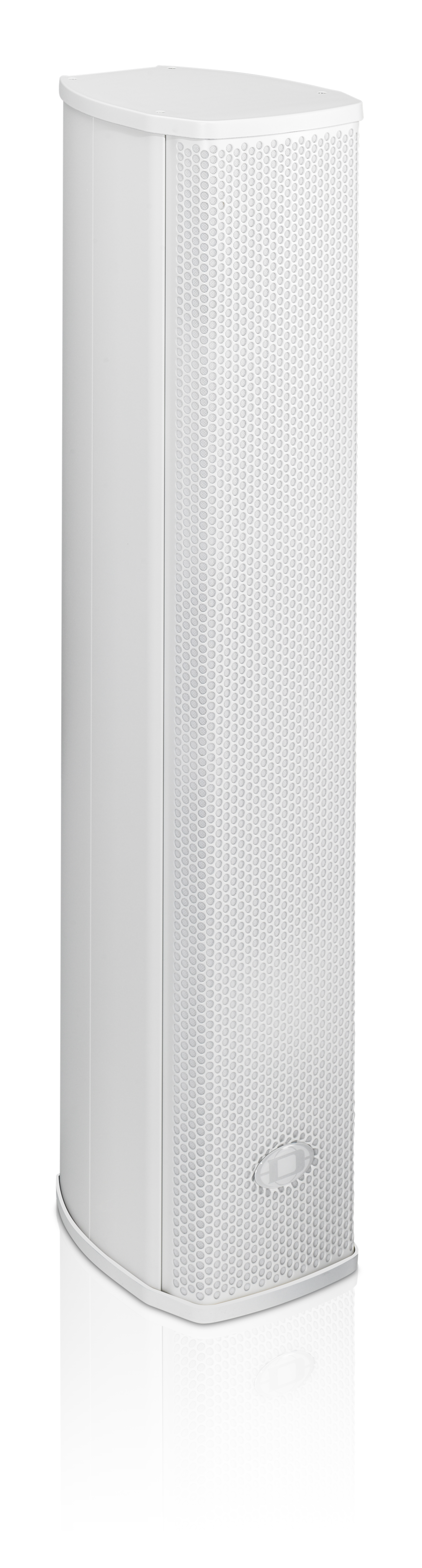

TS 400W
4 x 6" / 1" full‑range cabinet; white
-
Available Color
White
Weight Net
18
Nominal Coverage Angle
90° x 40°
Rated power RMS
600W
SPL 1 W/1 m
97dB
X-Over Frequency
2600Hz
Powered/Passive
Passive
Max. SPL/1m (calc)
131
Coverage (Nominal -6 dB) H
90
Speaker Type
Full-Range
Enclosure Material
Aluminum
Suspension
10x M6
Nominal Impedance
4Ω
Power Rating
2400
Woofer Size
6
Configuration
Passive 2.5-Way
Passive Power Handling
2400
Component High
Electro-Voice DH-3
Component LOW
4 x DND 6130-16
Connector model
2x NEUTRIK speakON NL4
Dimensions
199 x 935 x 281mm
Frequency range (-10 dB)
74–20000Hz
Grille
Steel
PSD215 |
PSE215 |
Sub 112 |
TS 100 |
TS 100W |
TS 200 |
TS 200W |
TS 400 |
TS 400W | |
Available Color | Black | White | Black | White | White | ||||
Weight Net | 37.2kg (82.01 lbs) | 31.6kg (69.67 lbs) | 20kg (44.09 lbs) | 7.1kg (15.65 lbs) | 7.1kg (15.65 lbs) | 10kg (22.05 lbs) | 10kg (22.05 lbs) | 17kg (37.48 lbs) | 18kg (39.68 lbs) |
Contacts full-range | 1+, 1- | 1+, 1- | 1+, 1- | 1+, 1- | |||||
Enclosure Material | Wood | Wood | Birch Plywood | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Power Rating | 1000W | 2000W | 1600W | 600W | 600W | 1200W | 1200W | 2400W | 2400W |
Max. SPL/1m (calc) | 128dB | 131dB | 124dB | 122dB | 122dB | 128dB | 128dB | 131dB | 131dB |
Speaker Type | Subwoofer | Subwoofer | Subwoofer | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range |
X-Over Frequency | 2200Hz | 2200Hz | 2200Hz | 2200Hz | 2600Hz | ||||
Nominal Coverage Angle | 90° x 40° | 90° x 40° | 90° x 40° | 90° x 40° | 90° x 40° | ||||
Program power | 800W | 300W | 300W | 600W | 600W | ||||
Contacts wired through | 1+, 1- | 1+, 1- | 1+, 1- | 1+, 1- | |||||
Impedance | 8ΩΩ | 4ΩΩ | |||||||
Woofer Size | 18mm (0.71") | 18mm (0.71") | 12mm (0.47") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") |
Coverage (Nominal -6 dB) H | 360° | 360° | 360° | 90° | 90° | 90° | 90° | 90° | |
Powered/Passive | Powered | Passive | Passive | Passive | Passive | Passive | Passive | Passive | Passive |
Rated power RMS | 1000W TOP, 1000W SUB | 500W | 400W | 150W | 150W | 300W | 300W | 600W | 600W |
SPL 1 W/1 m | 94dB | 94dB | 97dB | 97dB | 97dB | ||||
Dimensions | 640 x 465 x 694 | 640 x 465 x 694 | 445 x 380 x 445mm | 199 x 350 x 239.5mm | 199 x 350 x 239.5mm | 199 x 513.5 x 239.5mm | 199 x 513.5 x 239.5mm | 199 x 935 x 281 | 199 x 935 x 281mm |
Configuration | Powered 2-Channel | Vented-Direct Radiator | Built-In Hi-Cut Filter | Passive 2-Way | Passive 2-Way | Passive 2-Way | Passive 2-Way | Passive 2.5-Way | Passive 2.5-Way |
Frequency range (-10 dB) | 80–20000Hz | 80–20000Hz | 90–20000Hz | 90–20000Hz | 74–20000Hz | ||||
Passive Power Handling | 1000W peak | 2000W peak | 1600W peak | 600W peak | 600W peak | 1200W peak | 1200W peak | 2400W peak | 2400W peak |
Finish | 2-Component Paint | ||||||||
Suspension | 4 x M6 | 4 x M6 | 8 x M6 | 8 x M6 | 10x M6 | ||||
Voice coil tracking protection | Halogen | Halogen | Halogen | Halogen | |||||
Grille | Powder coated steel, Acoustic Foam | Steel | Steel | Steel | Steel | Steel | |||
Components | 1 x 15“ | 1 x 15“ | 4 x 6“ / 1“ | ||||||
Nominal Impedance | 8ΩΩ | 16Ω | 16Ω | 8ΩΩ | 8ΩΩ | 4ΩΩ | |||
Model | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | |||||
Freq. Range | 34Hz - X-Over | 32Hz - 3.5kHz | |||||||
Coverage (H x V) | 90° x 40° | ||||||||
SPL 1 W / 1 m | 98dB | 97dB | |||||||
Shipping Weight | 22kgkg | ||||||||
Wheels | 2.4kg | 2.4kg | |||||||
Freq. Range (-10 dB) | 74Hz - 20kHz | ||||||||
Castors | 4 | ||||||||
Component High | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | ||||
Component SUB | DND12S400 | ||||||||
Component LOW | DND 6130-16 | DND 6130-16 | 2x DND 6130-16 | 2x DND 6130-16 | 4 x DND 6130-16 | ||||
Connector model | Speakon NL4MPR | 2x NEUTRIK speakON NL4 | |||||||
Connectors SUB | 1+, 1- | ||||||||
Frequency range ( -10dB ) | 43Hz - 350Hz | ||||||||
Handles | 4 | ||||||||
Passive crossover frequency | 124Hz | ||||||||
SPL 2,83 V / 1m 1 W / 8 Ohm | 92dB | ||||||||
Max. Amplifi er Output Capability | 3200W | ||||||||
Wired through | 2+, 2- | ||||||||
Max. Amplifier Output Capability | 3200W | ||||||||
