WPN1

WPN1 networked wall panel controller

Summary & Images Specs Downloads & Support
  • Easy to read 1.77” color TFT display
  • Flexible configuration in SONICUE for systemwide control
  • Simple mounting in standard EU or NEMA single-gang wall-mount boxes
  • Convenient powering via PoE
  • Interchangeable front panel (white/black)

The WPN1 networked wall panel controller provides simplified operation and control of devices within the SONICUE Sound System Software ecosystem. With its 1.77” TFT color display and rotary encoder it can control MXE5 Matrix Mix Engines or IPX amplifiers system-wide. Configuration in SONICUE’s panel designer provides dedicated customization, from volume control in a single zone to multi-zone control with individual pin-protected menus. Combined with the colored display and support of characters for local languages, the WPN1 provides a customization level close to a touch panel controller, ensuring that users can interact effectively with their system.

Supported by MXE5s system logic, WPN1 can also take control for third-party devices like AV equipment or other devices in the building. WPN1 is powered via POE and requires a connection to a SONICUE Control server in the system, such as an MXE5.

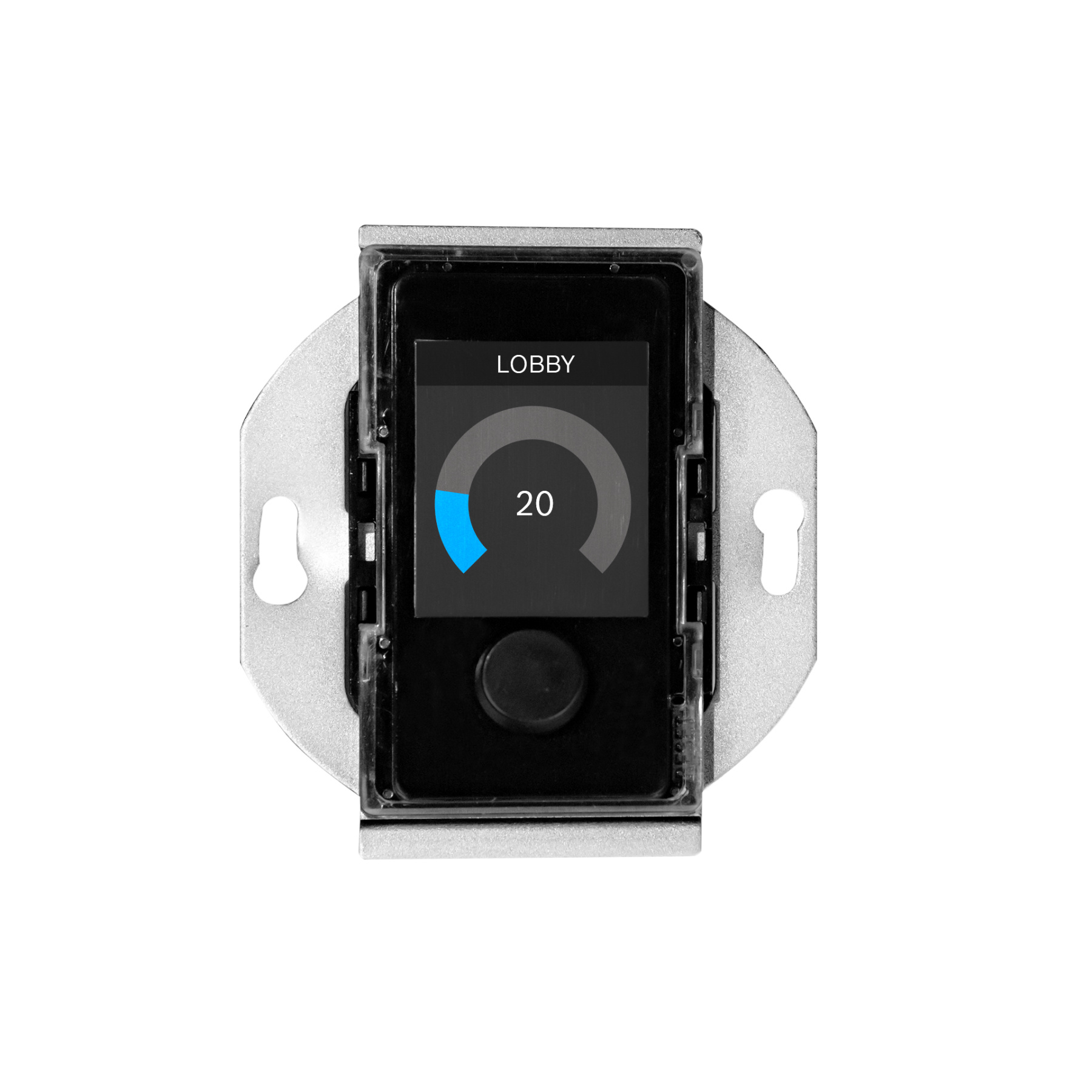

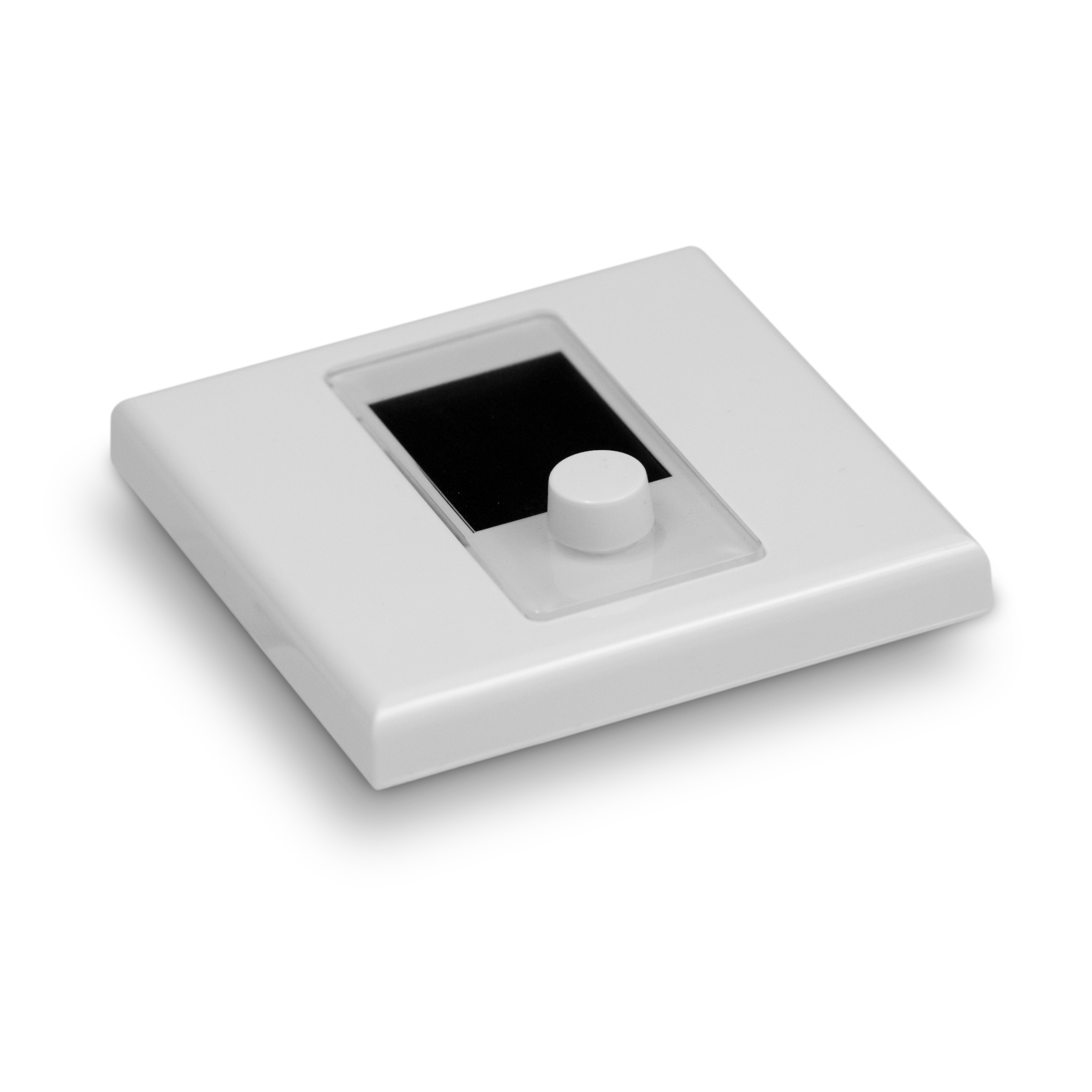

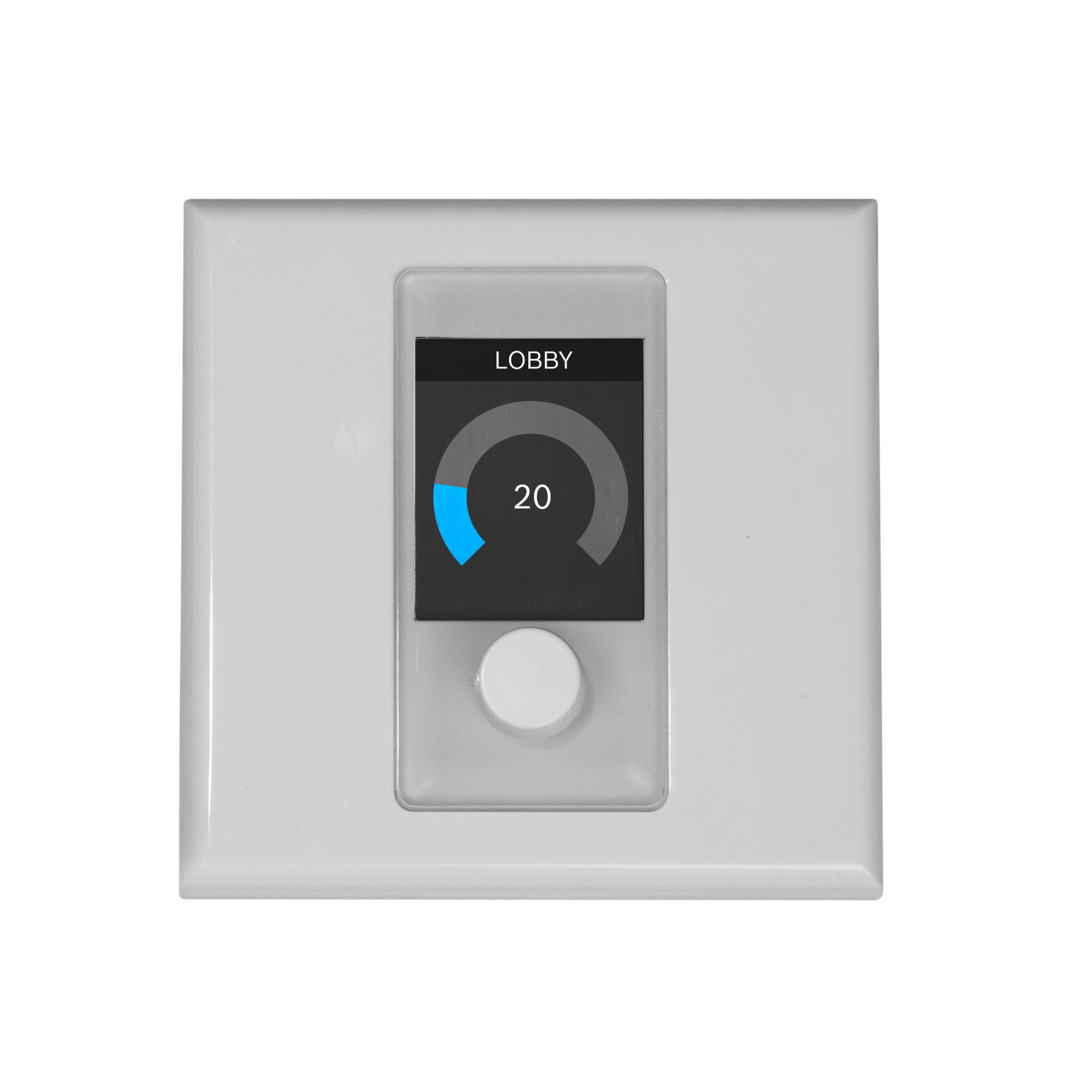

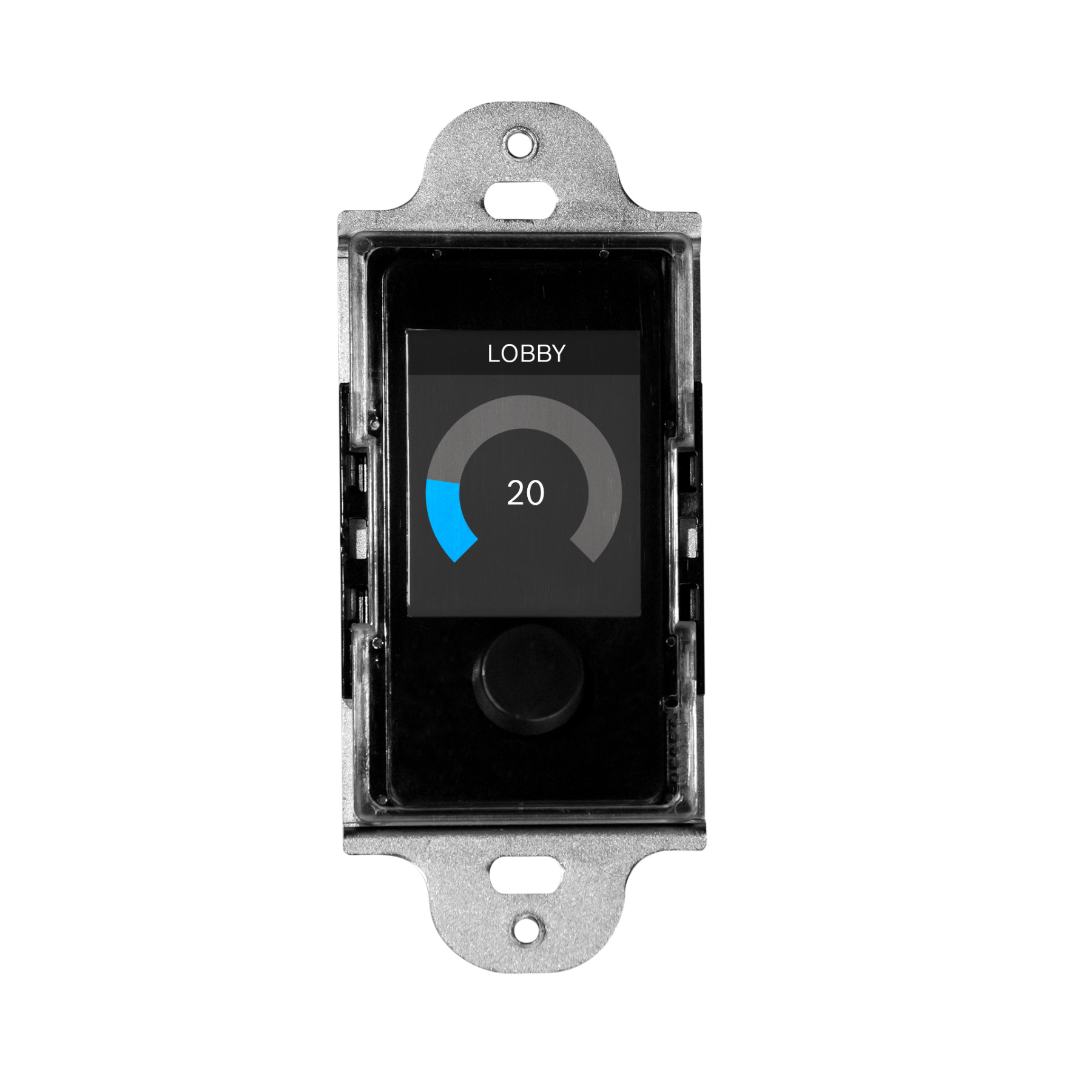

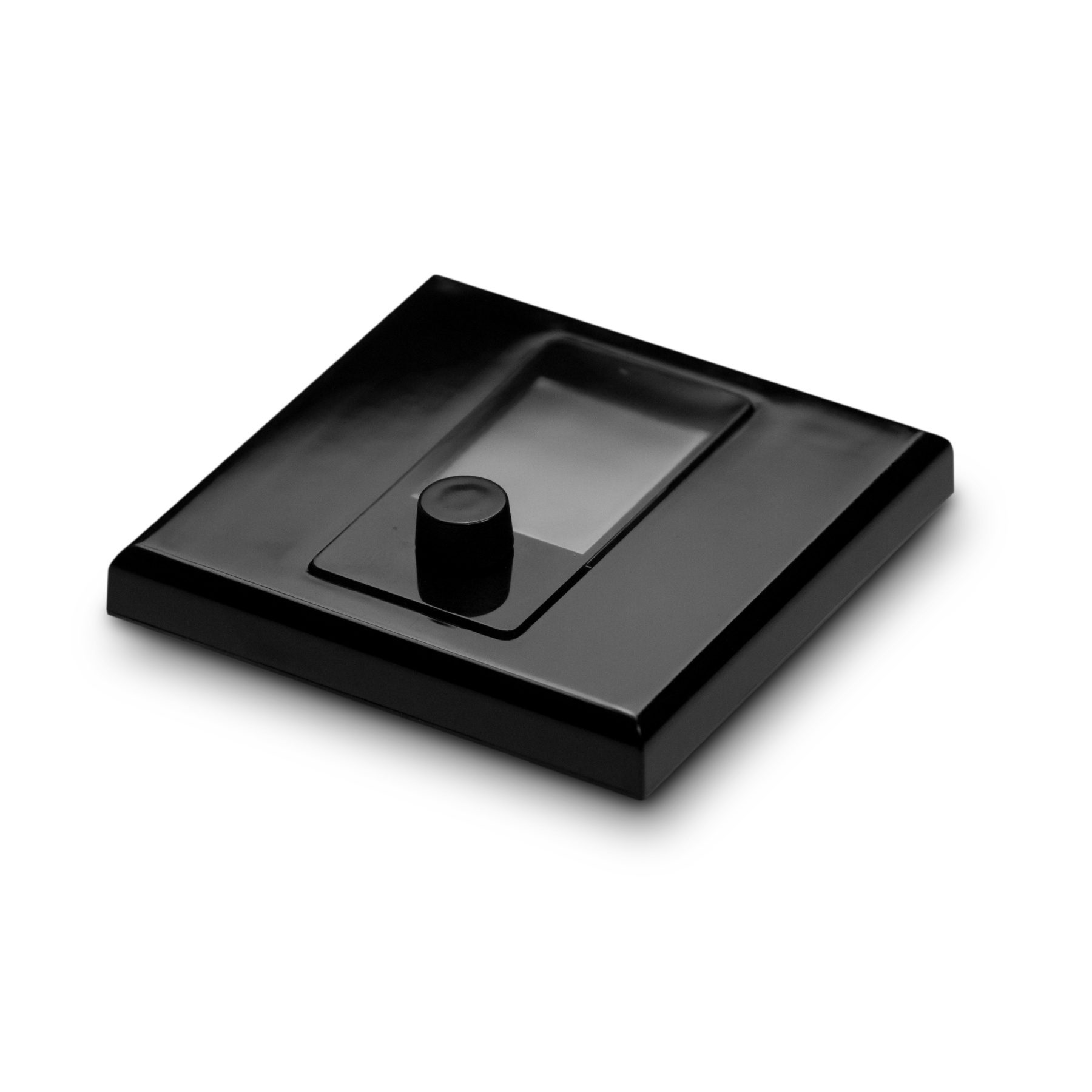

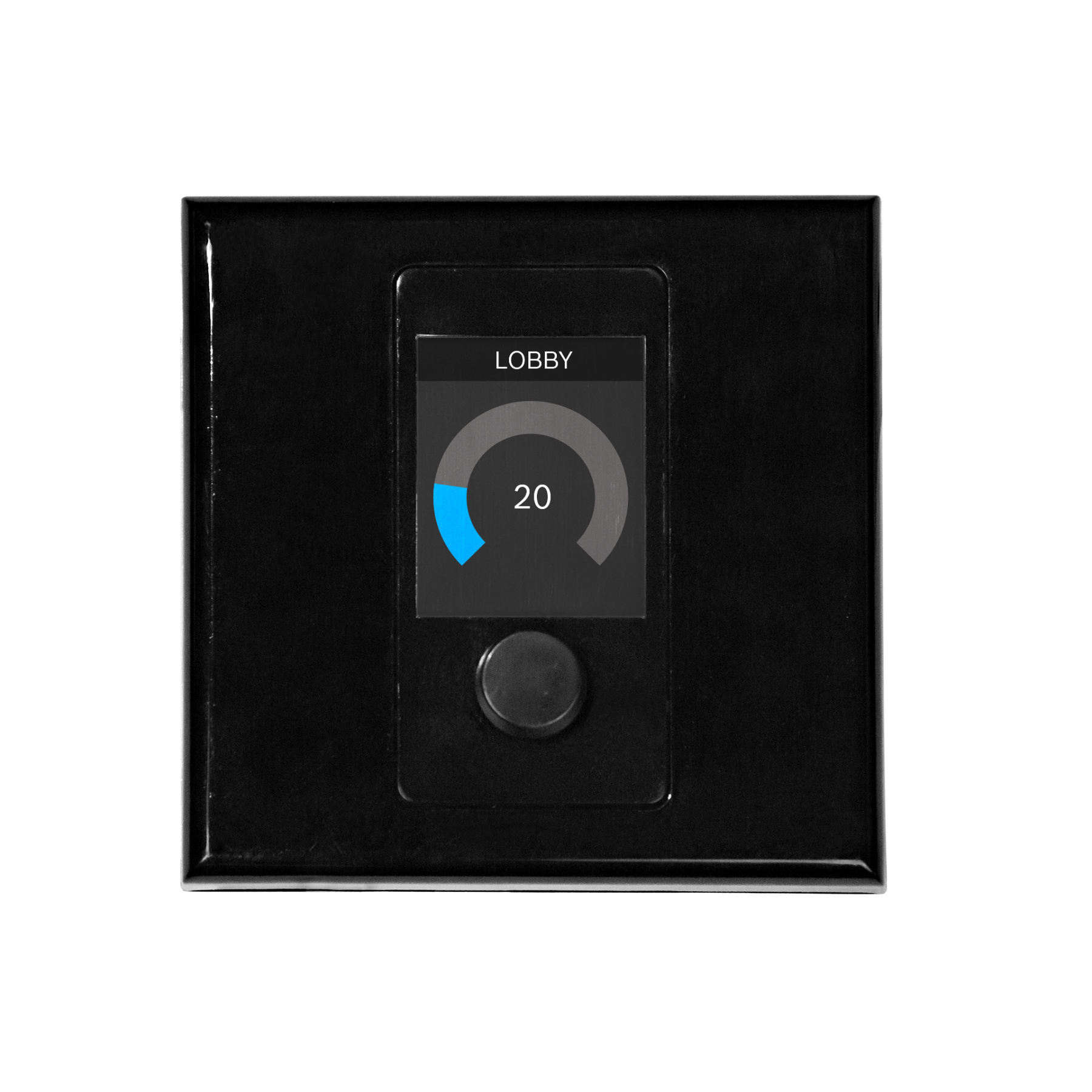

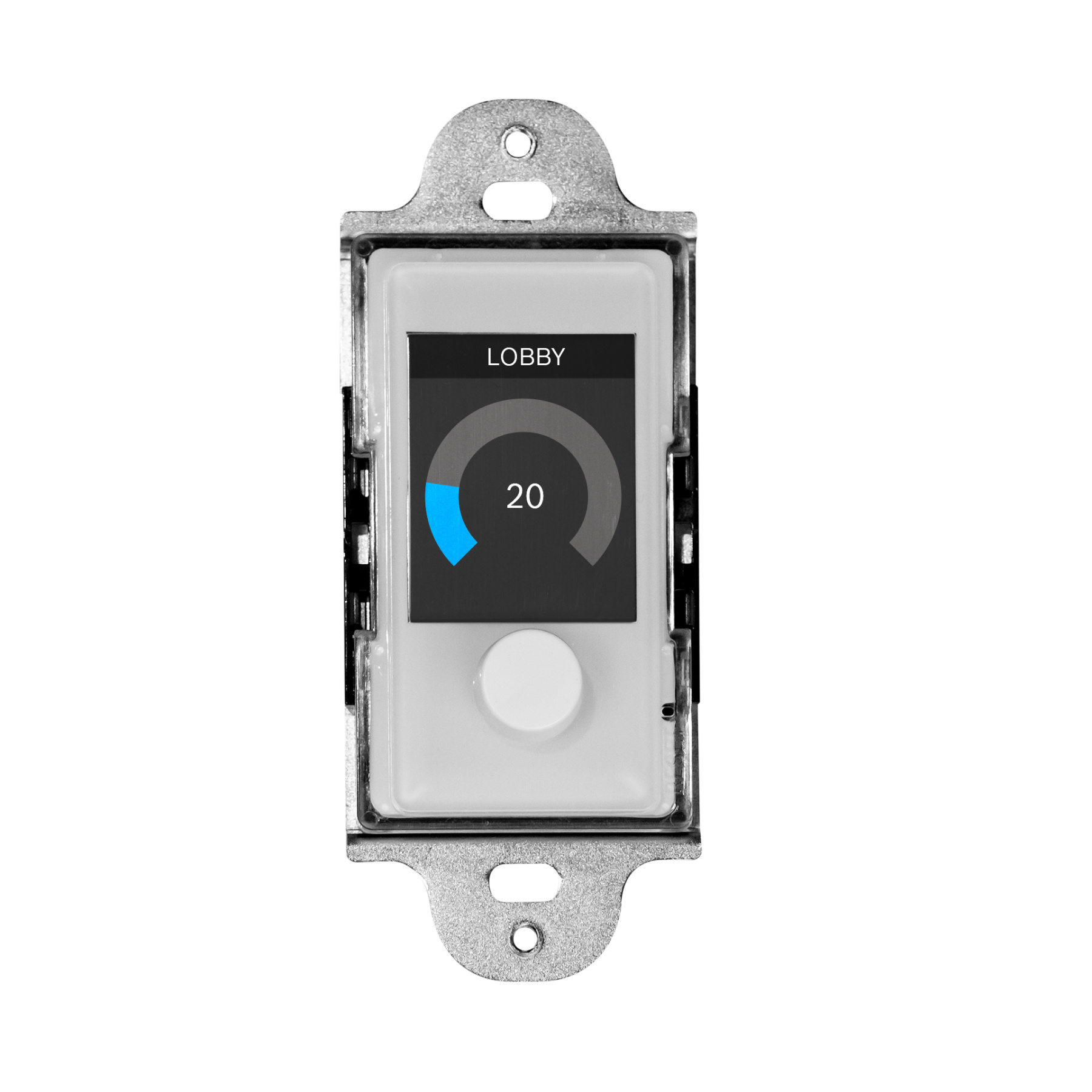

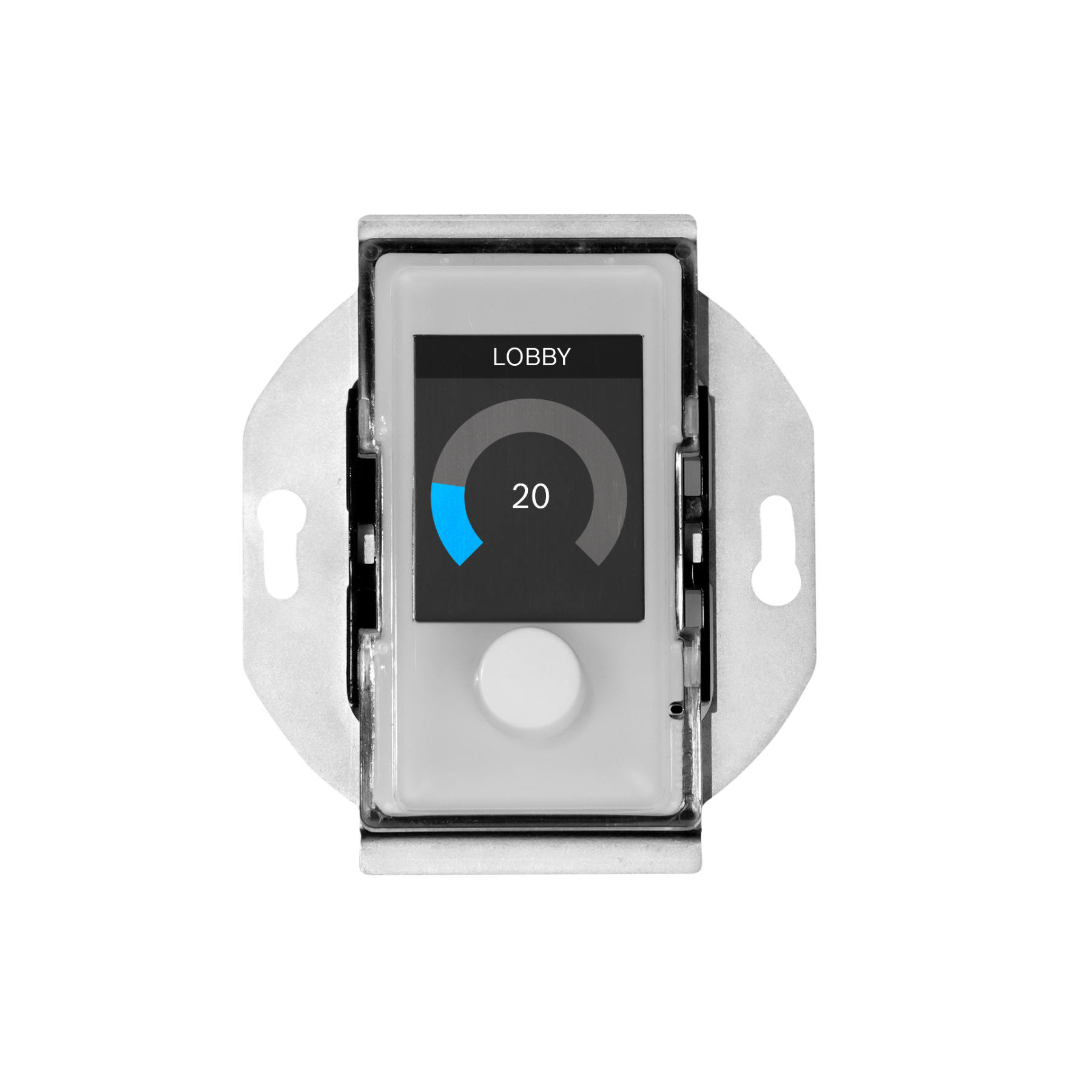

The WPN1 is available in two versions: WPN1-US fitting NEMA-style single-gang boxes and WPN1-EU for standard EU-type wall-mount boxes. Both versions ship with front plates and encoder in white and black, allowing the installer to make the call for the right color on site.

Specifications

Display type TFT
Display size (in) 1.77 in
Display resolution (pixels) 160 x 128 pixels
Brightness 480 cd/m2
Network Ethernet 100BASE-TX, 1000BASE-T
PoE input PoE IEEE 802.3af

PoE nominal voltage (VDC) 48 VDC
Mounting type Wall-mounted
Required box size (mm) 62 mm diameter, ≥60 mm deep
Software compatibility SONICUE (≥1.2.4)
SONICUE Control serverMXE51
Color White, changeable to black
Power consumption (W) ≤ 1.30 W
Operating temperature (°C) 0 °C – 45 °C
Operating temperature (°F)32 °F – 113 °F
Operating relative humidity, noncondensing (%)15% – 93%
WPN1-EU (incl. wall plate)
Dimension (H x W x D) (mm) 86.1 mm x 86.1 mm x 47.2 mm
Weight (g) 93 g
Shipping weight (g) 253 g
WPN1-US (w/o wall plate)
Dimension (H x W x D) (mm)107.8 mm x 44.0 mm x 47.2 mm
Dimension (H x W x D) (inch)4.2 in x 1.7 in x 1.9 in
Weight (g)94 g
Weight (lb) 0.21 lb
Shipping weight (g)212 g
Shipping weight (lb)0.47 lb
1Or future SONICUE Control server devices.
