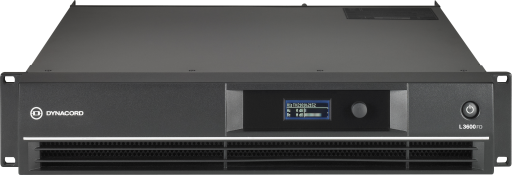

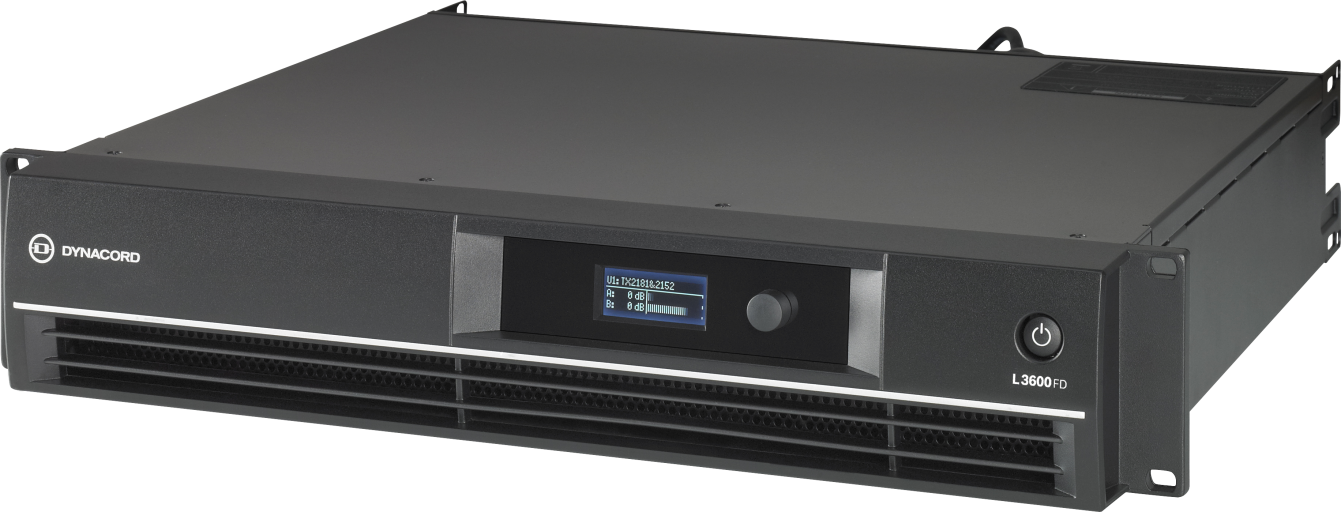

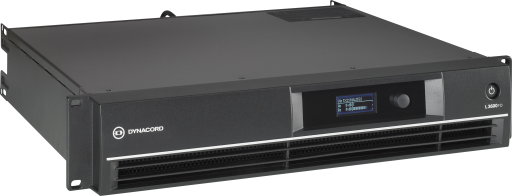

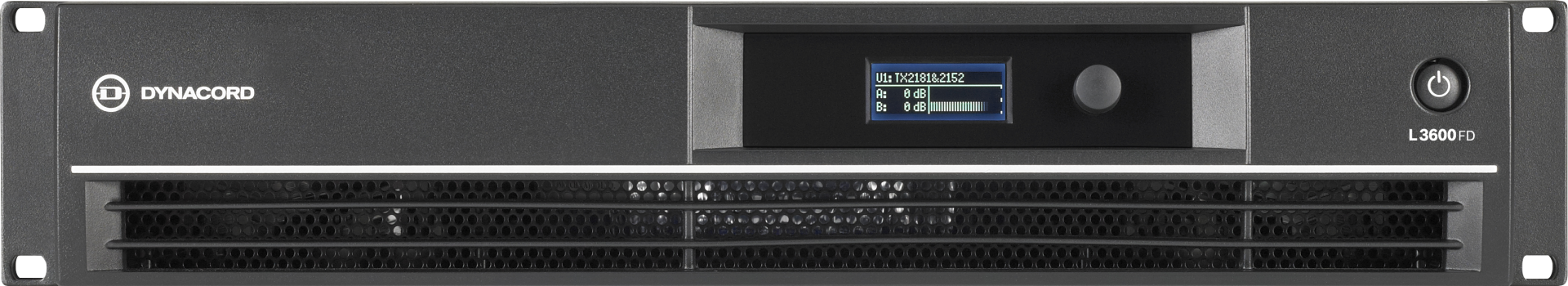

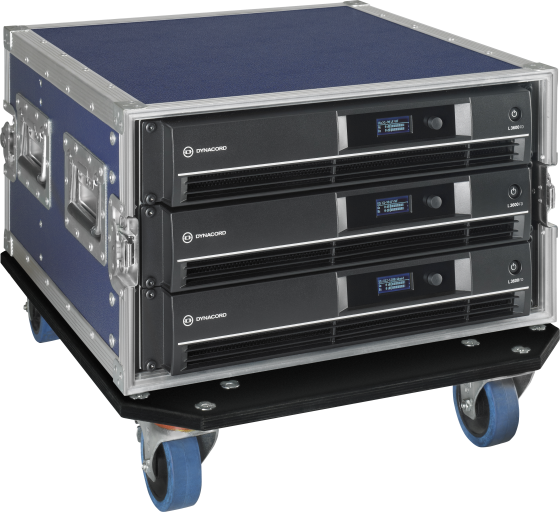

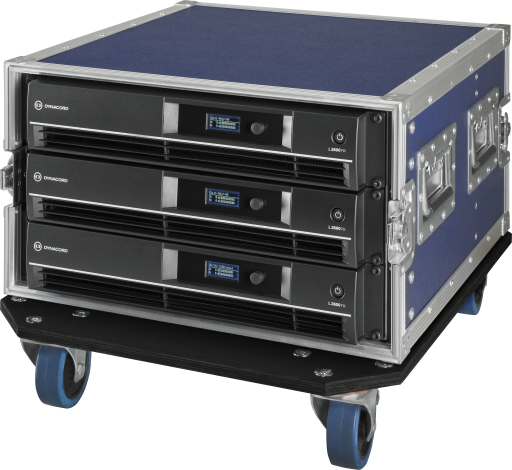

L3600FD

DSP 2 x 1.800 W Leistungsverstärker für Live-Musik-Anwendungen

Summary & Images Specs Downloads & Support

Professionelle DSP-Verstärker für Live-Anwendungen
Integrierte Lautsprecher-Signalverarbeitung mit FIR-Drive Technologie
Marktführende Audioperformance und grundsolide Zuverlässigkeit
Intuitive, einfache Konfiguration und Betrieb mit SONICUE Sound System Software (mit Firmware 2.0)

Technische Daten

Load Impedance	2Ω 2.7Ω 4Ω 8Ω
Maximum Output Power, Single Channel	2Ω= 3200W; 2.7Ω= 2700W; 4Ω= 1800W; 8Ω= 950W
Maximum Output Power, Dual Channel	2Ω= 3000W; 2.7Ω= 2500W; 4Ω= 1700W; 8Ω= 900W
Technische Daten

Maximum Output Power, Bridged	4Ω= 6000W; 8Ω= 3400W
Maximum RMS Voltage Swing, THD = 1%, 1kHz	90.6V
Voltage Gain ref.1kHz	32.0dB
IMD-SMPTE, 60 Hz, 7 kHz	<0.1%
DIM 30	<0.05% (3.15 kHz, 15 kHz)
Maximum Input Level	+21dBu
Crosstalk	< -80dB (ref 1 kHz, at 100 W/4 Ω)
Frequency Response	10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced	20kΩ
Signal-to-Noise Ratio (A-weighted)	>109dB
Output Noise , A-weighted	<-68dBu
Output Stage Topology	Class H
Power Requirement	240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption	850 W (⅛ Maximum Output Power @4Ω)
Protection	Audio limiters, high temperature, DC, HF; Back-EMF, Peak current limiters, Inrush current; limiters, Turn on delay
Cooling	Front-to-rear, 3-stage-fans
Safety Class	I
Available Color	Black
Height	88mm (3.46")
Width	483mm (19.02")
Depth	462.4mm (18.2")
Weight Net	18.2kg (40.12 lbs)
Signal Processing	FIR filters, audio limiters, output and array delay, 10-band user PEQ, 5-band array PEQ** per channel, load impedance
Total Harmonic Distortion	<0.05% (1200 W/4 Ω MBW = 80 kHz, 1 kHz)
Remote control	SONICUE sound system software (requires firmware 2.0)
Mains Fuse	240 V/230 V= T10AH; 120 V/100 V= T20AH
Operating Temperature Range	+5°C to +40°C (40°F to +105°F)
