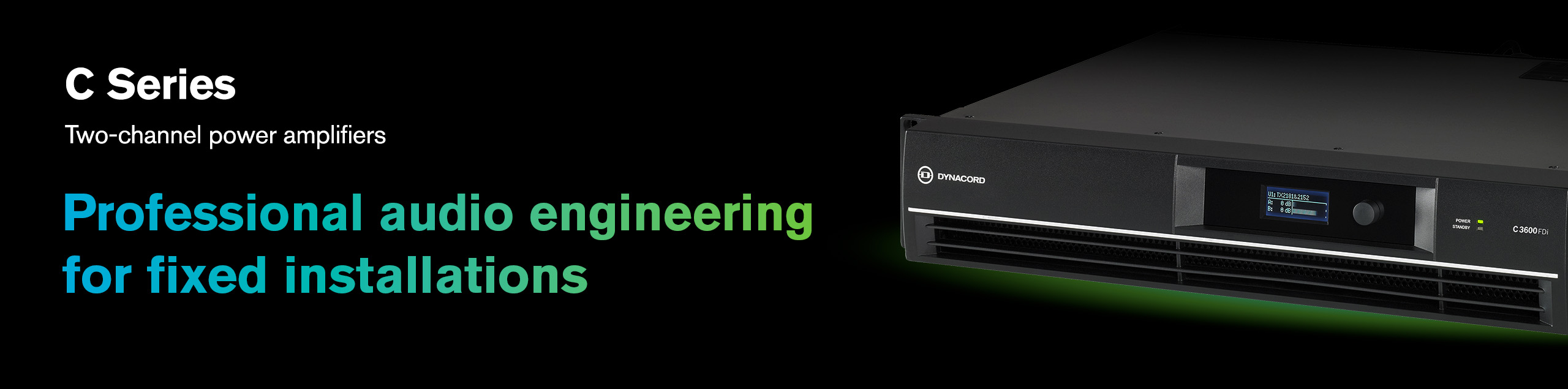

C Series 2-Channel Power Amplifiers
Two-channel power amplifiers for fixed install
- SONICUE provides enhanced DSP functionality to 10-band PEQs and a dedicated array processing section
- Rock solid amplifier technology engineered in Germany
- Extremely powerful, proven audio performance
- Engineered for constant stability at 2 ohms
- Low and high impedance outputs and remote GPIO control
- Highly efficient standby power mode reduces running costs and power consumption up to 90%.
- Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
- High-performance, bulletproof voltage handling
- Advanced FIR drive to optimize original factory loudspeaker settings yielding a level of unparalleled performance
Dynacord’s C Series power amplifiers are designed for permanent installation applications, to provide background or live music in venue including bars, churches, restaurants, sports facilities, and performing arts centers.
C Series power amplifiers also feature an exciting new industrial design. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions. Four different models per series are available, with a total output power ranging from 1300 W to 3600 W at 4 ohms.
All models are also suitable for direct drive applications with 70V and/or 100V speaker lines, providing high flexibility for a variety of install scenarios. In addition, the amplifiers feature Euroblock connectors for convenient wiring, remote power-on delay, and GPIOs to interface with third-party controls. The efficient standby power mode reduces running costs and power consumption by up to 90%, leading to a very low total cost of ownership.
Like all Dynacord amplifiers, the C Series also offers high quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. SONICUE Sound System Software supports C Series, elevating them to the top league of professional amplifiers. The feature-rich onboard DSP gets a boost under SONICUE with 10 band PEQs and a dedicated array processing section. C Series are also equipped with FIR drive, a premium feature you find usually only with tour grade amplifiers, yielding a level of performance unheard of at this price point.
Models
 |
 |
 |
 | |
C1300FDi |
C1800FDi |
C2800FDi |
C3600FDi | |
| Maximum Output Power, Single Channel | 2Ω=1100W; 2.6Ω= 950W; 4Ω= 660W; 8Ω= 350W (Load Impedance) High impedance = 70V Operation = 1 x 625W (Bridge Mode) | 2Ω=1600W; 2.6Ω= 1300W; 4Ω= 950W 8Ω= 480W | 2Ω= 2300W; 2.7Ω= 2000W; 4Ω= 1400W; 8Ω= 700W; | 2Ω= 3200W; 2.7Ω= 2700W; 4Ω= 1800W; 8Ω= 950W |
| Maximum Output Power, Dual Channel | 2Ω=1000W; 2.6Ω= 850W; 4Ω= 600W; 8Ω= 320W (Load Impedance) | Load Impedance= 2Ω=1400W; 2.6Ω=1200W; 4Ω=850W; 8Ω=450W; High Impedance= 70V Operation=2x 2500W (-1.5 dB); | Load Impedance= 2Ω=2200W; 2.7Ω=1800W; 4Ω=1300W; 8Ω=650W; High Impedance= 70V Operation=2x 1250W; 100V Operation=2x 2500W (-3.0 dB) | Load Impedance= 2Ω=3000W; 2.7Ω=2500W; 4Ω=1700W; 8Ω=900W; 100 V Operation=2 x 2500 W |
| Maximum Output Power, Bridged | High Impedance= 2Ω & 2.6Ω=1x 600W; Load Impedance= 4Ω=2000W; 8Ω=1200W; | Load Impedance= 4Ω=2800W; 8Ω=1700W; 100V Operation=1x 1250W | Load Impedance= 4Ω=4400W; 8Ω=2600W; High Impedance= Not recommended | Load Impedance= 4Ω=6000 W; 8Ω=3400 W; High Impedance= Not Recommended |
| Maximum RMS Voltage Swing, THD = 1%, 1kHz | 55.3V | 65.1V | 78.8V | 90.6V |
| Voltage Gain ref.1kHz | 32.0dB | 32.0dB | 32.0dB | 32.0dB |
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | <0.1% | <0.1% | <0.1% |
| DIM 30 | < 0.05% | <0.05% | <0.05%% | <0.05% |
| Maximum Input Level | +21 dBu | +21dBu | +21dBu | +21 dBu |
| Crosstalk | < -80dB | < -80dB | < -80dB | < -80dB |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) | 10 Hz to 21 kHz (±1 dB) | 10 Hz to 21 kHz (±1 dB) | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance, active balanced | 20kΩ | 20kΩ | 20kΩ | 20kΩ |
| Signal-to-Noise Ratio (A-weighted) | >104dB | >105dB | >107dB | >109dB |
| Output Noise , A-weighted | < -68dBu | <-68dBu | <-68dBu | <-68dBu |
| Output Stage Topology | Class AB | Class AB | Class H | Class H |
| Power Requirement | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption | 550 W | 700W | 700W | 850 W |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans | Front-to-rear, 3-stage-fans | Front-to-rear, 3-stage-fans | Front-to-rear, 3-stage-fans |
| Safety Class | I | I | I | I |
| Available Color | Black | Black | Black | Black |
| Height | 88mm (3.46") | 88mm (3.46") | 88mm (3.46") | 88mm (3.46") |
| Width | 483mm (19.02") | 483mm (19.02") | 483mm (19.02") | 483mm (19.02") |
| Depth | 462.4mm (18.2") | 462.4mm (18.2") | 462.4mm (18.2") | 462.4mm (18.2") |
| Weight Net | 12.9kg (28.44 lbs) | 15.2kg (33.51 lbs) | 16.2kg (35.71 lbs) | 18.2kg (40.12 lbs) |
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance |
| Total Harmonic Distortion | < 0.05% | <0.05% | < 0.05% | <0.05% |
| Remote control | SONICUE sound system software (requires firmware 2.0) | SONICUE sound system software (requires firmware 2.0) | SONICUE sound system software (requires firmware 2.0) | SONICUE sound system software (requires firmware 2.0) |
| Operating Temperature Range | +5°C to +40°C (40°F to +105°F) | +5°C to +40°C (40°F to +105°F) | +5°C to +40°C (40°F to +105°F) | +5°C to +40°C (40°F to +105°F) |
| High Impedance Operation | 70V (in bridged mode) | 70 V (dual channel), 100 V (bridged) | 70 V, 100 V (dual channel & bridged) | 70V Operation & 100V Operation |
| Direct Drive Load Capability | Dual Channel: Not Available Bridge Mode 70V Operatoin: 1 x 625 w (0.0 dB) Bridge Mode 100V Operation: Not Available | Dual Channel 70V Operation: 2 x 1250 W (-1.5 dB) Dual Channel 100V Operation: Not available Bridge Mode 70V Operation: Not recommended Bridge Mode 100V Operation: 2 x 1250 W (-1.5 dB) | Dual Channel 70V Operation: 2 x 1250 W (0.0 dB) Dual Channel 100V Operation: 2 x 2500 W (-3.0 dB) Bridge Mode 70V Operation: Not recommended Bridge Mode 100V Operation: 1 x 1250 W (0.0 dB) | Dual Channel 70V Operation: Not recommended Dual Channel 100V Operation: 2 x 2500 W (-1.5 dB) Bridge Mode: Not recommended |
| Remote Power ON/GPIO | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection | |
| Learn More | Learn More | Learn More | Learn More |
Show more specs
