FX12-PRO Medium longthrow mid/high‑ frequency cabinet in coaxial design by Dynacord

FX12-PRO

Medium longthrow mid/high‑ frequency cabinet in coaxial design

  • 12" 350W 2-way horn-loaded, coaxial, mid/high cabinet
  • Neodymium ND6 driver
  • Neodymium ND12A mid transducer
  • Extremely high sensitivity, 106 dB SPL 1W/1m
  • Voice coil tracking protection

The Dynacord FX12‑PRO is a medium longthrow mid/high‑ frequency cabinet in coaxial design. It can be used also without subwoofer cabinets in high‑quality sound reinforcement system for speech for medium‑throw distances. The recommended active x‑over frequency is 140 Hz, 18 dB/oct. Butterworth. In the lo‑mid range an ND 12 A Electro‑Voice loudspeaker chassis works into a conical horn. The 80x40 Constant Directivity horn, driven by an Electro‑Voice 1.4" ND 6 neodymium driver delivers the frequency range above 1kHz. The FX12‑PRO is equipped with a passive x‑over (1kHz, 18 dB/oct). Every transducer is protected against thermal overload with an electronic circuit called voice coil tracking protection. This circuit senses the terminal voltages of the transducers and simulates the thermal behaviour of the tranducers’ voice coils. In case of a potential thermal overload the power applied to the speakers is reduced to a safe level. Power amps up to 1200W 8 Ohms can be used in order to have maximum dynamic range without the danger of thermal overload in non‑controlled situations. The voice coil tracking protection exhibits ‘soft’ switching characteristics, so no annoying clicks or pops are audible. The circuitry automatically resets after the voice coil temperature has reached a safe value.

Specifications

Nominal impedance 8 Ω
Power handling Rated power RMS 350 W
Program power 700 W
Peak power 1400 W

Sound pressure level SPL 1 W/1 m 106 dB
Maximum SPL (1 meter) 137 dB
Frequency range (-10 dB), measured with Xa 4000 120–19000 Hz
Coverage angle nominal, 1 kHz,-6 dB (measured with Xa 4000) H 80° ✕ V 40°
Crossover frequency 1000 Hz
Recommended active crossover frequency to subwoofer 140 Hz, 18 dB/oct. Butterworth
Voice coil tracking protection Separate circuits for lo-mid & high
Transducer High frequency ND6-8/CDH 8040-14
Low-mid frequency ND12A

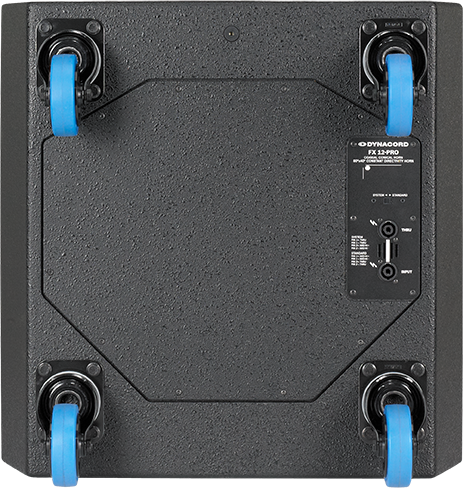

Audio sockets Model 2 ✕ NEUTRIK speakON NL4MPR
Contacts “normal” 1+/1-
Contacts “system” 2+/2-
Enclosure material 15 mm birch plywood
Enclosure finish Heavy-duty structured lacquer
Color Black (RAL 9005, jet black)
Grille Powder coated steel
Handles 2
Castors 4
Product dimensions (Width ✕Height ✕ Depth) 594 ✕ 601 ✕ 808 mm
Net weight 49.5 kg
Shipping weight 54.6 kg
NEUTRIK, speakON & etherCON are registered trademarks of Neutrik AG.
