XA2-PRO

Hornloaded system package

  • Hornloaded System for high SPL applications
  • Plug & Play operation with system amplification
  • Optional Flying bracket

XA2-PRO is a complete plug and play system for applications that require Hi-SPL output, flexibility in set-up and easy set-up and transportation. The XA2-PRO system is combines the advantages of the previous XA2 with a new, fresh look due to a heavy-duty structured lacquer surface and new solid-steel front grilles.

To obtain the highest possible on-axis sound pressure levels, the XA2-PRO features a complete horn-loaded system design. Ideal for applications like: top-40 bands, larger weddings, open air events or mobile DJ applications requiring up to 1000 m2 of coverage and 40 meter throw.

High-quality neodymium components combined with new Constant Q horns and patented planar waveguide bass horns deliver maximum sound pressure and outstanding audio performance. There are various amplifier options available: L3600FD, IPX5:4 or TGX10. With their integrated FIR-Drive DSP and sophisticated protection package, they are capable of driving a very wide range of configurations with absolute reliability and simplicity. With VCTP (Voice-Coil-Tracking-Protection) safety circuits in the cabinets allow the widest possible dynamic range combined with the highest degree of security.

Simple transportation, fast setting-up times and easy cabling are just some of the important practical advantages of the XA2-PRO systems. The components can be quickly and easily configured using the SONICUE sound system software to cover a wide range of different sound reinforcement applications in various venues.

The “standard” XA2-PRO system contains 2 FX12-PRO mid/hi cabinets, 4 FX20-PRO subwoofers and 2 L3600FD amplifiers, optional are 1 IPX5:4 or 1 TGX10.

Easy and convenient system control is via Dynacord’s new SONICUE Sound System Software (requires L3600FD on firmware > 2.0). There’s no better way to easily control a sound system with plenty of control options and system information on hand.

Models

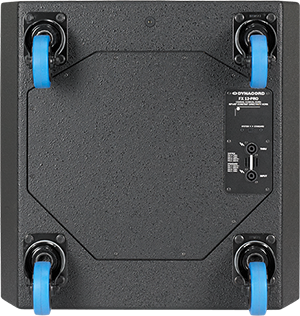

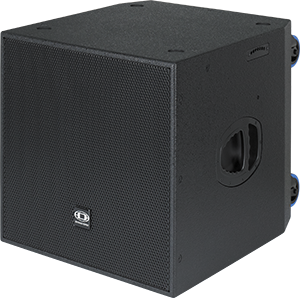

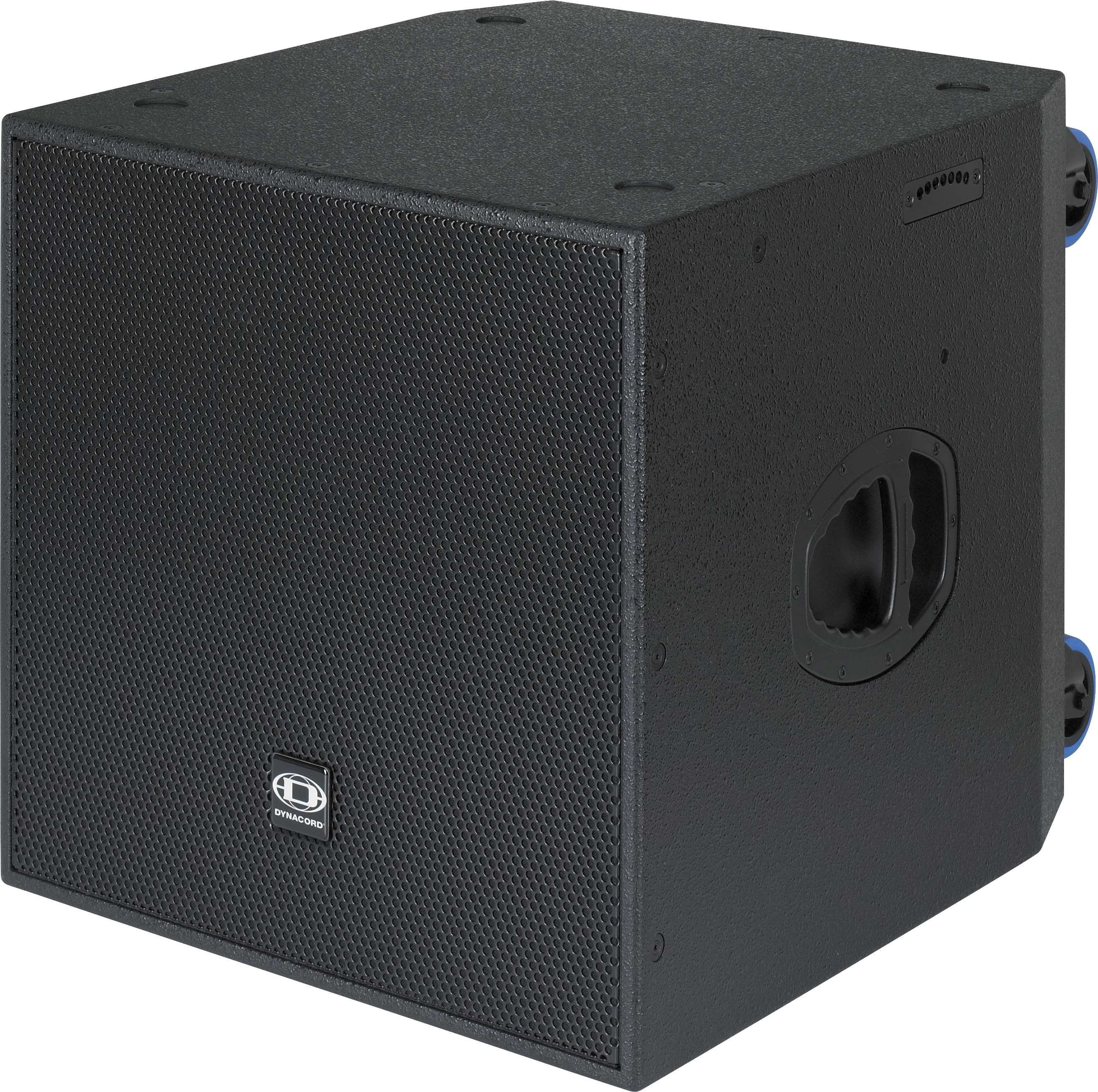

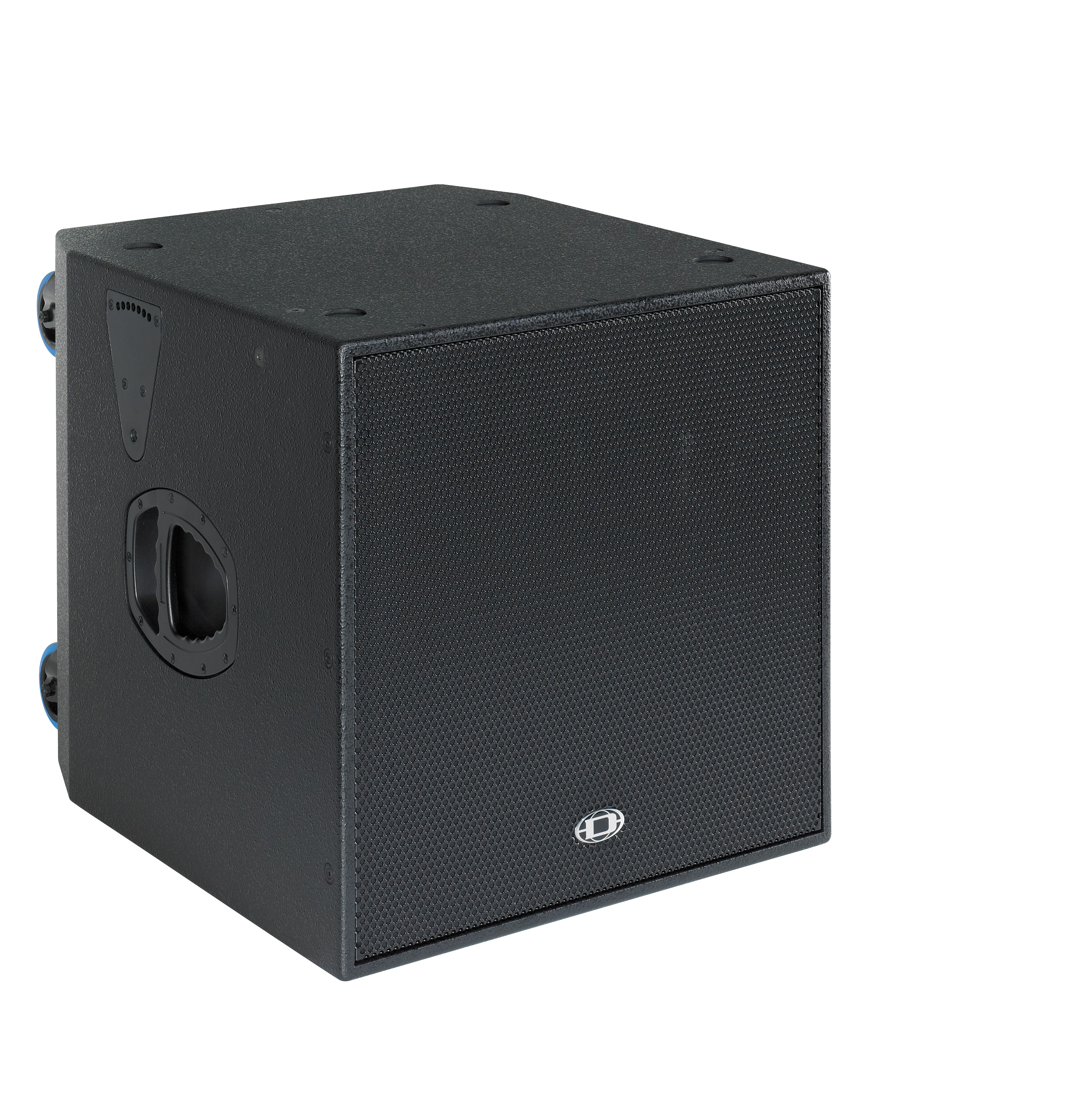

FX12-PRO
Medium longthrow mid/high‑ frequency cabinet in coaxial design

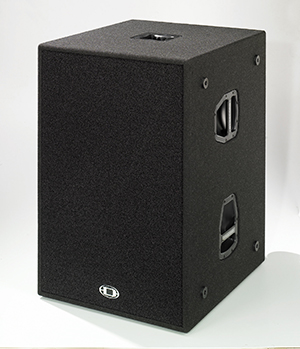

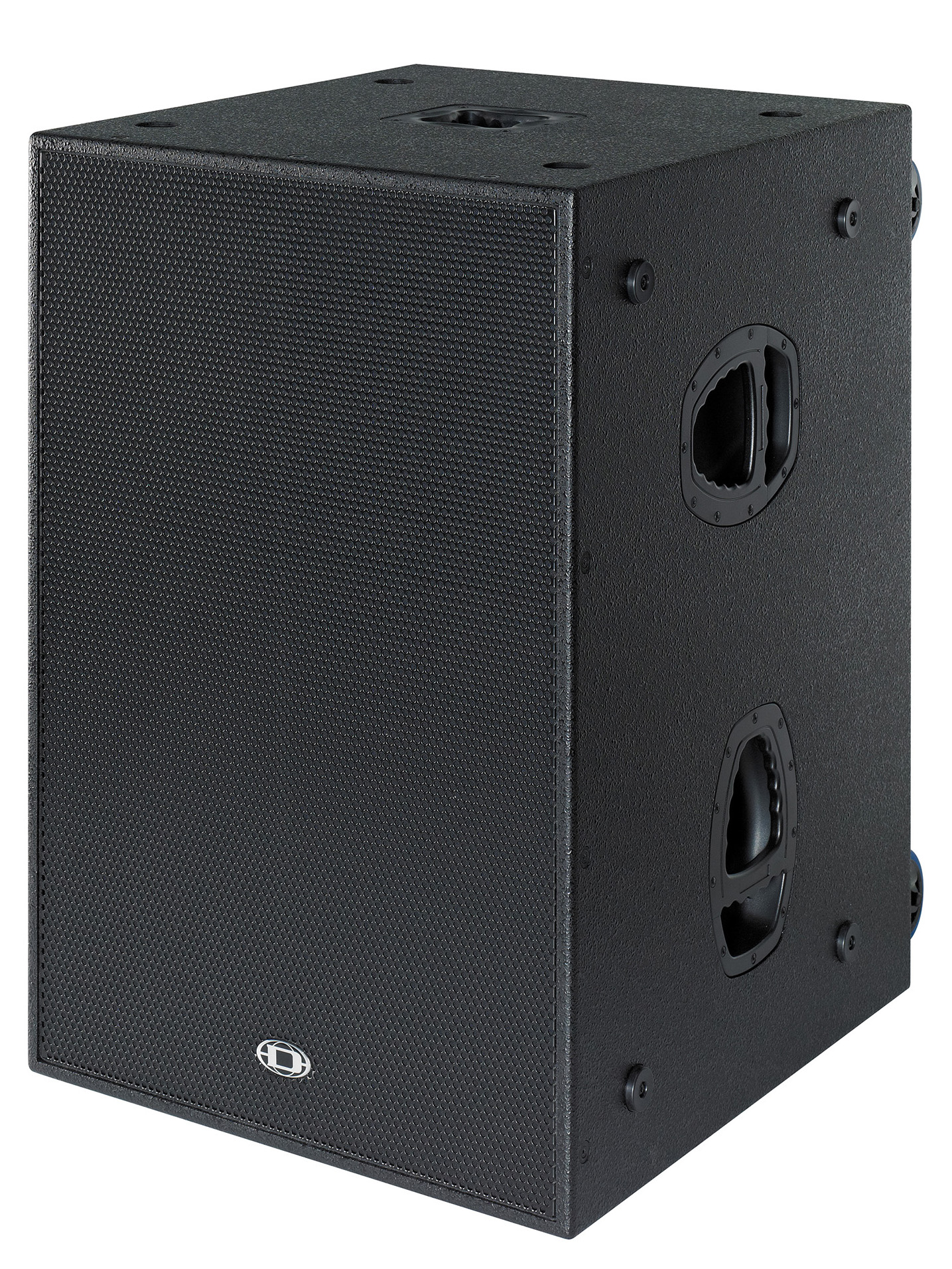

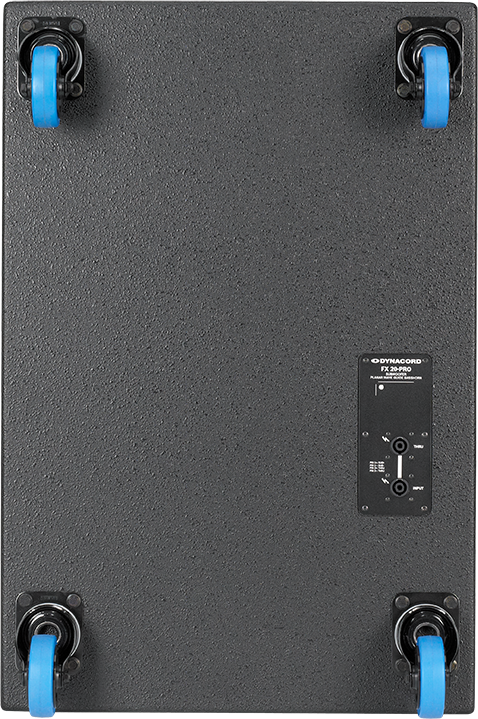

FX20-PRO
Planar wave guide basshorn
