VariLine
Variline loudspeakers have been engineered for maximum audio quality and the widest possible range of applications to keep up with the continuously changing demands of live sound reinforcement and the installation business.
Comprehensive mounting hardware and unobtrusive aesthetics permit hassle-free touring use and installation even in the most critical surroundings. The asymmetrical enclosures facilitate ceiling and wall mounting as well as the use in clusters or as stage monitors.
Now available in black and white.
Models
 |
 |
 |
 |
 |
 |
 | |

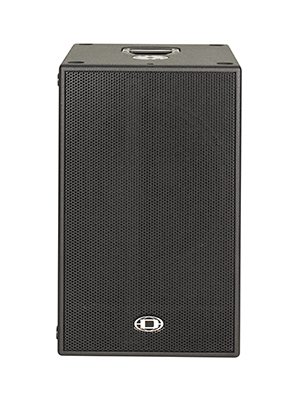

Sub 18 |
Sub 28 |
VL122 |

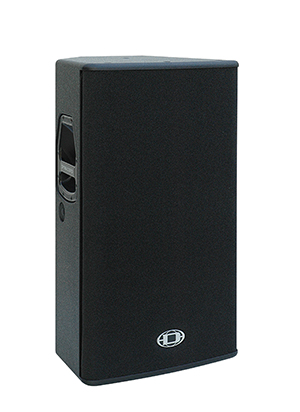

VL152 |

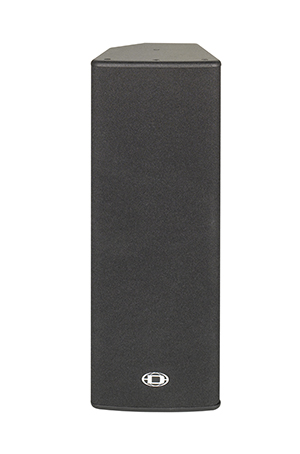

VL212 |
VL262 |
VL62 | |
| Weight Net | 49kg (108.03 lbs) | 82kg (180.78 lbs) | 24kg (52.91 lbs) | 26kg (57.32 lbs) | 34kg (74.96 lbs) | 10kg (22.05 lbs) | 8kg (17.64 lbs) |
| Enclosure Material | Birch Plywood | Birch Plywood | Birch Plywood | Birch Plywood | Birch plywood | Birch Plywood | Birch plywood |
| SPL 2,83 V/1m | 98dB | 104dB | 99dB | 100dB | 97dB | ||
| Components HIGH | Ev ND6-8 | Ev ND6-8 | Ev DH 3 | ||||
| Nominal Impedance | 8ΩΩ | 4ΩΩ | 8ΩΩ | 8ΩΩ | 4ΩΩ | 8ΩΩ | 16ΩΩ |
| Rated power RMS | 700W | 1400W | 400W | 500W | 800W | 300W | 150W |
| Coverage Angle nom. | 90° x 45° | 90° x 45° | 90° x 40° | ||||
| Speaker Type | Subwoofer | Subwoofer | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range |
| Frequency range ( -10dB ) Full range | 80Hz - 19kHz | 90Hz - 20kHz | |||||
| Frequency range ( -10dB ) measured with H5000-RCM26 preset | 50Hz - 19kHz | 60Hz - 20kHz | |||||
| VCT Protections | yes | yes | yes | yes | Halogen | ||
| Power Rating | 2800W | 5600W | 1600W | 2000W | 3200W | 1200W | 600W |
| SPL 2,83 V / 1m 2W / 4 Ohm | 105dB | ||||||
| Dimensions | 505x 805x 570 | 605x 1205x 675 | 385x 715x 374 | 441x 780x 407 | 385x1035x374mm | 217x 543x 230 | 217x375x230mm |
| Grille | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel, Acoustic Foam | Powder Coated Steel, Acoustic Foam | Powder coated steel, acoustic foam | Powder Coated Steel, Acoustic Foam | Powder coated steel, acoustic foam |
| Powered/Passive | Passive | Passive | Passive | Passive | Passive | Passive | Passive |
| Woofer Size | 18mm (0.71") | 18mm (0.71") | 12mm (0.47") | 15mm (0.59") | 12mm (0.47") | 6mm (0.24") | 6mm (0.24") |
| Voice coil tracking protection | Yes | Halogen | |||||
| Freq. Range (-10 dB) | 35Hz - 700Hz | 35Hz - 700Hz | 60Hz - 20Hz | 50Hz - 20Hz | 90Hz - 20kHz | ||
| Program power | 1400W | 2800W | 800W | 1000W | 1600W | 600W | 300W |
| Configuration | Vented Direct Radiator | Vented Direct Radiator | passive 2-Way or Biamped Mode | passive 2-Way or Biamped Mode | Passive 2-Way | Passive 2-Way | Passive 2-Way |
| Wired through | 1+, 1-, 2+, 2- | 1+, 1- | |||||
| Finish | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black, 2-component paint | Black 2-Component Structure Paint | Black 2-component paint |
| Passive Power Handling | 2800W peak | 5600W peak | 1600W peak | 2000W peak | 3200W peak | 1200W peak | 600W peak |
| Passive X-Over Frequency | Hi-Cut | Hi-Cut | 1,5kHz | 1,5kHz | 2,2kHz | ||
| Pin Wiring Biamped HF | Speaker A 1+/1- | 2+/2- | 2+/2- | ||||
| SPL 1W / 1m 4V / 16Ohm | 94dB | ||||||
| Max. SPL/1m (calc) | 132dB | 138dB | 131dB | 133dB | 137dB | 125dB | 122dB |
| Pin Wiring Biamped LF | Speaker B 2+/2- | 1+/1- | 1+/1- | ||||
| Components LOW | LFS 18700 | 2x LFS 18700 | DND 12350 | DND 15400 | 2x DND 6130-16 | ||
| Coverage (Nominal -6 dB) H | 360° | 360° | 90° | 90° | 90° | 90° | 90° |
| Pin Wiring Normal/Fullrange | 1+/1- | 1+/1- | 1+/1- | 1+/1- | 1+/1- | ||
| Connectors SPEAKON 2x NL 4MPR | 2x NL 4MPR | 2x NL 4MPR | |||||
| Connectors SPEAKON | 2x NL 4MPR | 2x NL 4MPR | 2x NL 4MPR | ||||
| Shipping Weight | kgkg | 10kgkg | |||||
| Active crossover frequency | 1.5kHz 24dB/Oct. Linkwitz-Riley, 1,5kHz Linear-Phase FIR | ||||||
| Component High | Electro-Voice ND6-8 Neodymium | ||||||
| Component LOW | 2x DND 12350 | DND 6130-16 | |||||
| Connector model | Speakon 2x NL4 MPR | ||||||
| Connectors Biamped | Lo 1+, 1- Hi 2+, 2- | ||||||
| Connectors Full-Range | 1+, 1- | 1+, 1- | |||||
| Coverage angle 1 kHz -6dB | 90° * 45° | ||||||
| Connector modelSpeakon | 2x NL4 MPR | ||||||
| Handles | 2 | ||||||
| Passive crossover frequency | 1.5kHz | ||||||
| Coverage angle nominal | 90° *40° | ||||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
