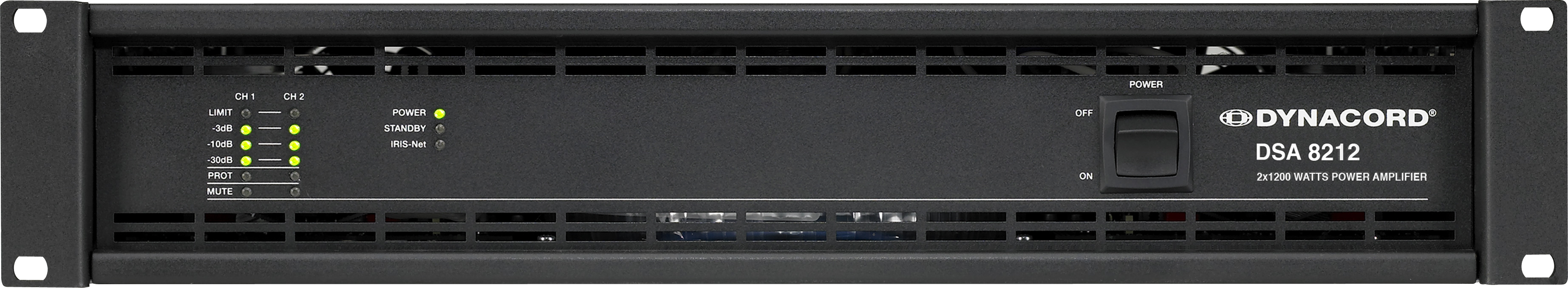

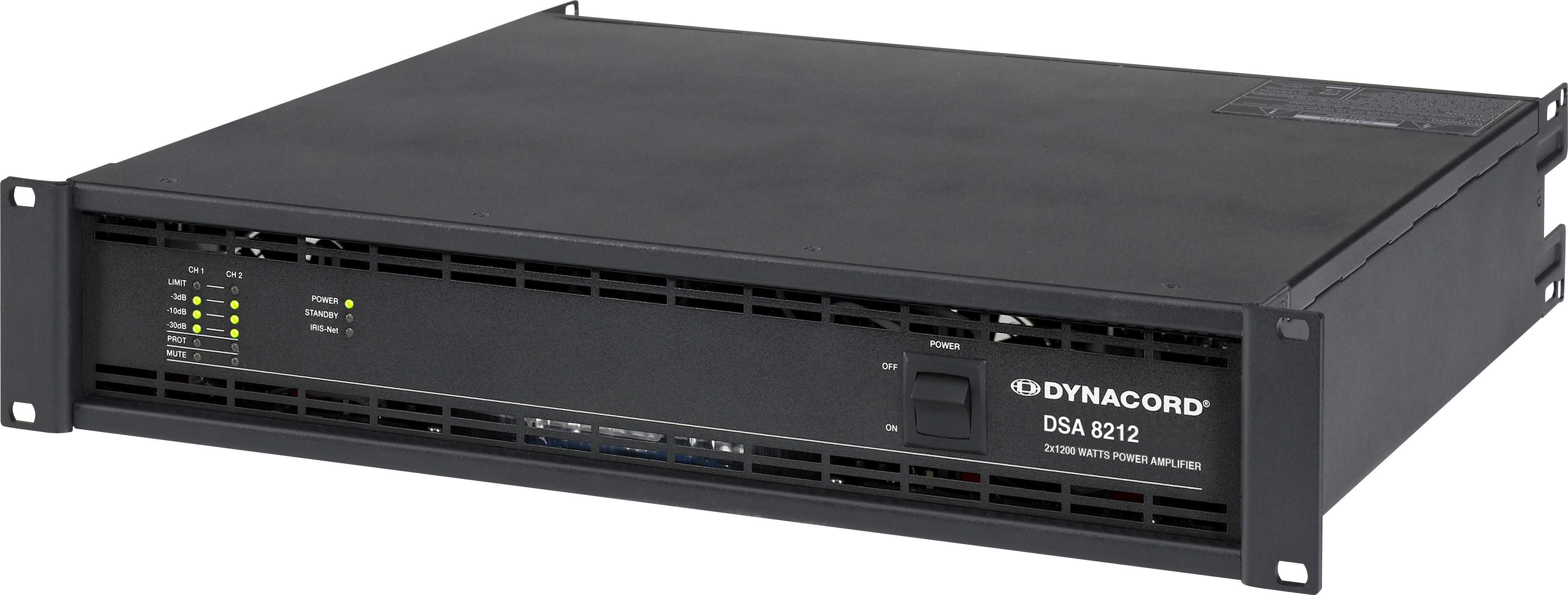

DSA 8212

2 x 1200 w power amplifier for fixed install applications

Summary & Images Specs Downloads & Support
  • Highest Audio Performance for all ProSound applications
  • Optimized for 24/7
  • Highest Reliability due to DYNACORD Protection Scheme
  • Remote Control with optional Control Module (RCM-810)

Solid Dynacord technology for fixed installations at very competitive prices.

DSA power amplifiers offer a very high, stable output with high efficiency at a high performance level and are therefore the ideal choice for typical fixed installation applications. The connectivity consequently provides Phoenix type in/outs, the input level controls are located on the rear panel, also a switchable high‑pass filter (50 Hz, 18 dB/oct) and a Ground Lift switch.

The POWER REMOTE connector makes the task of remote controlling the power amplifier as well as switching it on and off simple. For further remote‑supervision and –control possibilities and integration into IRIS‑Net networks, an optional remote control module (RCM‑810) is available.

产品规格

Load Impedance 2Ω 4Ω 8Ω
Maximum Midband Output Power THD = 1%, 1 kHz, Dual Channel 1800 W 1200 W 750 W
Rated Output Power THD < 0.1%, 20 Hz to 20 kHz   1100 W 550 W
Maximum Single Channel Output Power Dynamic-Headroom, IHF-A 3400 W 1800 W 950 W
Maximum Single Channel Output Power Continuous, 1 kHz 2400 W 1500 W 850 W
Maximum Bridged Output Power THD = 1%, 1 kHz   3600 W 2400 W

Maximum RMS Voltage Swing THD = 1%, 1 kHz 90.6 V
Power Bandwidth, THD = 1%, ref. 1 kHz, half power @ 4 Ω < 10 Hz to 30 kHz
Voltage Gain, ref. 1 kHz 32.0 dB
Input Sensitivity rated power @ 8 Ω, 1 kHz +6.6 dBu (1.66 Vrms)
THD at rated Output Power MBW = 80 kHz, 1 kHz < 0.03%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu (8.69 Vrms)
Crosstalk ref. 1 kHz, at rated output power < -80 dB
Frequency Response ref. 1 kHz 10 Hz to 40 kHz (±1 dB)
Input Impedance active balanced 20 kΩ
Damping Factor, 1 kHz > 300
Slew Rate 30 V/ms
Signal to Noise Ratio A-weighted > 110 dB
Output Noise, A-weighted < -71 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 max. output power @ 4 Ω 850 W
Mains Fuse 240 V / 230 V: T15AH; 120 V / 100 V: T30AH
Protection Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn-on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5 °C to +40 °C (40 °F to 105 °F)
Safety Class I
Dimensions (W x H x D), mm 483 x 88.1 x 421.5
Weight 17.7 kg (39.0 lbs)
Signal Processing HPF / 18 dB, switchable
Depending on the ambient temperature, the unit might not operate continously at 2 Ω load in Dual Mode or 4 Ω in Bridged Mode. In addition input power exceeds 1.1 times rated power consumption with 2 Ω load in Dual Mode or 4 Ω load in Bridged Mode
