VariLine
Variline loudspeakers have been engineered for maximum audio quality and the widest possible range of applications to keep up with the continuously changing demands of live sound reinforcement and the installation business.
Comprehensive mounting hardware and unobtrusive aesthetics permit hassle-free touring use and installation even in the most critical surroundings. The asymmetrical enclosures facilitate ceiling and wall mounting as well as the use in clusters or as stage monitors.
Now available in black and white.
产品
 |
 |
 |
 |
 |
 |
 | |

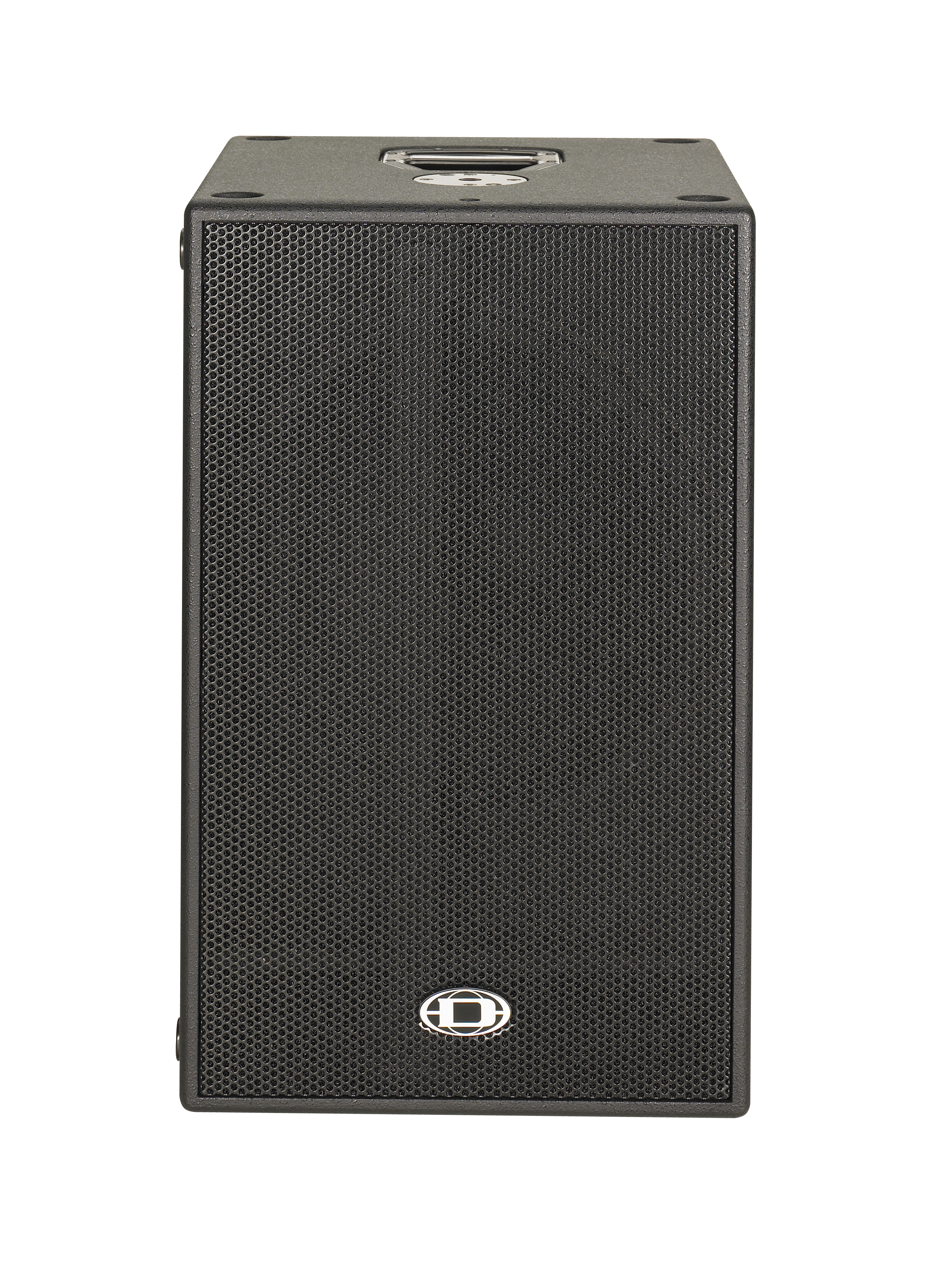

Sub 18 |
Sub 28 |
VL122 |
VL152 |
VL212 |
VL262 |
VL62 | |
| 净重 | 49 | 82 | 24 | 26 | 34 | 10 | 8 |
| 最大声压级/ 1M（calc） | 132 | 138 | 131 | 133 | 137 | 125 | 122 |
| Rated power RMS | 700W | 1400W | 400W | 500W | 800W | 300W | 150W |
| Components LOW | LFS 18700 | 2x LFS 18700 | DND 12350 | DND 15400 | 2x DND 6130-16 | ||
| 低音尺寸 | 18 | 18 | 12 | 15 | 12 | 6 | 6 |
| 扬声器类型 | Subwoofer | Subwoofer | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range |
| 标称阻抗 | 8Ω | 4Ω | 8Ω | 8Ω | 4Ω | 8Ω | 16Ω |
| 额定功率 | 2800 | 5600 | 1600 | 2000 | 3200 | 1200 | 600 |
| 覆盖率（标称- 6分贝）H | 360 | 360 | 90 | 90 | 90 | 90 | 90 |
| Connectors SPEAKON | 2x NL 4MPR | 2x NL 4MPR | 2x NL 4MPR | ||||
| 配置 | Vented Direct Radiator | Vented Direct Radiator | passive 2-Way or Biamped Mode | passive 2-Way or Biamped Mode | Passive 2-Way | Passive 2-Way | Passive 2-Way |
| 外壳材料 | Birch Plywood | Birch Plywood | Birch Plywood | Birch Plywood | Birch plywood | Birch Plywood | Birch plywood |
| SPL 2,83 V/1m | 98dB | 104dB | 99dB | 100dB | 97dB | ||
| Coverage Angle nom. | 90° x 45° | 90° x 45° | 90° x 40° | ||||
| 无源功率 | 2800 | 5600 | 1600 | 2000 | 3200 | 1200 | 600 |
| VCT Protections | yes | yes | yes | yes | Halogen | ||
| Dimensions | 505x 805x 570 | 605x 1205x 675 | 385x 715x 374 | 441x 780x 407 | 385x1035x374mm | 217x 543x 230 | 217x375x230mm |
| Components HIGH | Ev ND6-8 | Ev ND6-8 | Ev DH 3 | ||||
| Powered/Passive | Passive | Passive | Passive | Passive | Passive | Passive | Passive |
| Freq. Range (-10 dB) | 35Hz - 700Hz | 35Hz - 700Hz | 60Hz - 20Hz | 50Hz - 20Hz | 90Hz - 20kHz | ||
| 装船重量 | kg | 10kg | |||||
| Grille | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel, Acoustic Foam | Powder Coated Steel, Acoustic Foam | Powder coated steel, acoustic foam | Powder Coated Steel, Acoustic Foam | Powder coated steel, acoustic foam |
| Active crossover frequency | 1.5kHz 24dB/Oct. Linkwitz-Riley, 1,5kHz Linear-Phase FIR | ||||||
| 涂饰/面漆 | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black 2-Component Structure Paint | Black, 2-component paint | Black 2-Component Structure Paint | Black 2-component paint |
| Passive X-Over Frequency | Hi-Cut | Hi-Cut | 1,5kHz | 1,5kHz | 2,2kHz | ||
| Component High | Electro-Voice ND6-8 Neodymium | ||||||
| Pin Wiring Normal/Fullrange | 1+/1- | 1+/1- | 1+/1- | 1+/1- | 1+/1- | ||
| Component LOW | 2x DND 12350 | DND 6130-16 | |||||
| Program power | 1400W | 2800W | 800W | 1000W | 1600W | 600W | 300W |
| Connector model | Speakon 2x NL4 MPR | ||||||
| Connectors Biamped | Lo 1+, 1- Hi 2+, 2- | ||||||
| Pin Wiring Biamped HF | Speaker A 1+/1- | 2+/2- | 2+/2- | ||||
| Connectors Full-Range | 1+, 1- | 1+, 1- | |||||
| Pin Wiring Biamped LF | Speaker B 2+/2- | 1+/1- | 1+/1- | ||||
| Coverage angle 1 kHz -6dB | 90° * 45° | ||||||
| Connector modelSpeakon | 2x NL4 MPR | ||||||
| Frequency range ( -10dB ) Full range | 80Hz - 19kHz | 90Hz - 20kHz | |||||
| Coverage angle nominal | 90° *40° | ||||||
| Frequency range ( -10dB ) measured with H5000-RCM26 preset | 50Hz - 19kHz | 60Hz - 20kHz | |||||
| Connectors SPEAKON 2x NL 4MPR | 2x NL 4MPR | 2x NL 4MPR | |||||
| Handles | 2 | ||||||
| Passive crossover frequency | 1.5kHz | ||||||
| SPL 2,83 V / 1m 2W / 4 Ohm | 105dB | ||||||
| SPL 1W / 1m 4V / 16Ohm | 94dB | ||||||
| Voice coil tracking protection | Yes | Halogen | |||||
| Wired through | 1+, 1-, 2+, 2- | 1+, 1- | |||||
| 更多 | 更多 | 更多 | 更多 | 更多 | 更多 | 更多 |
