D 8W
2‑way plastic cabinet
- 8" 250W 2-Way Compact High-Power Light-Weight Fullrange Cabinet
- White Rugged ABS Enclosure, 9kg only
- 90° x 90° Constant-Q HF Horn
- Neodymium DND8200-8 Woofer
- Voice Coil Protection

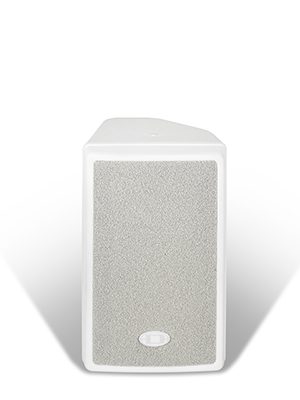

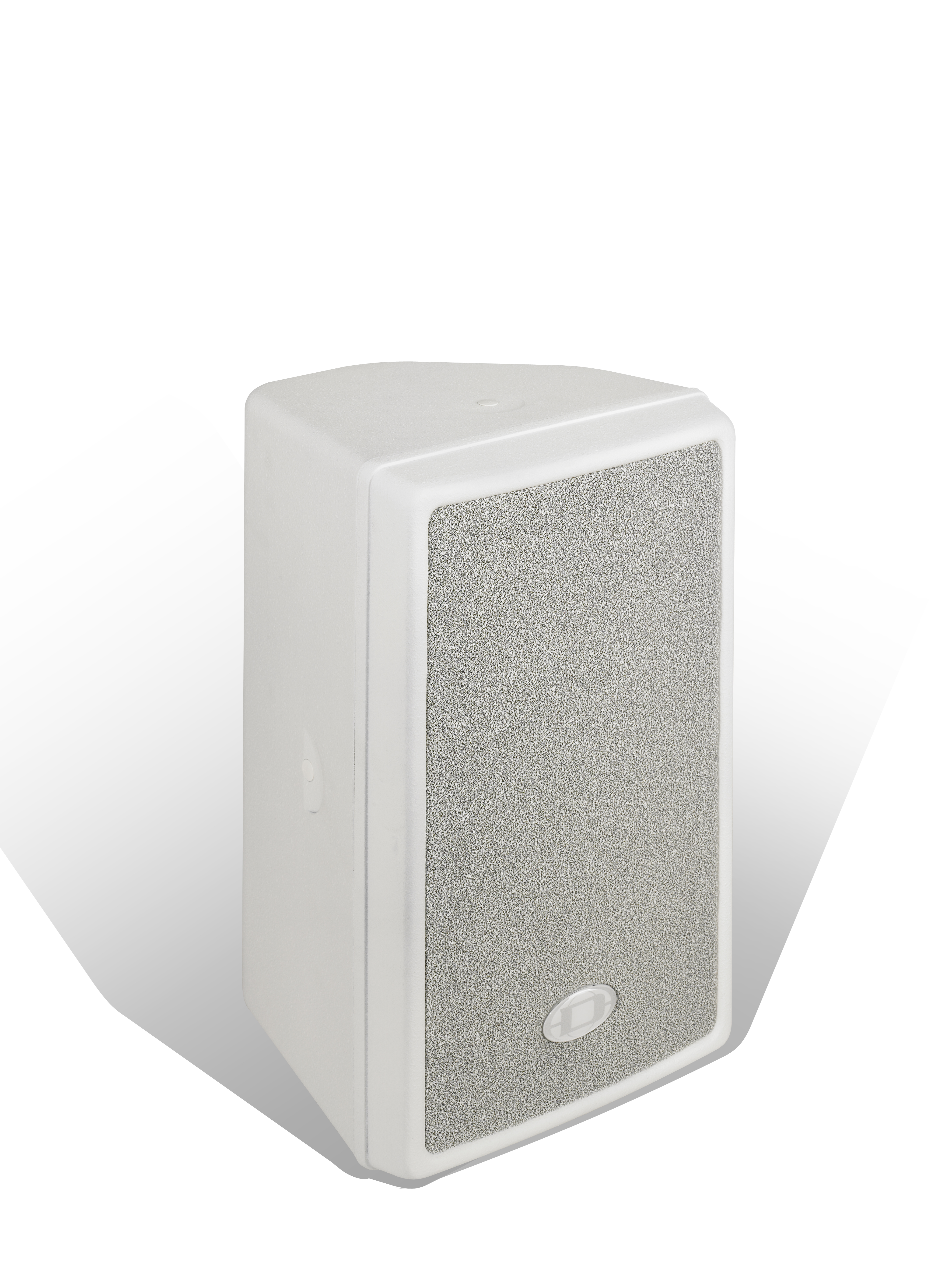

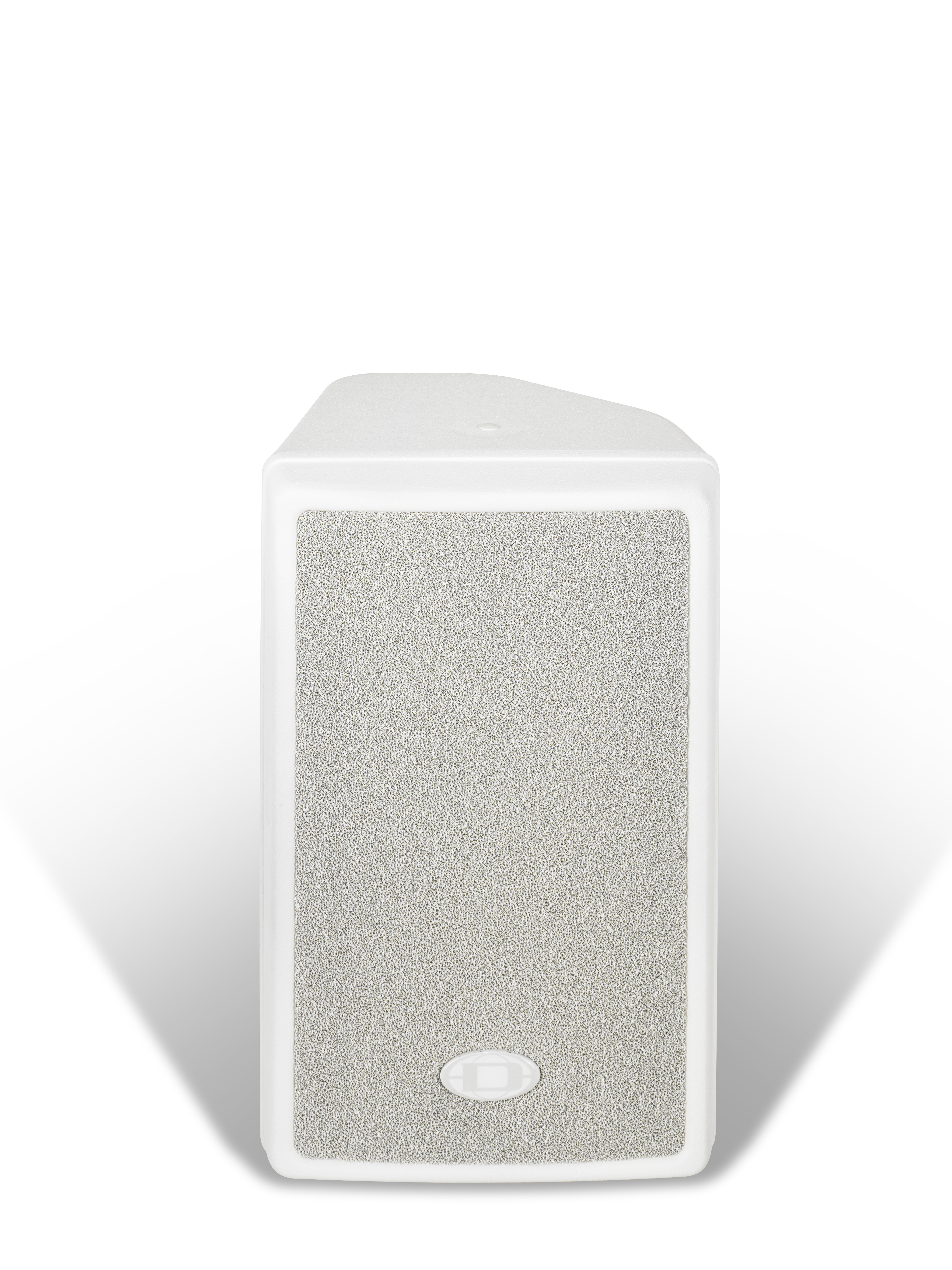

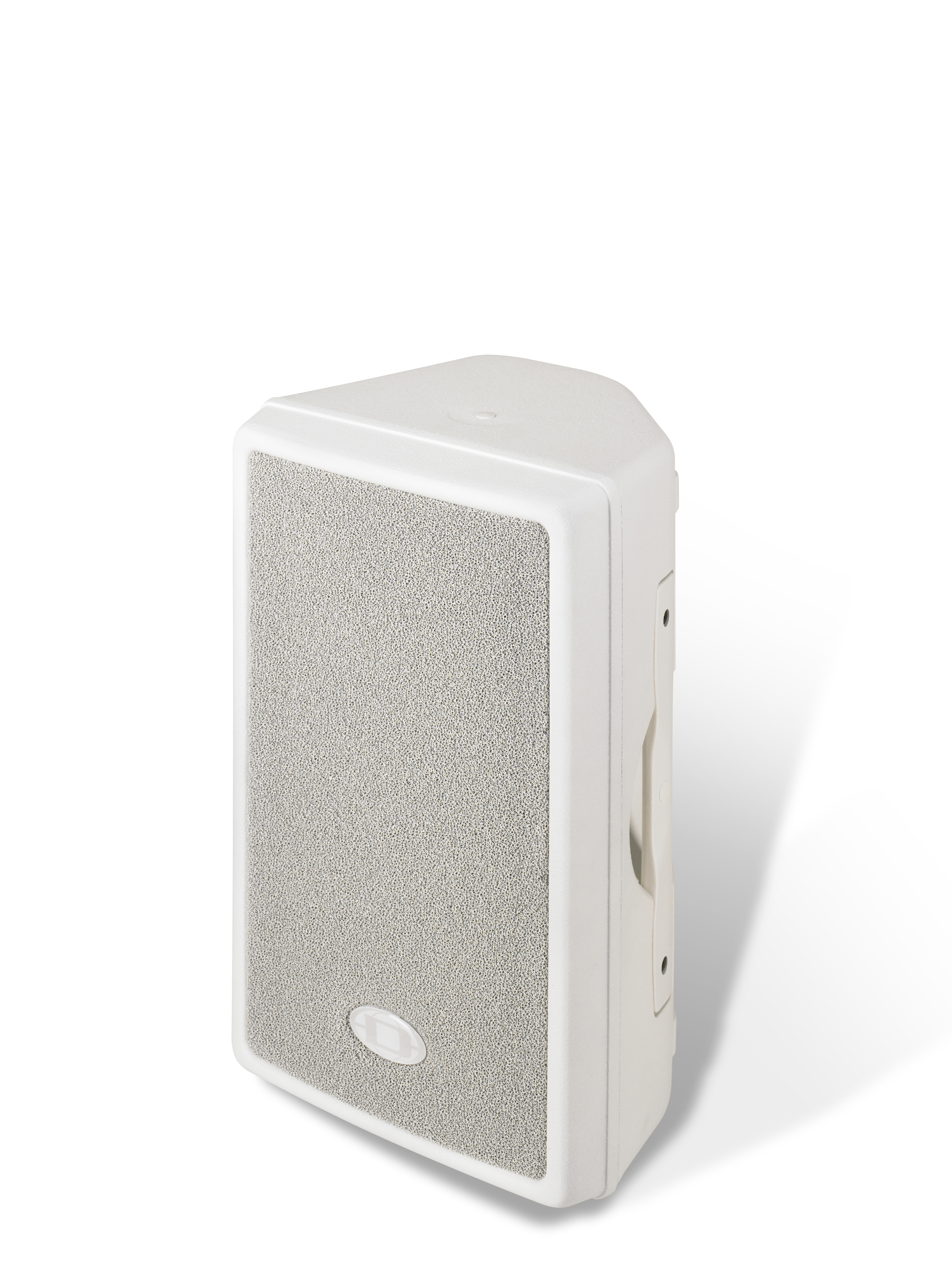

The D 8 is a light‑weight, robust 8"/1", 2‑way plastic cabinet for professional sound reinforcement applications. With a variety of suspension accessories and conservative cosmetics, the D 8 is ideally suited to be used in demanding fixed installations.
Specifications
| Cabinet | Full-Range | ||
| Configuration | Passive 2-Way | ||
| Nominal impedance | 8 Ω | ||
Specifications | |||
| Power Handling: | |
| Rated power RMS | 250 W |
| Program power | 500 W |
| Peak power | 1000 W |
| Sound pressure level: | |
| SPL 2.83 V / 1m 1 W / 8 Ω | 94dB |
| Max. SPL 1m (calculated with peak power) | 124 dB |
| Frequency range (-10dB) | 65 Hz — 20 kHz |
| Nominal Coverage Angle (Horizontal x Vertical) | 90°x90° |
| Speaker components: | |
| LF Transducer | DND8200-8 (D367042) |
| HF Transducer | DH3 (D353078) |
| Voice coil protection | Halogen |

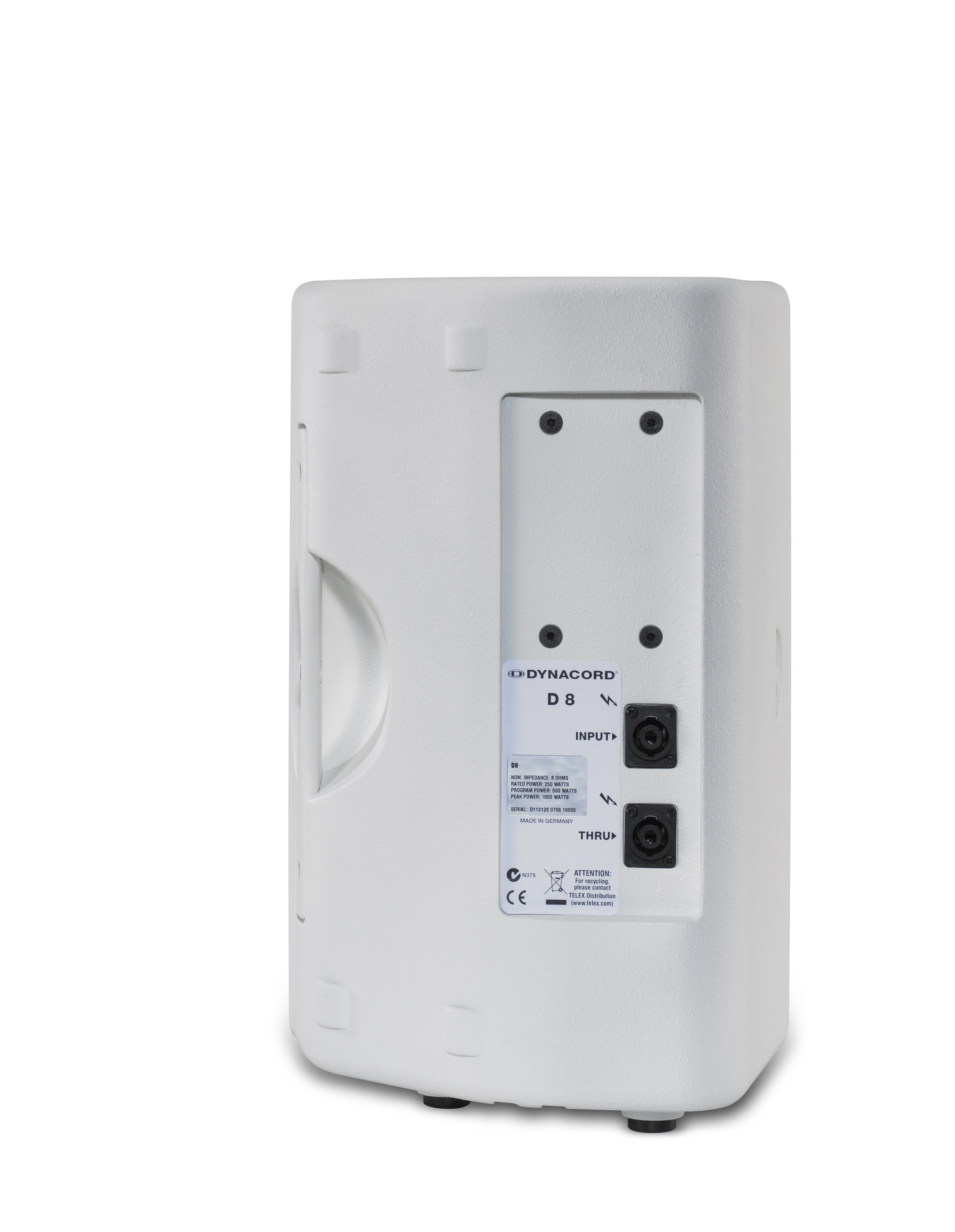

| Connector model | Speakon 2x NL4 MPR |
| Connector wiring | 2-pole |
| Dimensions (WxHxD) | 282mm x 442mm x 259 mm (11.114" x 17.406" x 10.197") |
| Net weight | 8.8 kg (19.40 Ibs) |
| Shipping weight | 9.5 kg (20.94 Ibs) |
| Enclosure material | ABS |
| Grille | Acoustic foam, powder coated steel |
| Handles | 1 |
| Warranty | 36 Months |
