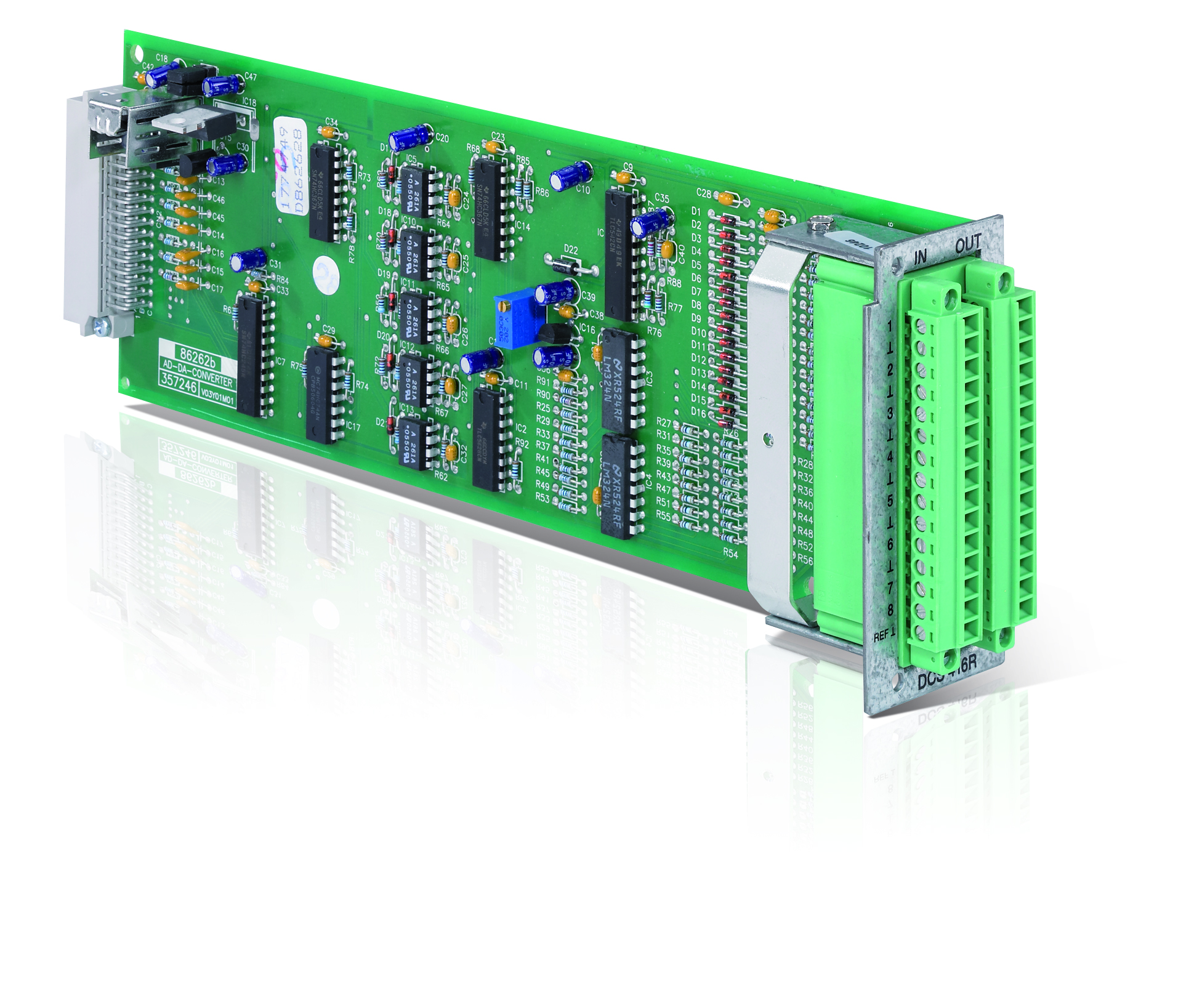

DCS 416R
Analog input & output interface module
The module provides analogue input and output interfacing capabilities for use in monitoring and control functions. Both inputs and outputs are capable of handling 0 to 10 VDC with 256 distinct levels. Potentiometers for volume control can be interfaced using the provided reference voltage output. The modules have CE marking as well as UL and CSA recognition for DCS 416.
Specifications
| Operating voltage | 24 V DC, -10%/+30% | |||
| Operating current (max.) | Standby/Idle/Announcement/Alert: 24 V, 72 mA, 1.73 W | |||
| Electromagnetical environment | E1, E2, E3 | |||
Specifications |
||||
| Operating temperature | -5 °C to 45 °C | |
| Product dimensions (Width by Height by Depth) | 37.5 by 80.6 by 245 mm | |
| Net weight | 170 g | |
| Inputs | Voltage range (min.–max.) | 0–10 V DC |
| Impedance range ext.(min.–max.) | 0–10 kΩ | |
| Maximum input voltage | 50 V DC | |
| Outputs | Voltage range (min.–max.) | 0–10 V DC |
| Output impedance | 47 Ω | |
| Maximum load | 2 kΩ | |
| Resolution of inputs/outputs | 8 Bit | |
| Reference voltage source | Output voltage | 10 V DC |
| Maximum output current | 30 mA | |
