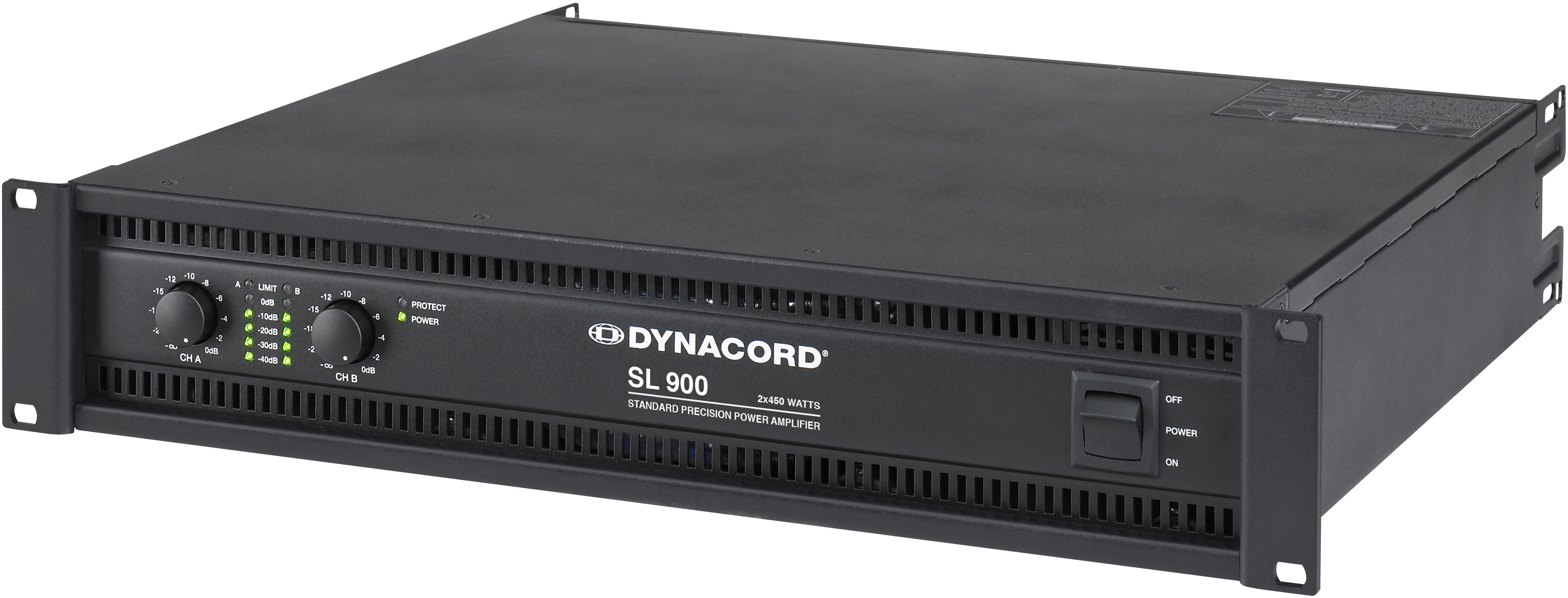

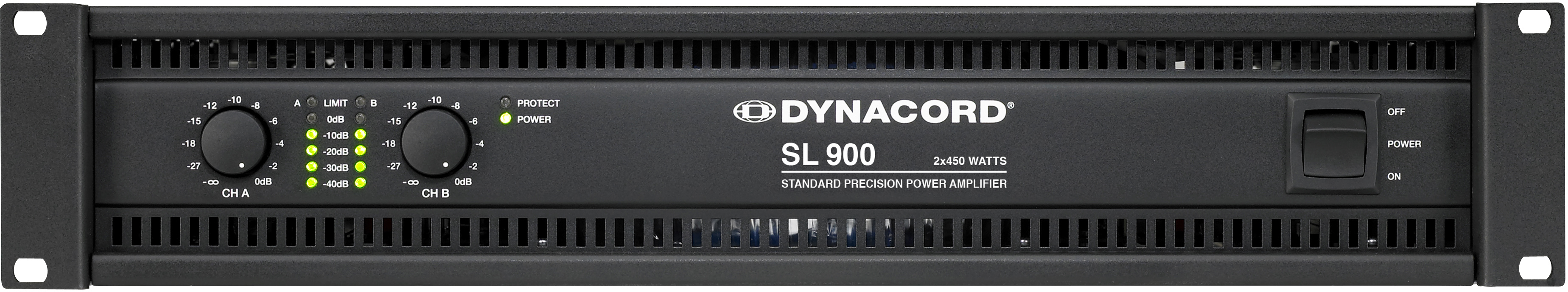

SL 900

2 x 450 w power amplifier

Summary & Images Specs Downloads & Support

Solid Dynacord amplifier technology at highly competitive prices.

These amplifiers offer high, stable power output and a high efficiency factor on the high performance level and are therefore the ideal choice for driving a multitude of mobile and club systems. SL series power amplifiers are equipped with a comprehensive protection package and dynamic limiters.

The integrated, switchable Low-Pass Notch filter (a typical Dynacord special feature) corrects the frequency response and optimizes the transient behaviour of loudspeakers.

Specifications

Load Impedance 2 Ω 4 Ω 8 Ω
Maximum Midband Output Power THD = 1%, 1 kHz, Dual Channel 650 W 450 W 270 W
Rated Output Power THD < 0.1%, 20 Hz to 20 kHz 400 W 200 W
Maximum Single Channel Output Power Dynamic-Headroom, IHF-A 1150 W 660 W 350 W
Maximum Single Channel Output Power Continuous, 1 kHz 850 W 540 W 310 W
Maximum Bridged Output Power THD = 1%, 1 kHz 1300 W 900 W

Maximum RMS Voltage Swing THD = 1%, 1 kHz 55.3 V
Power Bandwidth THD = 1%, ref. 1 kHz, half power @ 4 Ω < 10 Hz to 30 kHz
Voltage Gain, ref. 1 kHz 32.0 dB
Input Sensitivity rated power @ 8 Ω, 1 kHz +2.2 dBu (1.0 Vrms)
THD at rated Output Power MBW = 80 kHz, 1 kHz < 0.03%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu (8.69 Vrms)
Crosstalk ref. 1 kHz, at rated output power < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 40 kHz (±1 dB)
Input Impedance, active balanced 20 ㏀
Damping Factor, 1 kHz > 300
Slew Rate 25 V/μs
Signal to Noise Ratio A-weighted > 106 dB
Output Noise, A-weighted < -71 dBu
Output Stage Topology Class H
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 maximum output power @ 4 Ω 550 W
Mains Fuse 240 V / 230 V: T10AH; 120 V / 100 V: T20AH
Protection Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turnon delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5 °C to +40 °C (40 °F to 105 °F)
Safety Class I
Dimensions (W x H x D), mm 483 x 88.1 x 421.5
Weight 12.6 kg (27.8 lbs)
Signal Processing LPN, switchable
Optional Accessories Rear-rackmount D113223 (RMK-15)
Depending on the ambient temperature, the unit might not operate continously at 2 Ω load in Dual Mode or 4 Ω in Bridged Mode. In addition input power exceeds 1.1 times rated power consumption with 2 Ω load in Dual Mode or 4 Ω load in Bridged Mode
