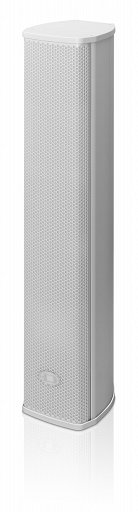

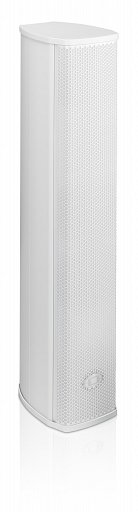

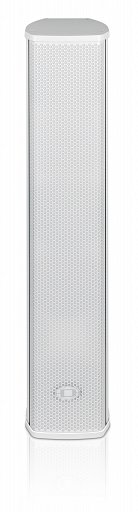

TS 400W

4 x 6" / 1" full‑range cabinet; white

Summary & Images Specs Downloads & Support
  • 4x 6" Passive High power multi-functional 2.5 way cabinet, White
  • 600 Watts / 4 Ohms
  • DH-3 Titanium diaphragm driver
  • CAD optimized 90 x 40 CD horn
  • 4 Neodymium DND 6130-16 woofers

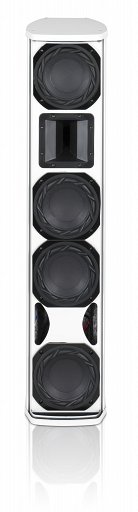

Vertical pattern control is a requirement for highest sound quality and speech intelligibility, especially in difficult acoustic spaces. The TS 400W was designed to provide a very even and smooth coverage over a very wide bandwidth by using spaced and filtered woofers as array elements. The 2.5 way design places elements at the ends of the column for maximum distance to lower the effective controlled frequency.


Cabinet Full-range
Configuration Passive 2.5-Way
Nominal impedance 4 Ω

Power handling: Full-range
Rated power RMS 600 W
Peak power 2400 W
SPL 1 W/1 m 97 dB
Max. SPL at 1 m (calculated with peak power) 131 dB
Frequency range (-10 dB) 74–20000 Hz
Nominal coverage angle 90° x 40°
X-Over frequency 2600 Hz
Component HIGH Electro-Voice DH-3
Component LOW 4 x DND 6130-16

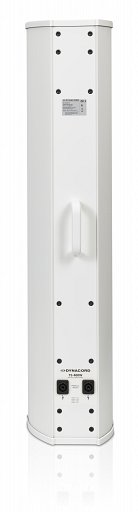

Connector model 2 x NEUTRIK speakON NL4
Product dimensions (Width x Height x Depth) 199 x 935 x 281 mm
Net weight 18 kg
Enclosure material Aluminum
Grille Steel
Suspension 10 x M6
