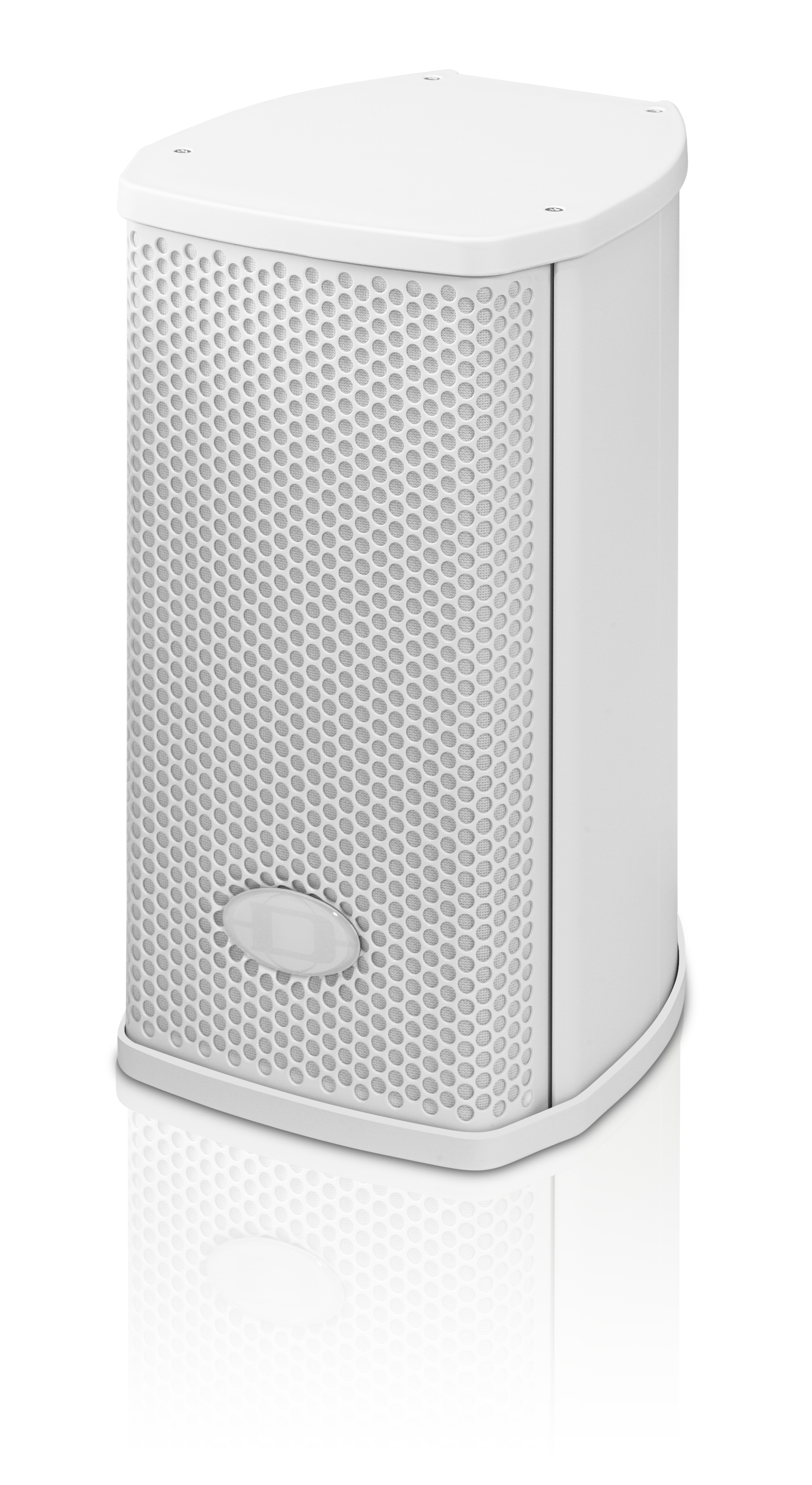

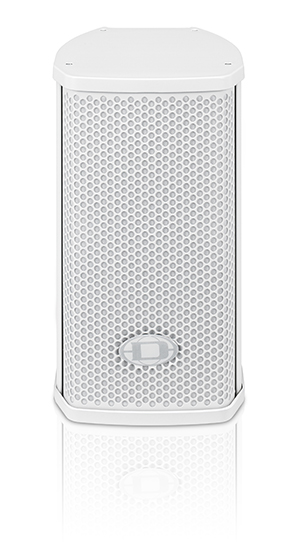

TS 100W

6" / 1" full‑range cabinet; white

  • 6" Passive High power multi-functional 2-way cabinet, White
  • 150 Watts / 16 Ω

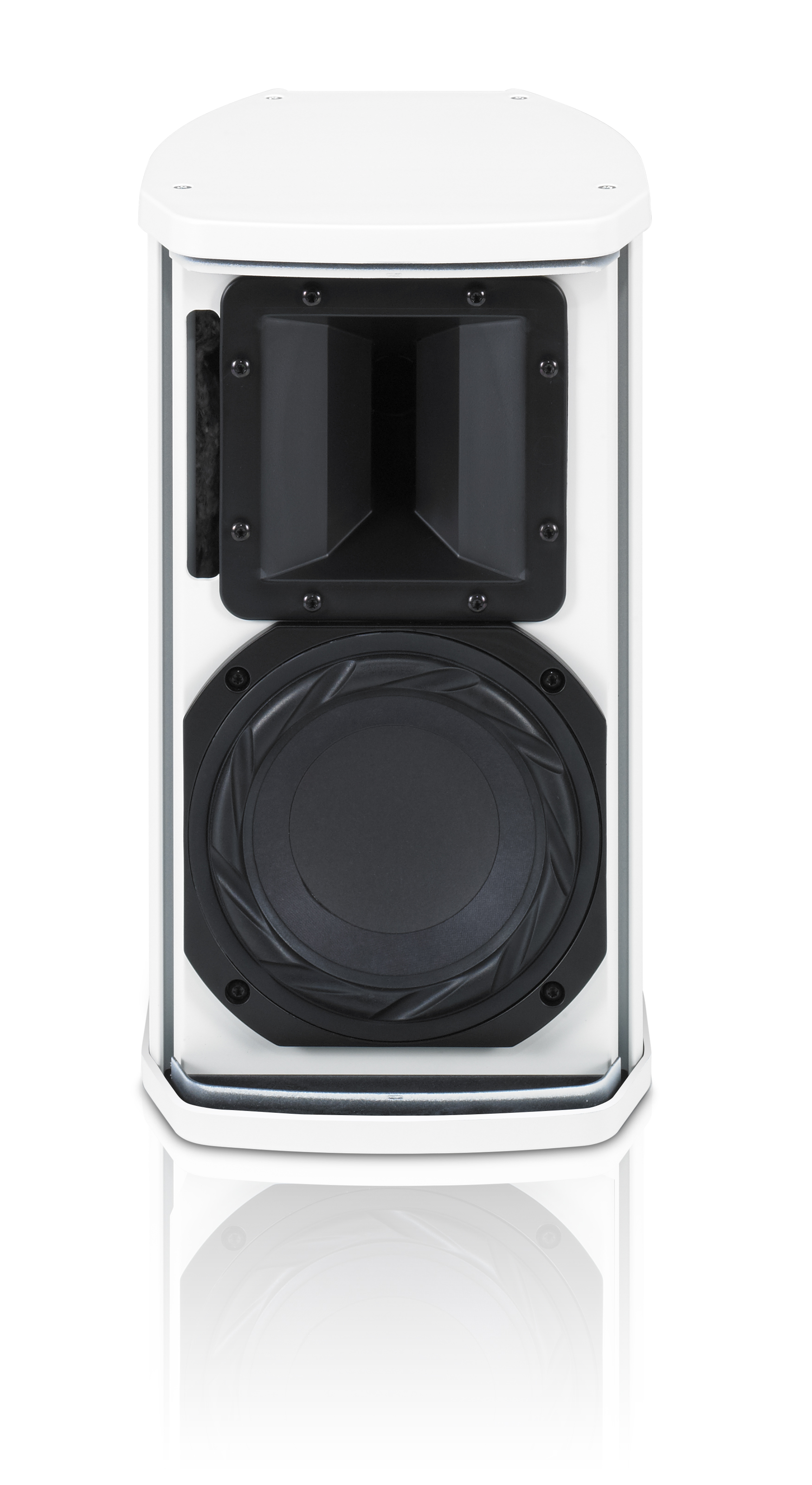

  • DH-3 Titanium diaphragm driver
  • Rotatable CAD optimized 90 x 40 CD horn
  • Neodymium DND 6130-16 woofer

Both the acoustic and the mechanical design of the TS 100W two‑way full range cabinet, with its power handling of 15OW / RMS, are optimized for multifunctional applications.

Specifications

Available ColorWhite
Weight Net7.1
Rated power RMS150W
SPL 1 W/1 m94dB
Voice coil tracking protectionHalogen
X-Over Frequency2200Hz

Powered/PassivePassive
Max. SPL/1m (calc)122
Speaker TypeFull-Range
Enclosure MaterialAluminum
Suspension4 x M6
Nominal Impedance16
Power Rating600
Woofer Size6
ConfigurationPassive 2-Way
Passive Power Handling600
Component HighElectro-Voice DH-3
Component LOWDND 6130-16
Contacts full-range1+, 1-
Contacts wired through1+, 1-
Dimensions199 x 350 x 239.5mm
Frequency range (-10 dB)80–20000Hz
GrilleSteel

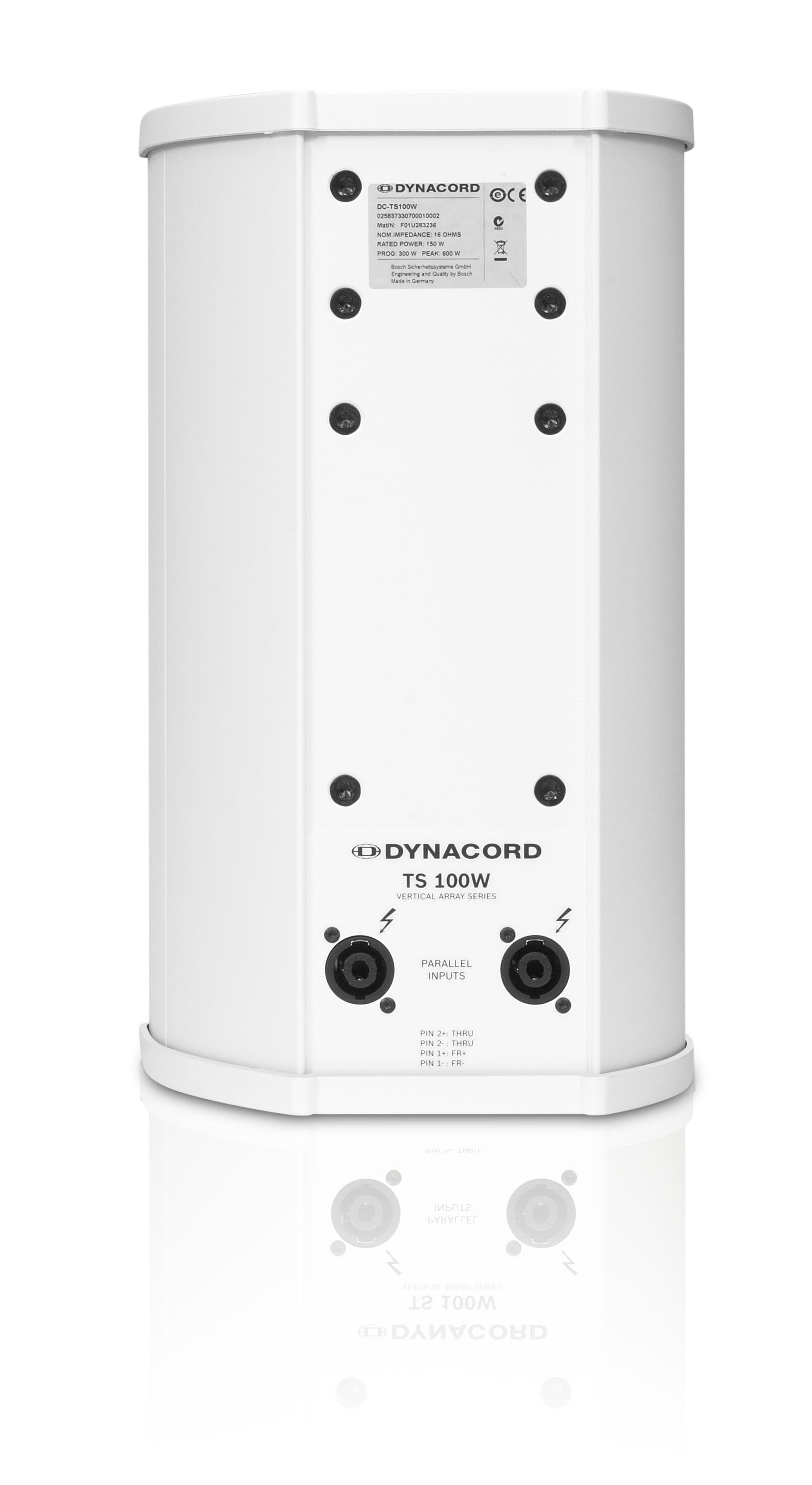

Model2x NEUTRIK speakON NL4
Nominal Coverage Angle90° x 40°
Program power300W
