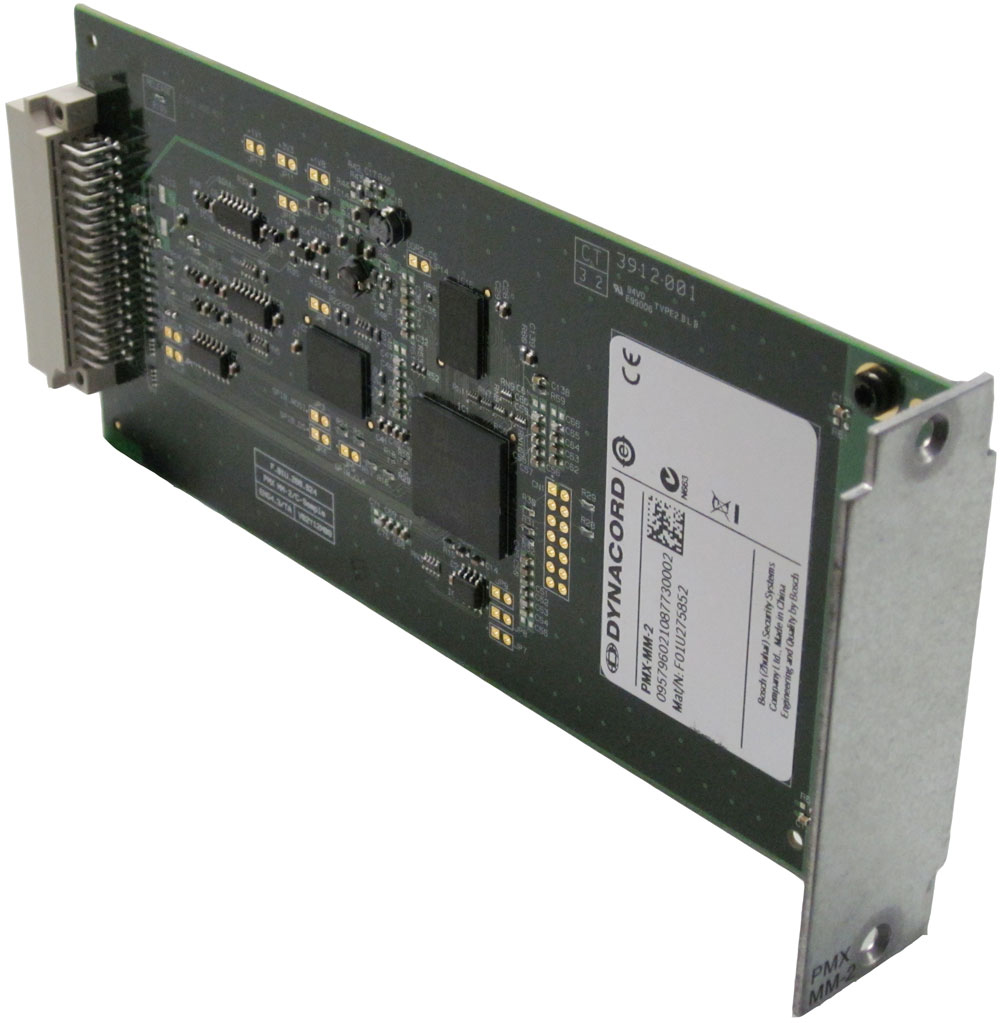

The PMX-MM-2 Message Manager is a fully integrated dual-channel message manager module, designed for the PROMATRIX 8000 system. The message manager is for EVAC messages and alarm signals, as well as commercial messages and chime/pre-chime signals. Up to two modules can be used per DPM 8016. That means that four audio signals can be played simultaneously, for example four messages can be used for a phased evacuation. The PMX-MM-2 allows easy configuration of EVAC and commercial messages, and other customized audio signals by using the IRISNet software. A software tool for swapping commercial messages by customers is available, also. Details on functions and features can be found in the corresponding IRIS-Net Help documentation.
Specifications
Frequency response | 20–20000 Hz (-0.5 dB) | |||
Stored message | 16 bit, uncompressed | |||
Message playback | 24 bit | |||
Specifications |
Sample rate | 48 kHz | |
Supply current | ||
• Standby/Idle | 25 mA | |
• Announcement/Alarm | 30 mA | |
Operating temperature | -5 to +45 °C | |
Electromagnetic environment | E1, E2, E3 | |
Product dimensions (Width ✕Height ✕ Depth) | 81.8 ✕ 27.3 ✕ 189.3 mm | |
Net weight | 85 g |
Downloads
Name | Language & Download |
---|---|
PMX-MM-2 Engineering Data Sheet | en |
