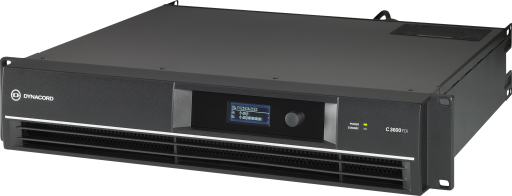

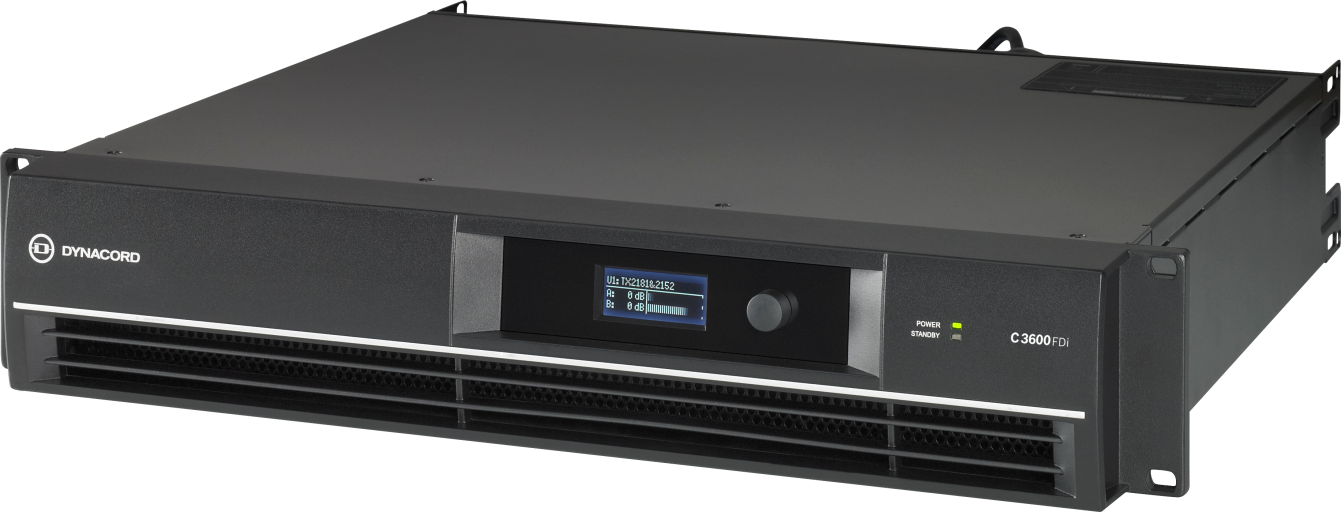

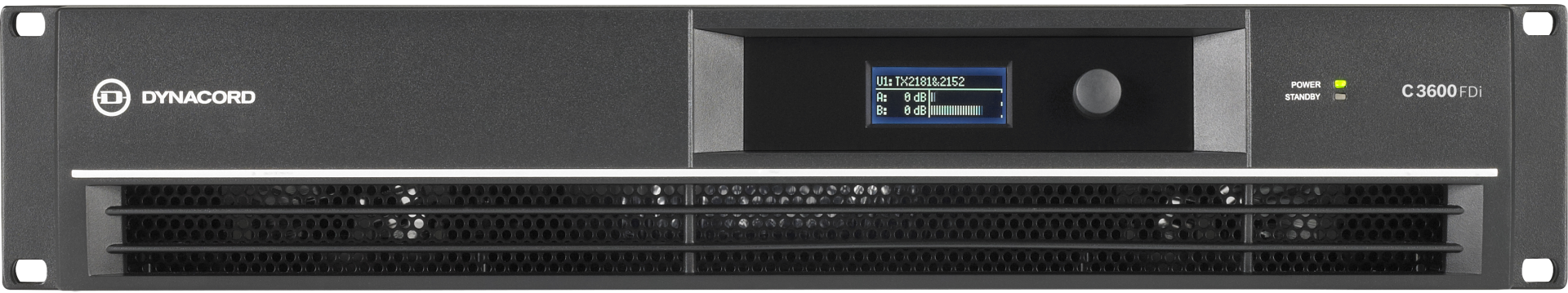

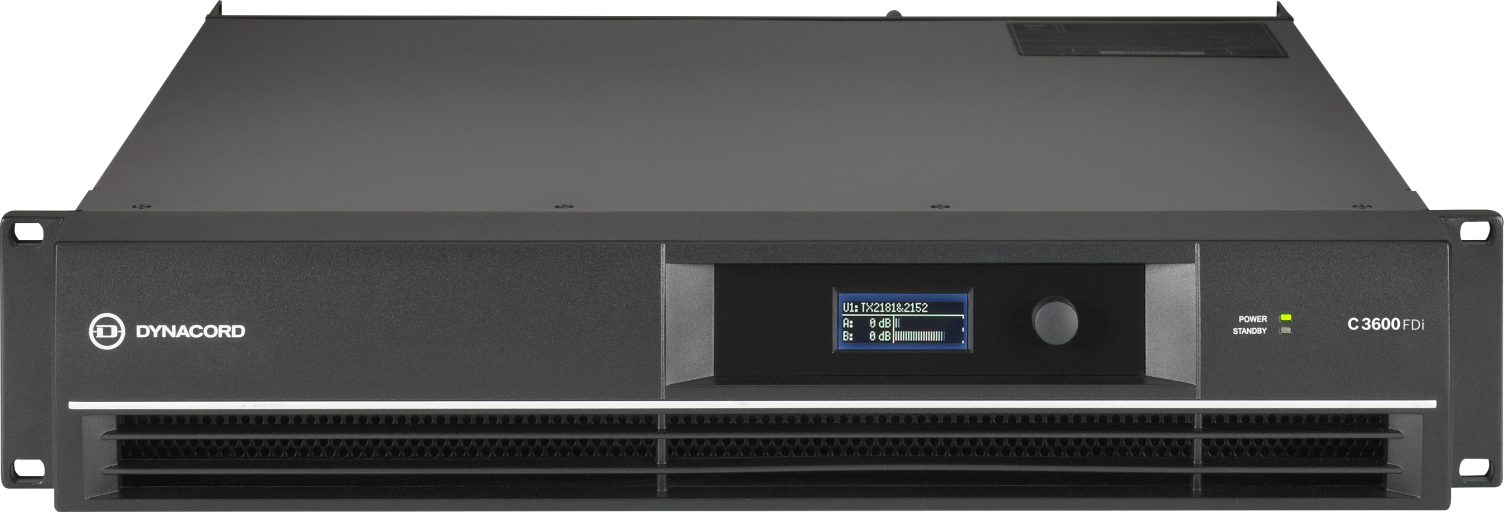

C3600FDi
DSP 2 x 1800 W Leistungsverstärker für Festinstallationen
- DSP-Verstärker für die Festinstallation, Euroblock Anschlüsse
- Integrierte Lautsprecher-Signalverarbeitung mit FIR-Drive Technologie
- Marktführende Audioperformance, solide Bauweise und höchste Zuverlässigkeit.
- Low Z und 70V Betrieb und Energiespar-Standby-Modus
- Intuitive, einfache Konfiguration und Bedienung mit SONICUE Sound System Software (mit Firmware 2.0)
Technische Daten
| Maximum Output Power, Single Channel | 2Ω= 3200W; 2.7Ω= 2700W; 4Ω= 1800W; 8Ω= 950W |
| Maximum Output Power, Dual Channel | Load Impedance= 2Ω=3000W; 2.7Ω=2500W; 4Ω=1700W; 8Ω=900W; 100 V Operation=2 x 2500 W |
| Maximum Output Power, Bridged | Load Impedance= 4Ω=6000 W; 8Ω=3400 W; High Impedance= Not Recommended |
Technische Daten |
|
| Maximum RMS Voltage Swing, THD = 1%, 1kHz | 90.6V |
| Voltage Gain ref.1kHz | 32.0dB |
| IMD-SMPTE, 60 Hz, 7 kHz | <0.1% |
| DIM 30 | <0.05% |
| Maximum Input Level | +21 dBu |
| Crosstalk | < -80dB |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance, active balanced | 20kΩ |
| Signal-to-Noise Ratio (A-weighted) | >109dB |
| Output Noise , A-weighted | <-68dBu |
| Output Stage Topology | Class H |
| Power Requirement | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption | 850 W |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Safety Class | I |
| Available Color | Black |
| Height | 88mm (3.46") |
| Width | 483mm (19.02") |
| Depth | 462.4mm (18.2") |
| Weight Net | 18.2kg (40.12 lbs) |
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance |
| Remote control | SONICUE sound system software (requires firmware 2.0) |
| Total Harmonic Distortion | <0.05% |
| High Impedance Operation | 70V Operation & 100V Operation |
| Direct Drive Load Capability | Dual Channel 70V Operation: Not recommended Dual Channel 100V Operation: 2 x 2500 W (-1.5 dB) Bridge Mode: Not recommended |
| Operating Temperature Range | +5°C to +40°C (40°F to +105°F) |
