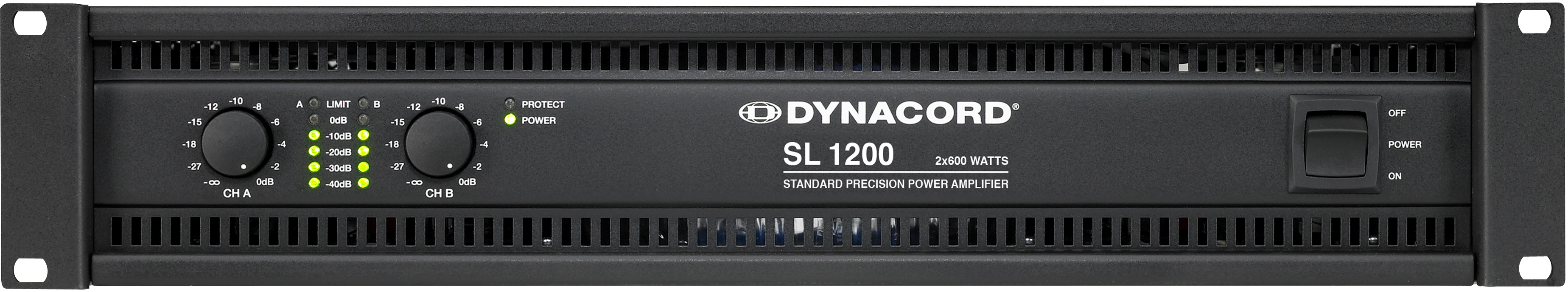

SL 1200

Stabile 2 x 600 W Ausgangsleistung in Class AB, 2 HE

Summary & Images Specs Downloads & Support

Solide Dynacord Verstärker-Technik zum attraktiven Preis.

Die SL Endstufen bieten hohe, stabile Ausgangsleistung bei sehr gutem Wirkungsgrad auf hohem Performance-Niveau und sind damit eine ideale Lösung für viele mobile Systeme und Club-Installationen. SL Amps sind mit einem umfassenden Schutzschaltungs-Paket und dynamischen Limitern ausgestattet.

Das intergrierte, schaltbare Low-Pass Notch Filter (ein spezielles Dynacord Feature) korrigiert den Frequenzgang kleiner bis mittelgroßer PA-Kabinette und optimiert deren Einschwingverhalten.

Mehr Technische Daten

Load Impedance 2 Ω 4 Ω 8 Ω
Maximum Midband Output Power THD = 1%, 1 kHz, Dual Channel 900 W 600 W 380 W
Rated Output Power THD < 0.1%, 20 Hz to 20 kHz 500 W 250 W
Maximum Single Channel Output Power Dynamic-Headroom, IHF-A 1700 W 950 W 480 W
Maximum Single Channel Output Power Continuous, 1 kHz 1200 W 750 W 420 W
Maximum Bridged Output Power THD = 1%, 1 kHz 1800 W 1200 W

Maximum RMS Voltage Swing THD = 1%, 1 kHz 65.1 V
Power Bandwidth THD = 1%, ref. 1 kHz, half power @ 4 Ω < 10 Hz to 30 kHz
Voltage Gain, ref. 1 kHz 32.0 dB
Input Sensitivity rated power @ 8 Ω, 1 kHz +3.1 dBu (1.11 Vrms)
THD at rated Output Power MBW = 80 kHz, 1 kHz < 0.03%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu (8.69 Vrms)
Crosstalk ref. 1 kHz, at rated output power < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 40 kHz (±1 dB)
Input Impedance, active balanced 20 ㏀
Damping Factor, 1 kHz > 300
Slew Rate 26 V/μs
Signal to Noise Ratio A-weighted > 107 dB
Output Noise, A-weighted < -71 dBu
Output Stage Topology Class A/B
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 maximum output power @ 4 Ω 700 W
Mains Fuse 240 V / 230 V: T12AH; 120 V / 100 V: T25AH
Protection Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turnon delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5 °C to +40 °C (40 °F to 105 °F)
Safety Class I
Dimensions (W x H x D), mm 483 x 88.1 x 421.5
Weight 14.8 kg (32.6 lbs)
Signal Processing LPN, switchable
Optional Accessories Rear-rackmount D113223 (RMK-15)
Depending on the ambient temperature, the unit might not operate continously at 2 Ω load in Dual Mode or 4 Ω in Bridged Mode. In addition input power exceeds 1.1 times rated power consumption with 2 Ω load in Dual Mode or 4 Ω load in Bridged Mode
