Vertical array
The loudspeaker cabinets of the vertical array series satisfy the highest standards in terms of acoustic performance, operational safety and reliability; they convince, furthermore, through the exemplary production quality synonymous with goods 'made in germany'.
Their attractive, yet very unobtrusive styling qualify them for deployment or installation in even the most elegant surroundings. Thanks to their aluminum housings, Vertical Array speakers are genuine lightweights, yet at the same time extremely robust. Vertical Array speakers are eminently suitable for live music applications; but in fixed installations, too, they represent a convincing solution for premium sound reinforcement concepts.
Models
 |
 |
 |
 |
 |
 | |
TS 100 |
TS 100W |
TS 200 |

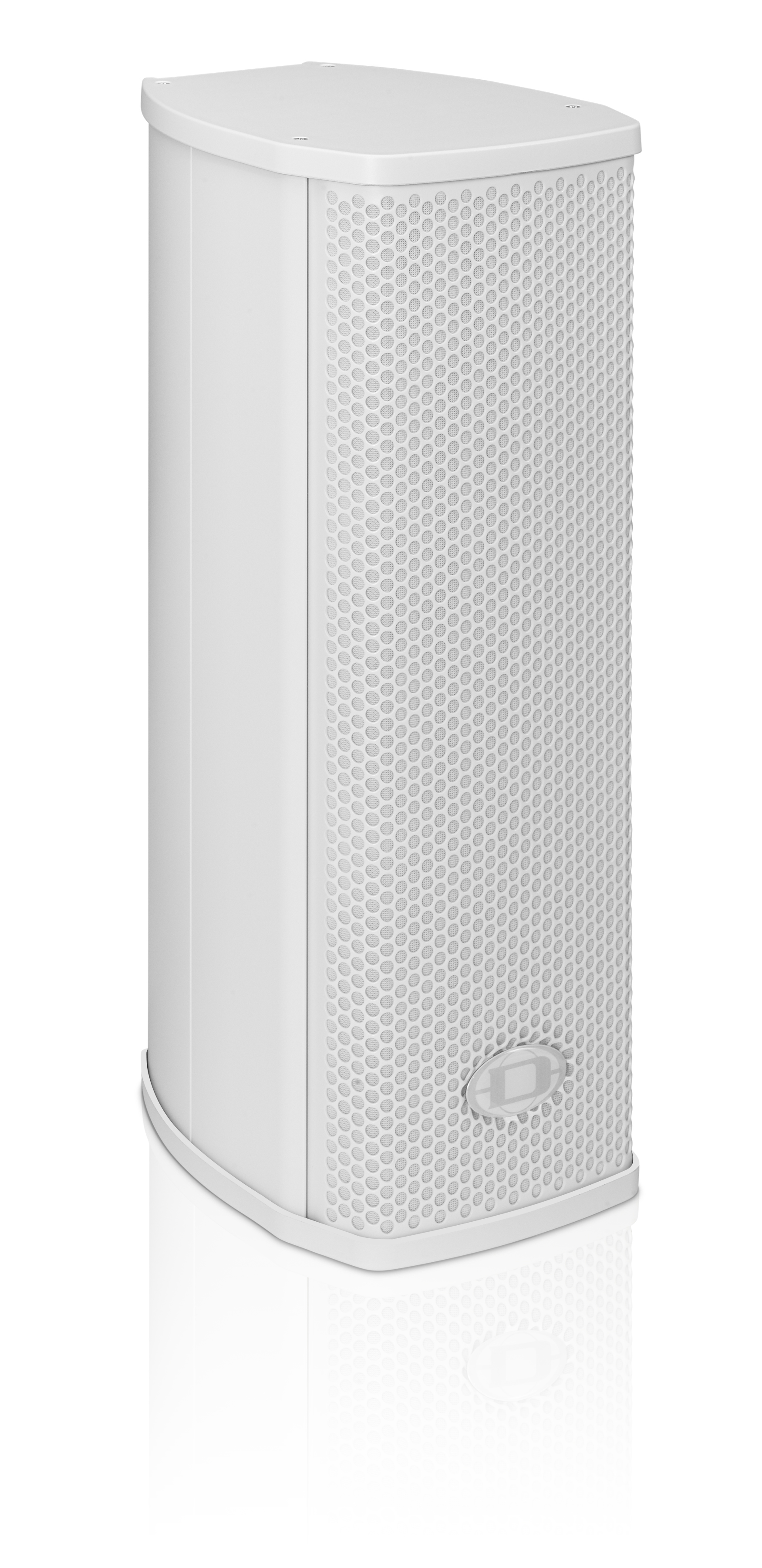

TS 200W |
TS 400 |
TS 400W | |
| Available Color | Black | White | Black | White | White | |
| Weight Net | 7.1kg (15.65 lbs) | 7.1kg (15.65 lbs) | 10kg (22.05 lbs) | 10kg (22.05 lbs) | 17kg (37.48 lbs) | 18kg (39.68 lbs) |
| Contacts wired through | 1+, 1- | 1+, 1- | 1+, 1- | 1+, 1- | ||
| Nominal Coverage Angle | 90° x 40° | 90° x 40° | 90° x 40° | 90° x 40° | 90° x 40° | |
| Power Rating | 600W | 600W | 1200W | 1200W | 2400W | 2400W |
| Configuration | Passive 2-Way | Passive 2-Way | Passive 2-Way | Passive 2-Way | Passive 2.5-Way | Passive 2.5-Way |
| Dimensions | 199 x 350 x 239.5mm | 199 x 350 x 239.5mm | 199 x 513.5 x 239.5mm | 199 x 513.5 x 239.5mm | 199 x 935 x 281 | 199 x 935 x 281mm |
| Rated power RMS | 150W | 150W | 300W | 300W | 600W | 600W |
| Woofer Size | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") |
| Passive Power Handling | 600W peak | 600W peak | 1200W peak | 1200W peak | 2400W peak | 2400W peak |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Frequency range (-10 dB) | 80–20000Hz | 80–20000Hz | 90–20000Hz | 90–20000Hz | 74–20000Hz | |
| SPL 1 W/1 m | 94dB | 94dB | 97dB | 97dB | 97dB | |
| Components | 4 x 6“ / 1“ | |||||
| Suspension | 4 x M6 | 4 x M6 | 8 x M6 | 8 x M6 | 10x M6 | |
| Coverage (H x V) | 90° x 40° | |||||
| Nominal Impedance | 16Ω | 16Ω | 8ΩΩ | 8ΩΩ | 4ΩΩ | |
| Grille | Steel | Steel | Steel | Steel | Steel | |
| X-Over Frequency | 2200Hz | 2200Hz | 2200Hz | 2200Hz | 2600Hz | |
| Model | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | ||
| Powered/Passive | Passive | Passive | Passive | Passive | Passive | Passive |
| Component High | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | |
| Component LOW | DND 6130-16 | DND 6130-16 | 2x DND 6130-16 | 2x DND 6130-16 | 4 x DND 6130-16 | |
| Freq. Range (-10 dB) | 74Hz - 20kHz | |||||
| Contacts full-range | 1+, 1- | 1+, 1- | 1+, 1- | 1+, 1- | ||
| Program power | 300W | 300W | 600W | 600W | ||
| SPL 1 W / 1 m | 97dB | |||||
| Max. SPL/1m (calc) | 122dB | 122dB | 128dB | 128dB | 131dB | 131dB |
| Coverage (Nominal -6 dB) H | 90° | 90° | 90° | 90° | 90° | |
| Speaker Type | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range |
| Voice coil tracking protection | Halogen | Halogen | Halogen | Halogen | ||
| Connector model | 2x NEUTRIK speakON NL4 | |||||
| Impedance | 4ΩΩ | |||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
