SR20TGX System Rack

Preconfigured system rack for TGX series amplifiers

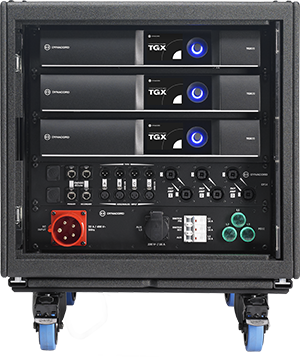

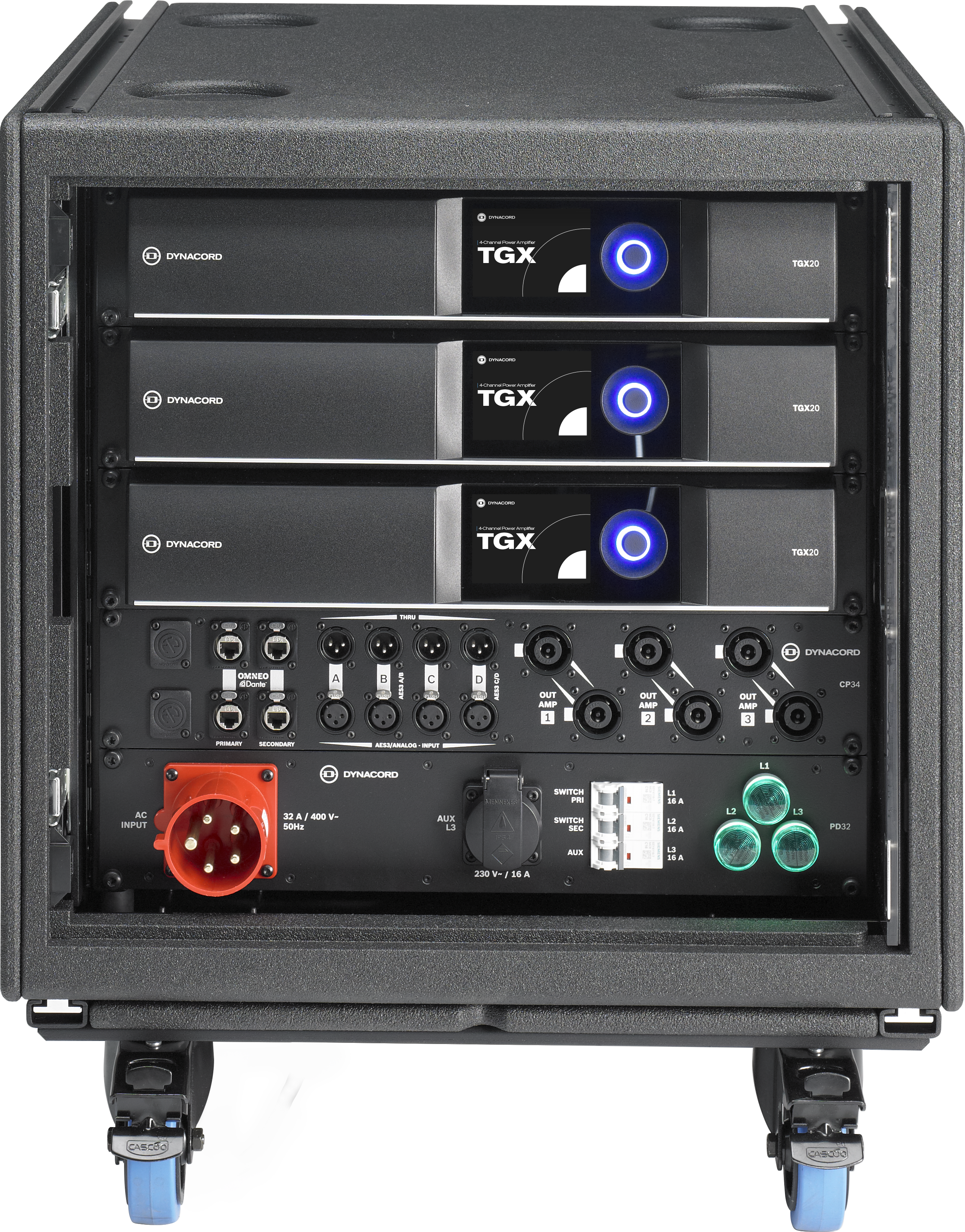

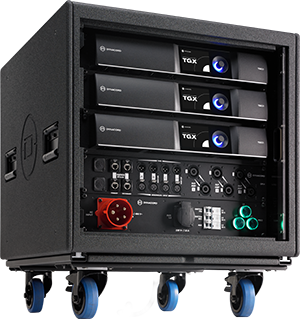

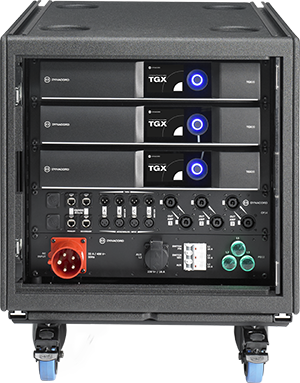

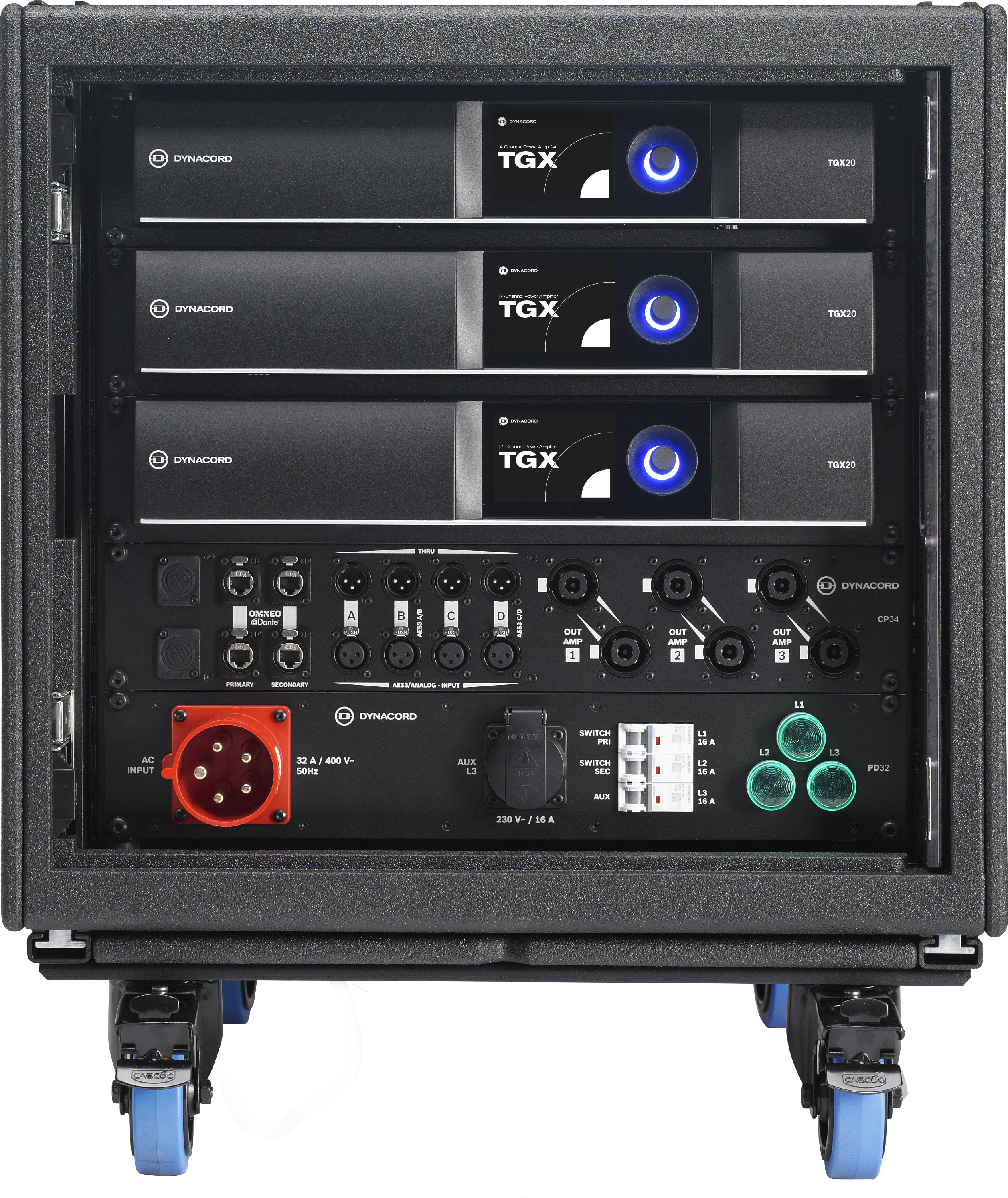

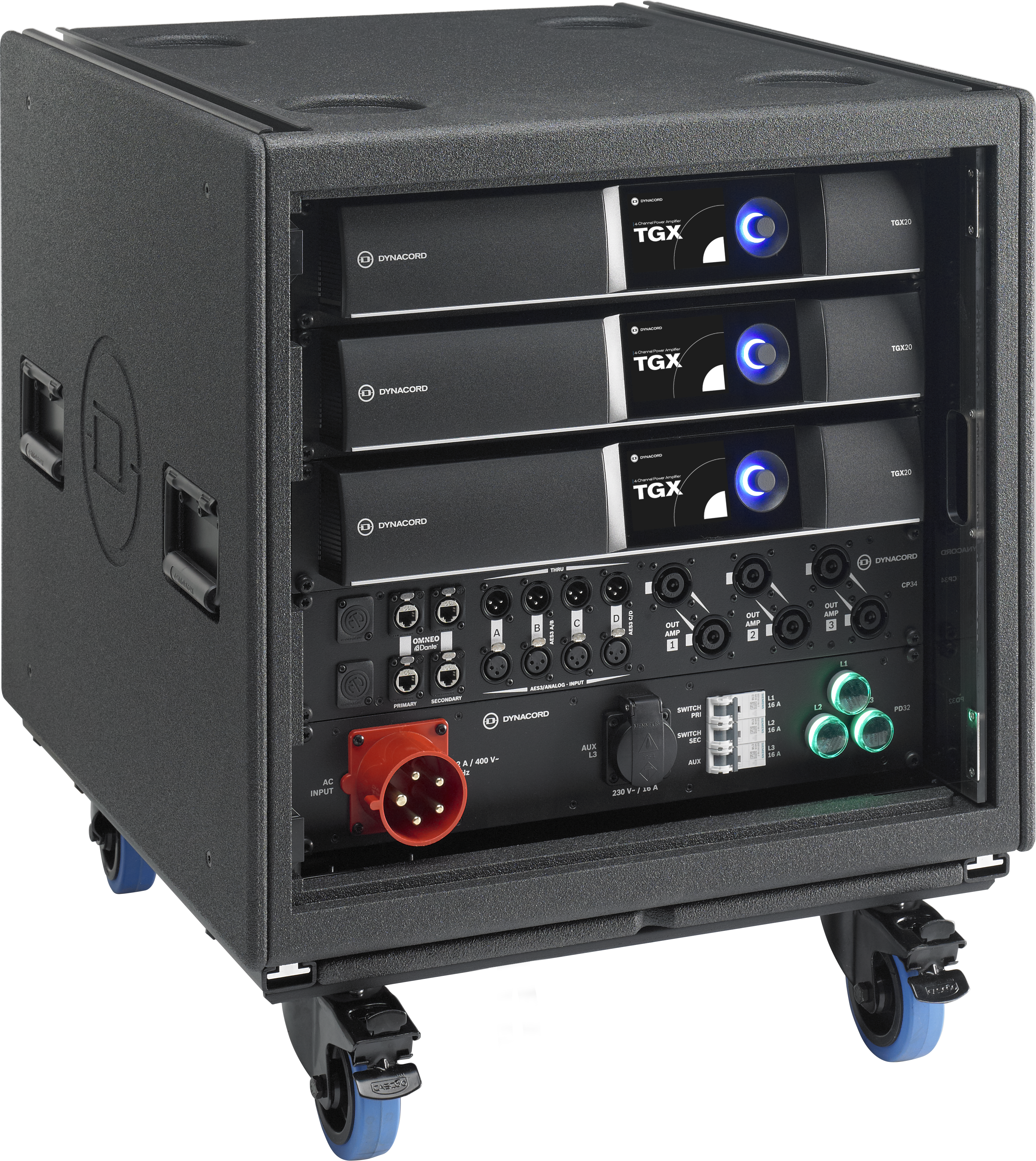

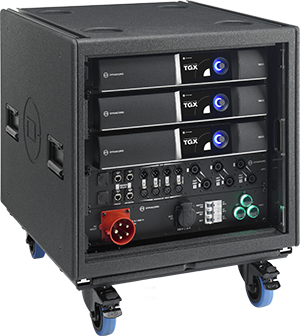

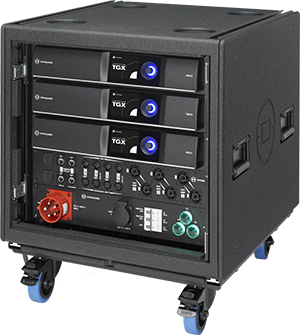

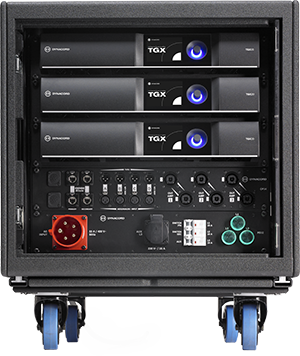

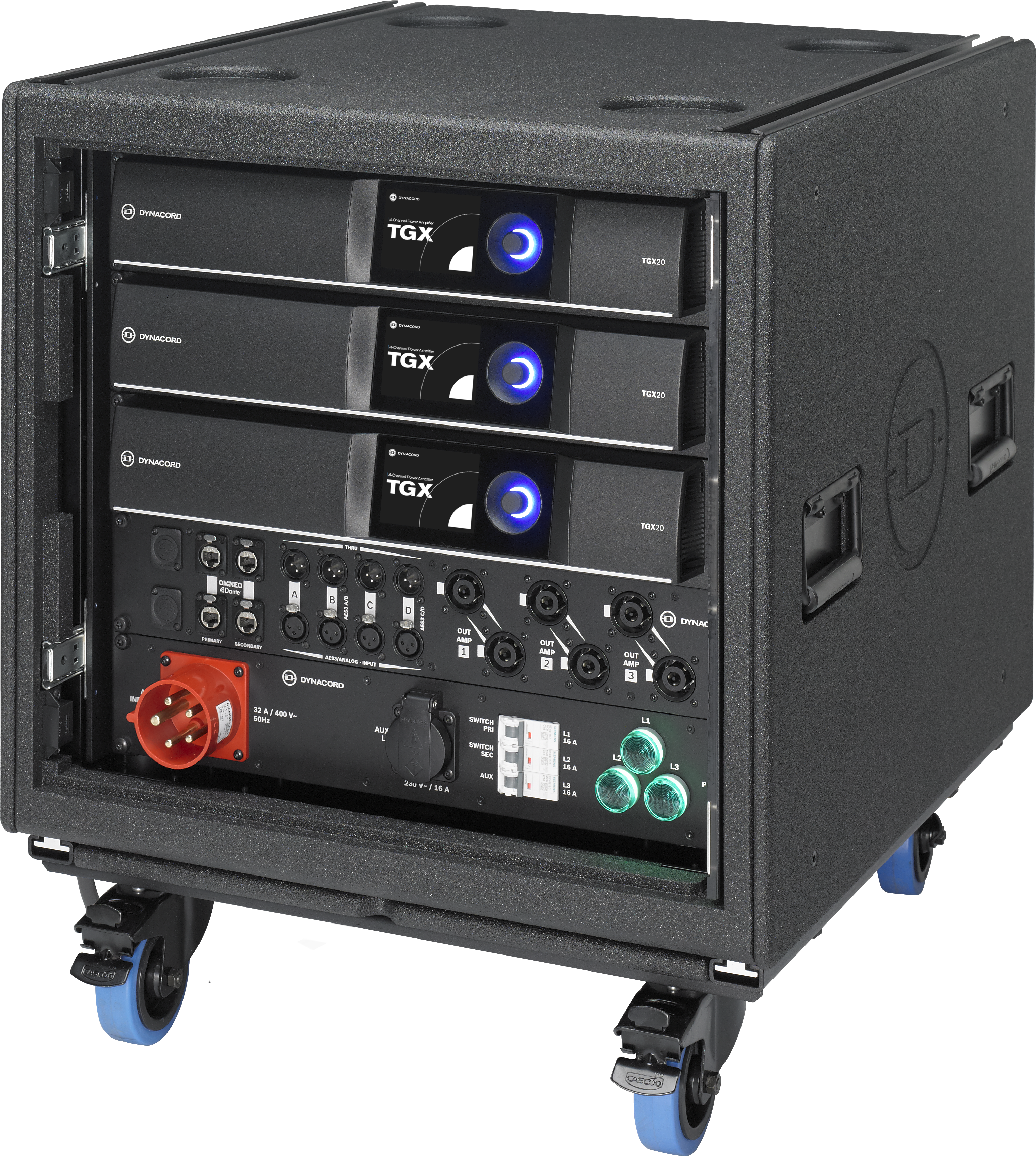

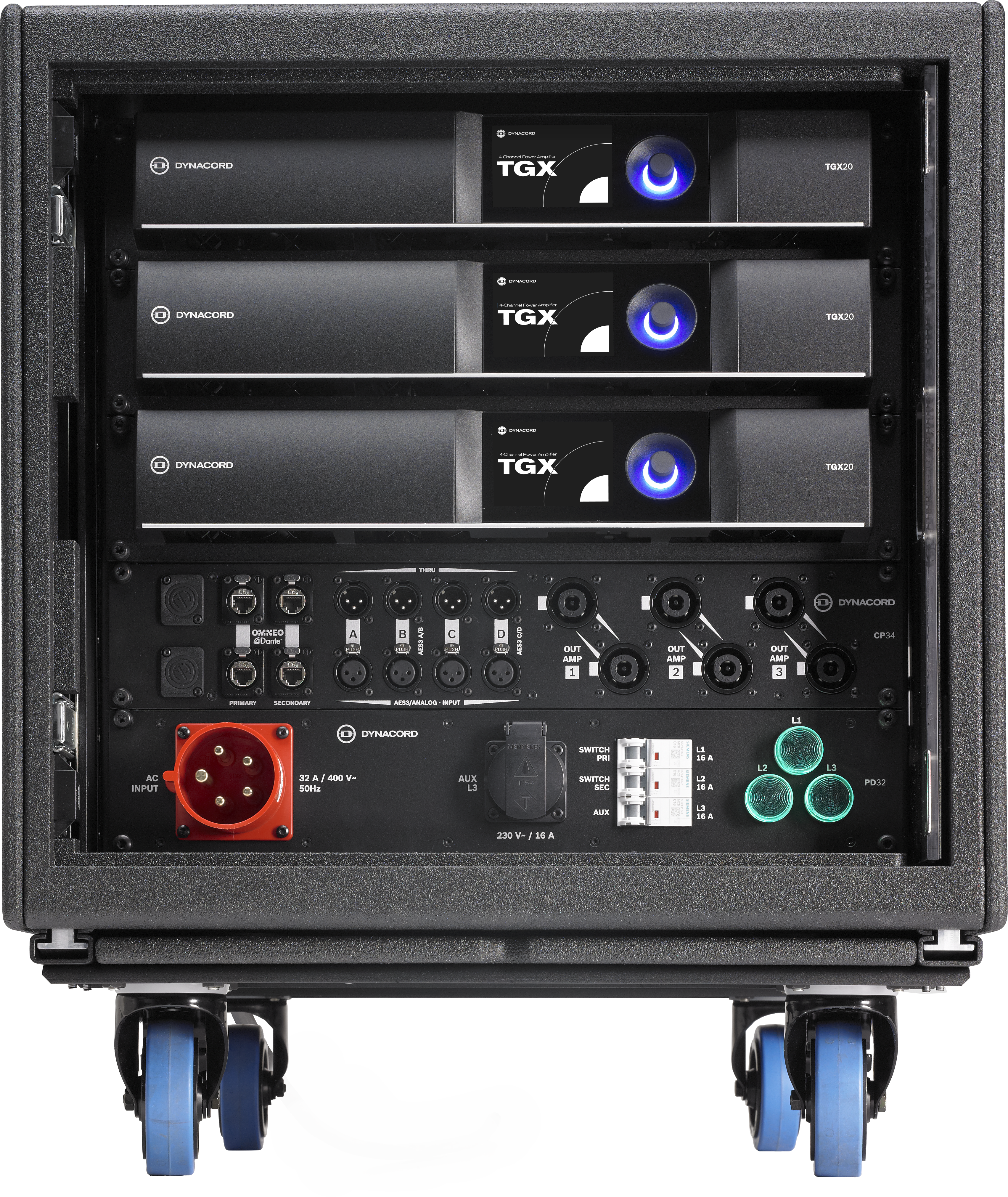

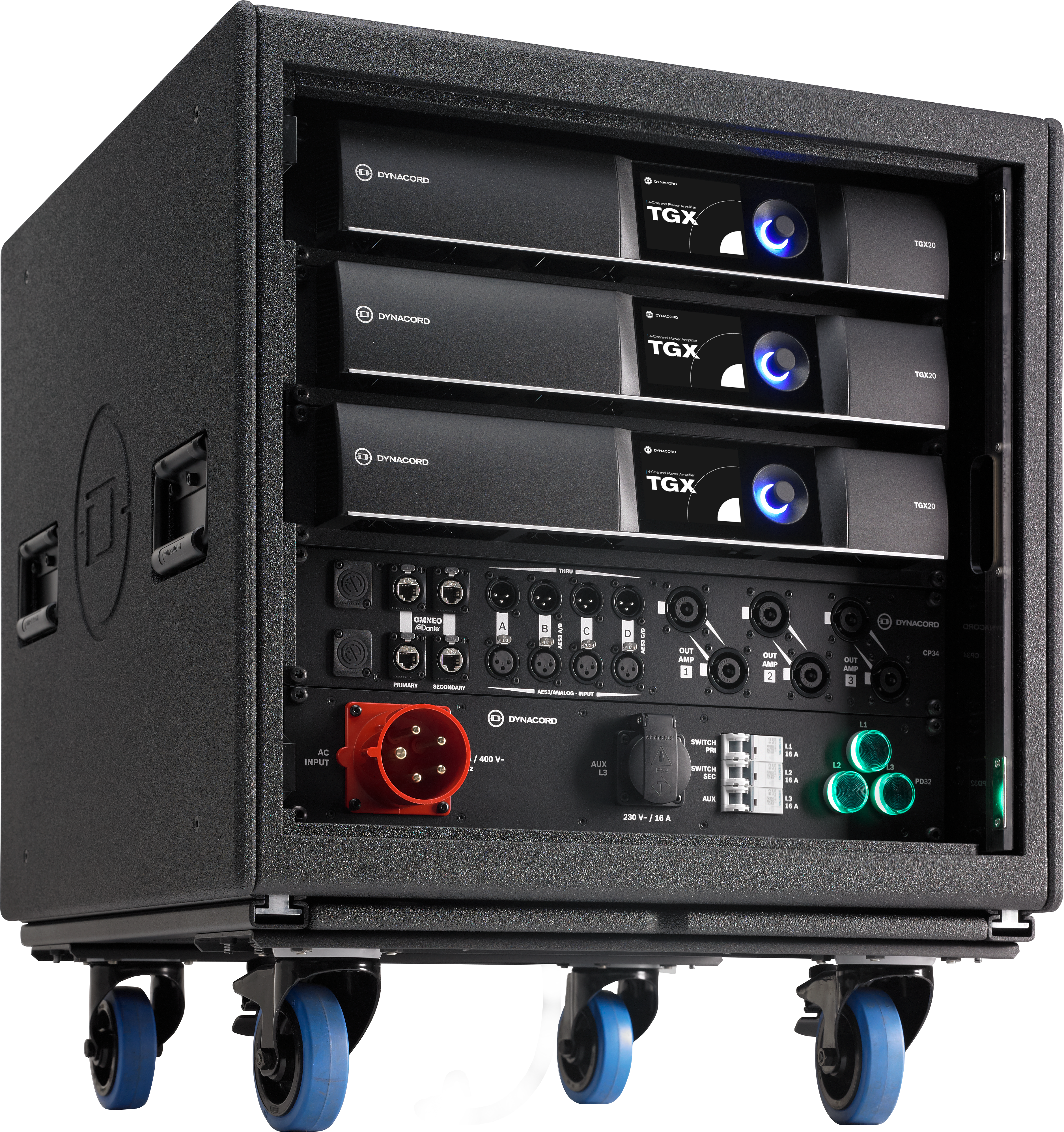

Preconfigured system rack including three TGX20 DSP amplifiers, power distribution, input and output interfaces and network redundancy
Power distribution mountable either on front or rear*
Integrated rack sliding doors
Stackable on a single dolly

*Power distribution available for the EU and NA

The TGX System Rack is a modular solution designed and built for touring professionals by touring professionals.

The 10U TGX system rack is preconfigured with three TGX20 DSP amplifiers plus two independent network switches for glitch-free operation and offers a variety of professional features such as integrated sliding rack doors, customizable I/O options, and a reversible mounting for the power distribution. The TGX system racks can be vertically stacked and locked together to give up to 180kW of output power in the same compact footprint as a conventional amplifier rack.
