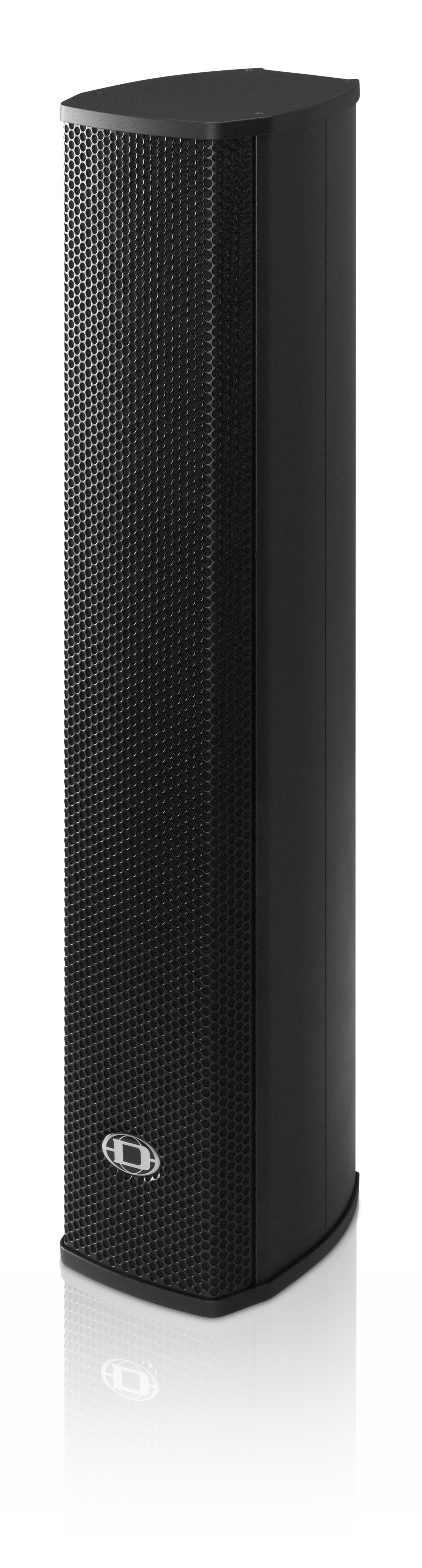

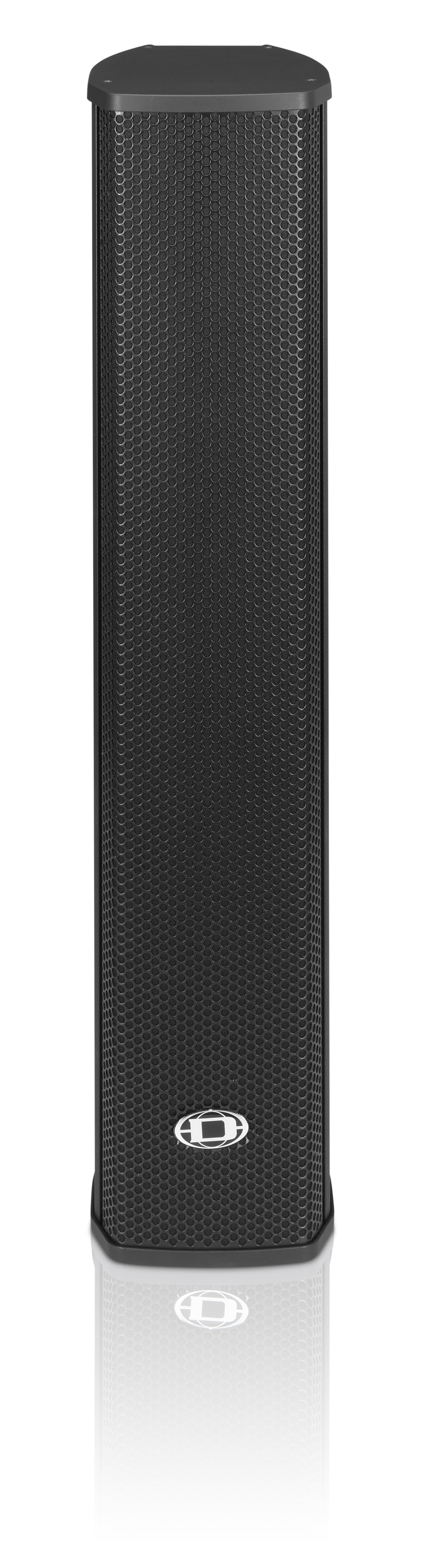

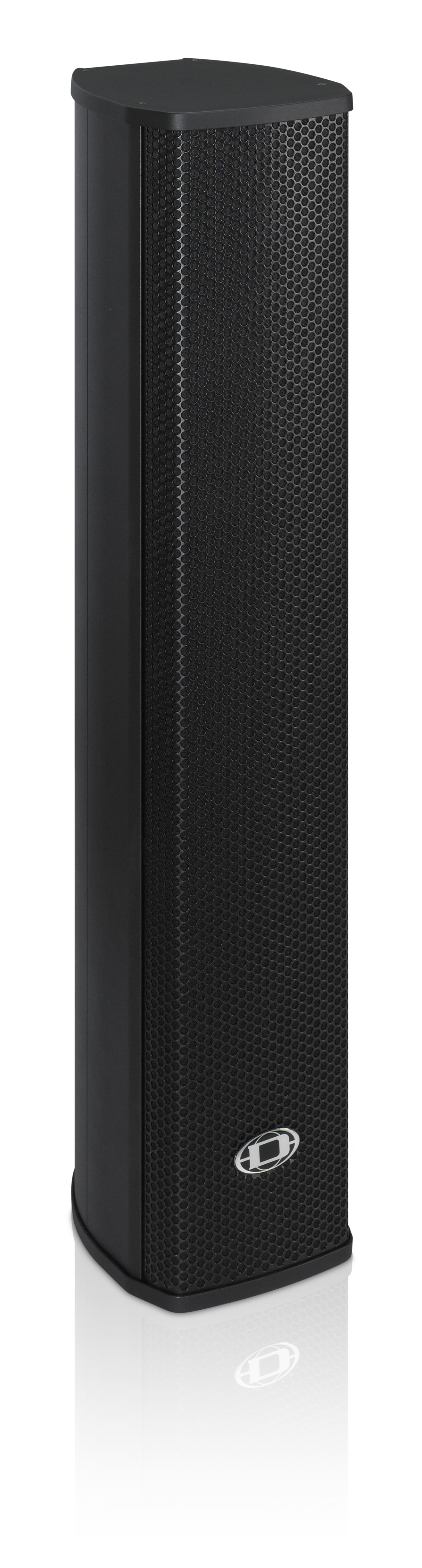

TS 400

4 x 6" / 1" full‑range cabinet; black

Summary & Images Specs Downloads & Support
  • 4x 6" Passive High power multi-functional 2.5 way cabinet, Black
  • 600 Watts / 4 Ohms
  • DH-3 Titanium diaphragm driver
  • CAD optimized 90 x 40 CD horn

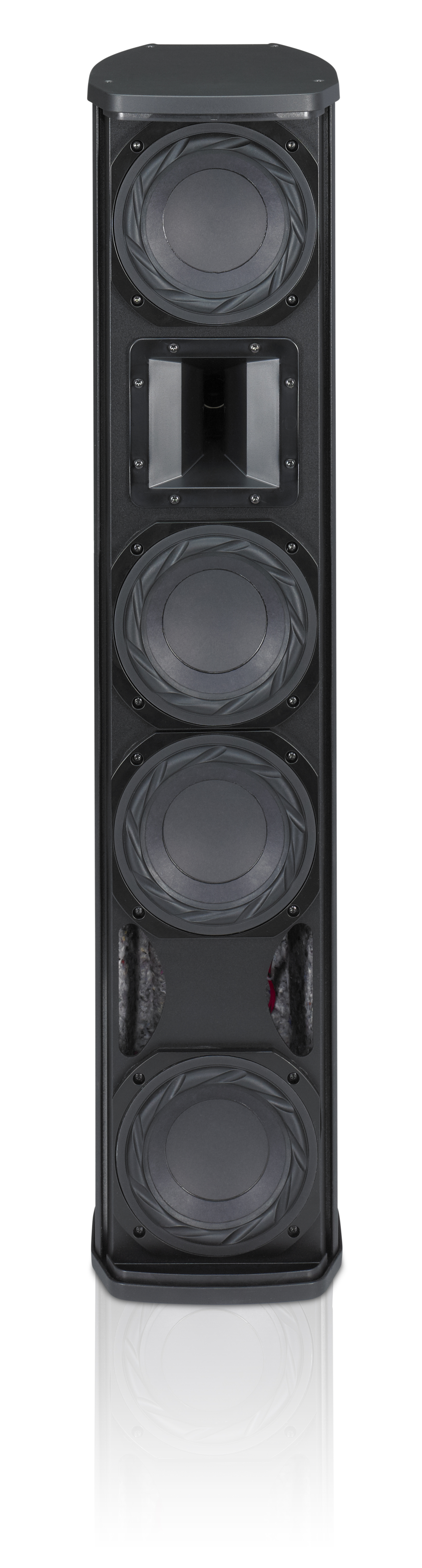

  • 4 Neodymium DND 6130-16 woofers

Vertical pattern control is a requirement for highest sound quality and speech intelligibility, especially in difficult acoustic spaces. The TS 400 was designed to provide a very even and smooth coverage over a very wide bandwidth by using spaced and filtered woofers as array elements. The 2.5 way design places elements at the ends of the column for maximum distance to lower the effective controlled frequency.


Cabinet Full Range
Configuration Passive 2.5-Way
Nominal impedance 4 Ω

Rated Power RMS 600 W
Peak Power 2400 W
Sound pressure level
SPL 1 W / 1 m 97 dB
Max. SPL 1 m (calculated with peak power) 131 dB
Frequency Range (-10 dB) 74 Hz to 20 kHz
Nominal Coverage Angle (Horizontal x Vertical) 90° x 40°
X-Over Frequency 2600 Hz
LF Transducer 4 x DND 6130-16
HF Transducer Electro-Voice DH-3

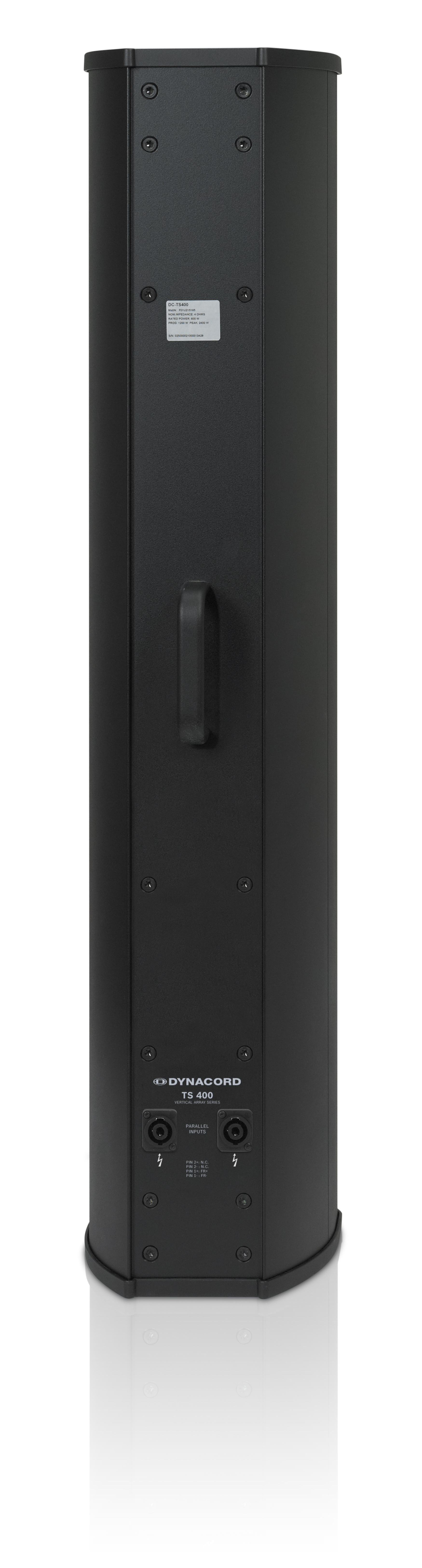

Connectors 2 x Neutrik Speakon NL4
Dimensions (W x H x D) 199 mm x 935 mm x 281 mm
Net Weight 17 kg
Enclosure material Aluminum
Grille Steel, black finish
Suspension 10 x M6
Warranty 5 years
Optional Accessories
TA-TS400 Tilt adaptor F01U267861
FB-TS400 Flying Kit F01U267862
WMK-25 Wallmountkit F01U260845
CB-TS400 Carrying bag F01U215168
Spare Parts
LF Transducer F01U107488
HF Transducer F01U103119
Recommended extensions
PSD 215 Powered Subwoofer 15“ F01U215169
PSD 218 Powered Subwoofer 18“ F01U215170
