CMS
- High-Quality FX processors, editable with 100 factory and 20 user presets
- Professional 4x4 24-bit/96kHz USB interface, recording software and MIDI interface for FX control, please see information on available drivers
- Stereo EQ for the main mix
- First-class components ( e.g. ALPS faders and potentiometers)
- Large, contrast rich OLED display
- Lightweight and compact package
- Made in Germany

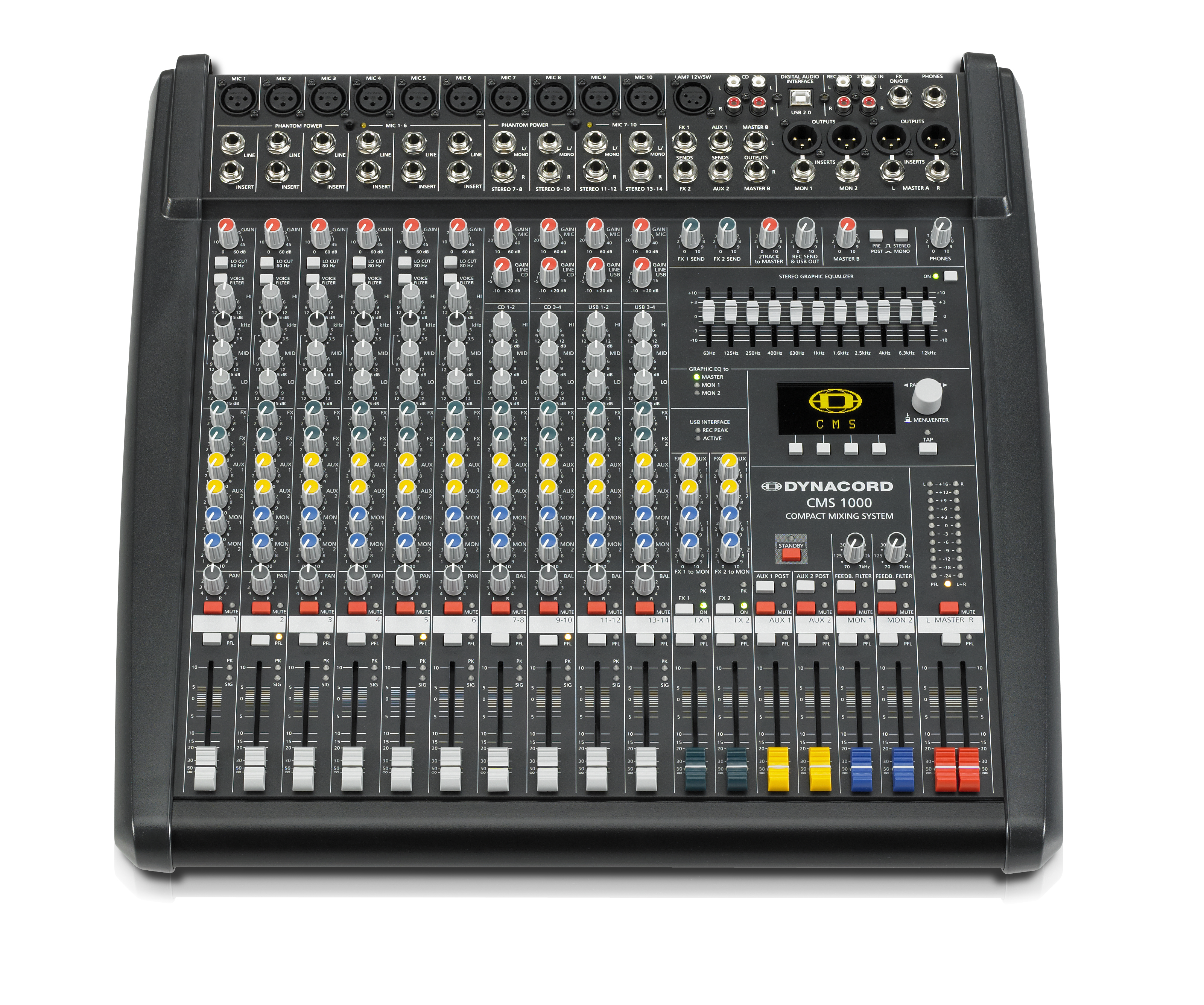

Derived from the iconic PowerMate, Dynacord’s compact mixing system consoles present the peak in their segment by virtue of audio quality, components and features. By integrating a high-quality analog mixer with finest digital 24/48-bit studio grade effect processors, the CMS series represent the preferred solution for a large number of demanding professional audio applications. Offering all the level of quality, the larger CMS 1000, 1600 and 2200 offer the full feature set, while the CMS 600 has been optimized for size.
Models
 |
 |
 |
 | |
CMS 600-3 |
CMS 1000-3 |
CMS 1600-3 |
CMS 2200-3 | |
| Crosstalk | < Channel to Channel: < -80dB; Mute and Standby switch attenuation: > 100dB; Fader and FX/AUX/MON-Send attenuation: > 85dB;dB | < Fader and FX/AUX/MON-Send attenuation: > 85dB; Channel to Channel: < -80dB; dB | < Fader and FX/AUX/MON-Send attenuation: > 85dB; Channel to Channel: < -80dBdB | < Fader and FX/AUX/MON-Send attenuation: > 85dB; Channel to Channel: < -80dBdB |
| Frequency Response (-3 dB) | 15Hz to 70kHz | 15Hz to 70kHz | 15Hz to 70kHz | 15Hz to 70kHz |
| Power Requirement | 100V to 240VAC, 50Hz to 60Hz | 100V to 240VAC, 50Hz to 60Hz | 100V to 240VAC, 50Hz to 60Hz | 100V to 240 VAC, 50Hz to 60Hz |
| Power Consumption | 35W | Without Lamp: 45W; With Lamp: 50W | Without Lamp: 50W; With Lamp: 55W | Without Lamp: 55W; With Lamp: 60W |
| Height | 109.6mm (4.31") | 155mm (6.1") | 155mm (6.1") | 155mm (6.1") |
| Width | 416.9mm (16.41") | 510.5mm (20.1") | 663.5mm (26.12") | 818.5mm (32.22") |
| Depth | 347.8mm (13.69") | 498.5mm (19.63") | 498.5mm (19.63") | 498.5mm (19.63") |
| Weight Net | 5.8kg (12.79 lbs) | 9.5kg (20.94 lbs) | 12kg (26.46 lbs) | 14.5kg (31.97 lbs) |
| Safety Class | I | I | I | I |
| Noise, Channel inputs to Master A L/R outputs, A-weighted | Master fader down: -100dBu; Master fader 0dB, Channel fader down: -92dBu; Master fader 0dB, Channel fader 0dB, Channel gain unity: -82dBu | Master fader down: -97dBu; Master fader 0dB, Channel fader down: -91dBu; Master fader 0dB, Channel fader 0dB, Channel gain unity: -83dBu | Master fader down: -97dBu; Master fader 0dB, Channel fader down: -89dBu; Master fader 0dB, Channel fader 0dB, Channel gain unity: -82dBu | Master fader down: -97dBu; Master fader 0 dB, Channel fader down: -87dBu; Master fader 0dB, Channel fader 0dB, Channel gain unity: -81dBu |
| Digital Audio Interface | Channels: 4 In / 4 Out; AD/DA Conversion: 24-bit; Sampling Rate: 44.1 / 48 / 88.2 / 96kHz; PC Interface: USB2.0, Female Type B | Channels: 4 In / 4 Out; AD/DA Conversion: 24-bit; Sampling Rate: 44.1 / 48 / 88.2 / 96kHz; PC Interface: USB2.0, Female Type B; Peak Display: 6 dB before Clip | Channels: 4 In / 4 Out; AD/DA Conversion: 24-bit; Sampling Rate: 44.1 / 48 / 88.2 / 96kHz; PC Interface: USB2.0, Female Type B; Peak Display: 6 dB before Clip | Channels: 4 In / 4 Out; AD/DA Conversion: 24-bit; Sampling Rate: 44.1 / 48 / 88.2 / 96kHz; PC Interface: USB2.0, Female Type B; Peak Display: 6 dB before Clip |
| CMRR, MIC input, 1 kHz | >80dB | >80dB | >80dB | >80dB |
| Equalization | LO Shelving: ±15dB / 60Hz; MID Peaking: ±12dB / 2.4kHz; HI Shelving: ±15dB / 12 kHz; Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz): ±10dB/Q = 1.5 to 2.5 | LO Shelving: ±15dB / 60Hz; MID Peaking, mono inputs: ±15dB / 100Hz to 8kHz; MID Peaking, stereo inputs: ±12 dB / 2.4 kHz; HI Shelving: ±15 dB / 12 kHz; Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz): ±10dB / Q = 1.5 to | LO Shelving: ±15dB / 60Hz; MID Peaking, mono inputs: ±15dB / 100Hz to 8kHz; MID Peaking, stereo inputs: ±12 dB / 2.4 kHz; HI Shelving: ±15 dB / 12 kHz; Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz): ±10dB/Q = 1.5 to | LO Shelving: ±15dB / 60Hz; MID Peaking, mono inputs: ±15dB / 100Hz to 8kHz; MID Peaking, stereo inputs: ±12 dB / 2.4 kHz; HI Shelving: ±15 dB / 12 kHz; Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz): ±10dB/Q = 1.5 to |
| MIDI Interface | 5-pin DIN connector, In / Out | 5-pin DIN connector, In / Out | 5-pin DIN connector, In / Out | 5-pin DIN connector, In / Out |
| Input Impedances | MIC: 2㏀; CD In: 10㏀; All other inputs: > 15㏀; | MIC: 2㏀; Insert Return: > 3.3㏀; 2Track Return & CD In: 10㏀; All other inputs: > 15㏀ | MIC: 2㏀; Insert Return: > 3.3㏀; 2Track Return & CD In: 10㏀; All other inputs: > 15㏀ | MIC: 2㏀; Insert Return: > 3.3㏀; 2Track Return & CD In: 10㏀; All other inputs: > 15㏀ |
| Filter | LO-CUT, mono inputs: f =80Hz, 18dB/oct. | LO-CUT, mono inputs: f=80Hz, 18dB/oct; VOICE FILTER, mono inputs: switchable; FEEDBACK FILTER, MON ½: 70Hz to 7kHz, Notch, -9dB | LO-CUT, mono inputs: f=80Hz, 18dB/oct; VOICE FILTER, mono inputs: switchable; FEEDBACK FILTER, MON ½: 70Hz to 7kHz, Notch, -9dB | LO-CUT, mono inputs: f=80Hz, 18dB/oct.; VOICE FILTER, mono inputs: switchable; FEEDBACK FILTER, MON ½: 70Hz to 7kHz, Notch, -9dB |
| Protection | Mixer Outputs (Relay controlled): AUX, MON, MASTER A L/R; Switching Mode Power Supply (μC controlled): Mains Over/Undervoltage | Mixer Outputs (Relay controlled): MON 1, MON 2, MASTER A; Switching Mode Power Supply (μC controlled): Mains Over/Undervoltage, High Temperature | Mixer Outputs (Relay controlled): MON 1, MON 2, MASTER A; Switching Mode Power Supply (μC controlled): Mains Over/Undervoltage, High Temperature | Mixer Outputs (Relay controlled): MON 1, MON 2, MASTER A; Switching Mode Power Supply (μC controlled): Mains Over/Undervoltage, High Temperature |
| Output Impedances | Phones: 47Ω; All other outputs: 75Ω (unbalanced), 150Ω (balanced) | Phones: 47Ω; All other outputs: 75Ω | Phones: 47Ω; All other outputs: 75Ω | Phones: 47Ω; All other outputs: 75Ω |
| Effects | Type: Dual stereo 24/48-bit multi effects processors; Effects presets: 100 Factory + 20 User, Tap-Delay; Remote control: Footswitch, MIDI | Type: Dual stereo 24/48-bit multi effects processors; Effects presets: 100 Factory + 20 User, Tap-Delay; Remote control: Footswitch, MIDI; | Type: Dual stereo 24/48-bit multi effects processors; Effects presets: 100 Factory + 20 User, Tap-Delay; Remote control: Footswitch, MIDI | Type: Dual stereo 24/48-bit multi effects processors; Effects presets: 100 Factory + 20 User, Tap-Delay; Remote control: Footswitch, MIDI |
| Equivalent Input Noise, MIC input, A-weighted, 150 ohms | -130dBu | -130dBu | -130dBu | -130dBu |
| Total Harmonic Distortion | <0.005% | <0.005% | <0.005%% | <0.005%% |
| Input Sensitivity | MIC: -74dBu (155μV); LINE (Mono): -54dBu (1.55mV); LINE (Stereo): -34dBu (15.5mV); CD (Stereo): -34dBu (15.5mV); | MIC: -74dBu (155μV); LINE (Mono): -54dBu (1.55mV); LINE (Stereo): -34dBu (15.5mV); CD (Stereo): -34dBu (15.5mV) | MIC: -74dBu (155μV); LINE (Mono): -54dBu (1.55mV); LINE (Stereo): -34dBu (15.5mV); CD (Stereo): -34dBu (15.5mV) | MIC: -74dBu (155μV); LINE (Mono): -54dBu (1.55mV); LINE (Stereo): -34dBu (15.5mV); CD (Stereo): -34dBu (15.5mV) |
| Displays | 128 x 64 pixels, OLED | 128 x 64 pixels, OLED | 128 x 64 pixels, OLED | 128 x 64 pixels, OLED |
| Phantom Power | 48VDC | 48VDC | 48VDC | 48VDC |
| Shipping Weight | 7.8kg (17.2 lbs) | 12.5kg (27.56 lbs) | 15kg (33.07 lbs) | 17.5kg (38.58 lbs) |
| Operating Temperature Range | +5 °C…+40 °C (40 °F…105 °F) | +5 °C…+40 °C (40 °F…105 °F) | +5 °C…+40 °C (40 °F…105 °F) | +5 °C…+40 °C (40 °F…105 °F) |
| Maximum SPL | MIC inputs: +12dBu; Mono Line inputs: +31dBu; Stereo Line inputs: +30dBu; All other inputs: +22dBu; All other outputs: +22dBudB | MIC Inputs: +21dBu; Mono Line inputs: +41dBu; Stereo Line inputs: +30dBu; All other inputs: +22dBu; All other outputs: +22dBudB | MIC inputs: +21dBu; Mono Line inputs: +41dBu; Stereo Line inputs: +30dBu; All other inputs: +22dBu; All other outputs: +22dBudB | MIC Inputs: +21dBu; Mono Line Inputs: +41dBu; Stereo Line Inputs: +30dBu; All other inputs: +22dBu; All other outputs: +22dBudB |
| Channels | 6 | 12 | 18 | |
| Auxiliarys (MON, FX, AUX) | Pre/Post switchable, Pre | 2 Pre, 2 Post, 2 Pre/Post switchable | 2 Pre, 2 Post, 2 Pre/Post switchable | 2 Pre, 2 Post, 2 Pre/Post switchable |
| MIC GAIN (Mono) | 0…+60dB | 0…+60dB | 0…+60dB | |
| MIC GAIN (Stereo) | +10 to +60dB | +10 to +60dB | +10 to +60dB | +10 to +60dB |
| LINE/CD/USB GAIN (Stereo) | -10…+20dB | -10…+20dB | -10…+20dB | |
