Vertical array
Die Lautsprechergehäuse der Vertical Array Series erfüllt die höchsten Standards, was die Akustikleistung, Betriebssicherheit und Zuverlässigkeit betrifft. Zudem überzeugen sie durch die beispielhafte Produktionsqualität, die hinter dem Siegel „Made in Germany“ steht.
Die attraktive, sehr dezente optische Gestaltung erlaubt den Einsatz und Installation auch in anspruchsvollster Umgebung. Dank ihrer Aluminium-Gehäuse sind die Vertical Array Speaker echte Leichtgewichte und dabei äußerst robust. Vertical Array Speaker sind sowohl für Live-Music Applikationen aber vor allem auch in der Festinstallation die überzeugende Lösung für Premium Beschallungs-Konzepte.
Produkte
 |
 |
 |
 |
 |
 | |

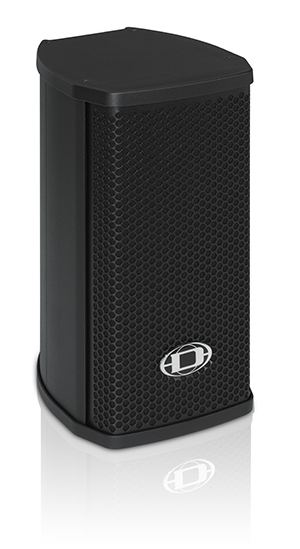

TS 100 |

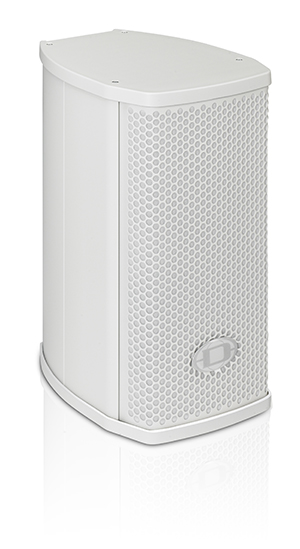

TS 100W |

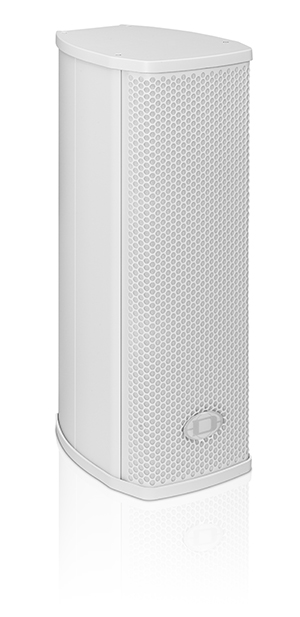

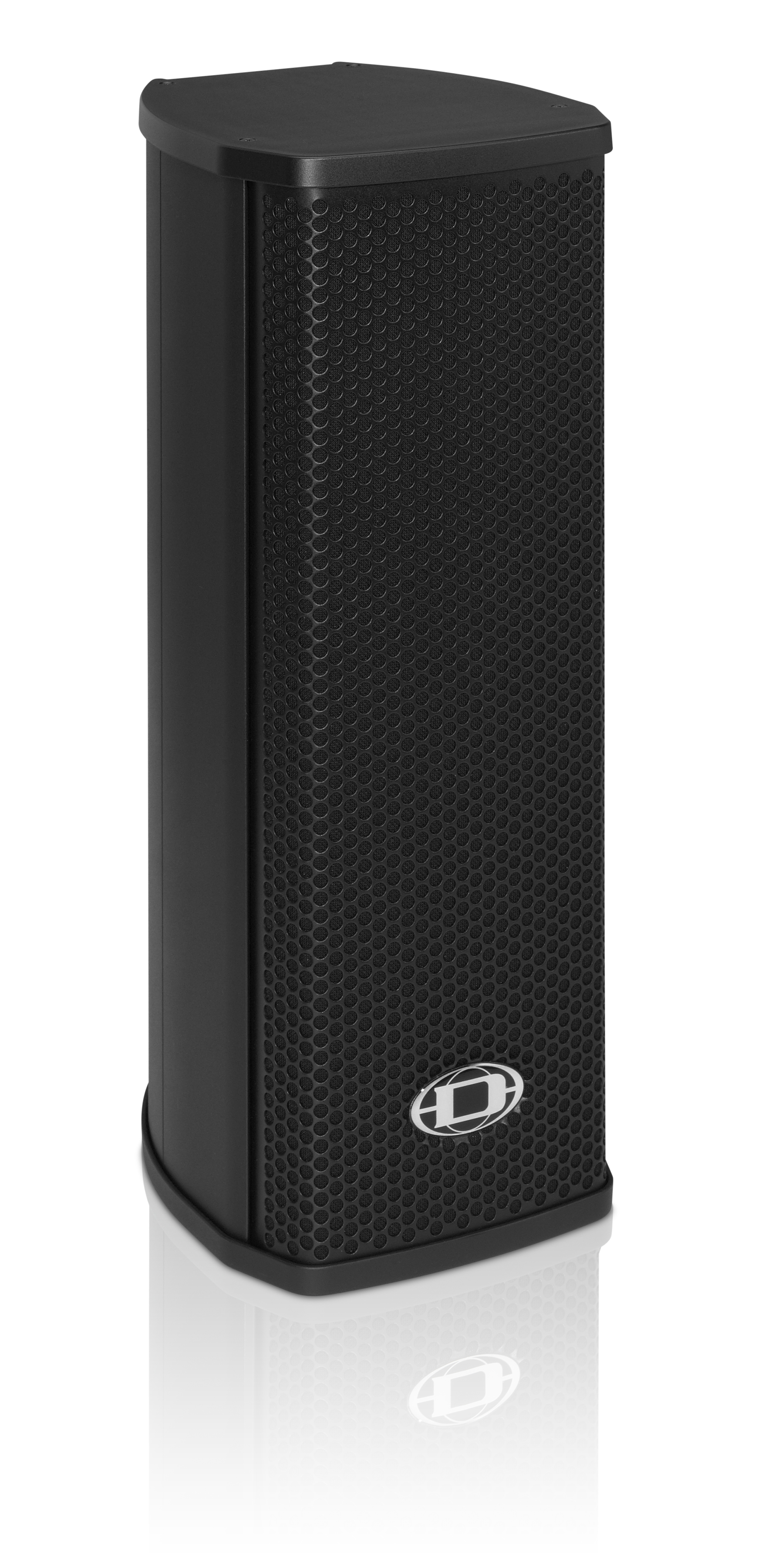

TS 200 |
TS 200W |

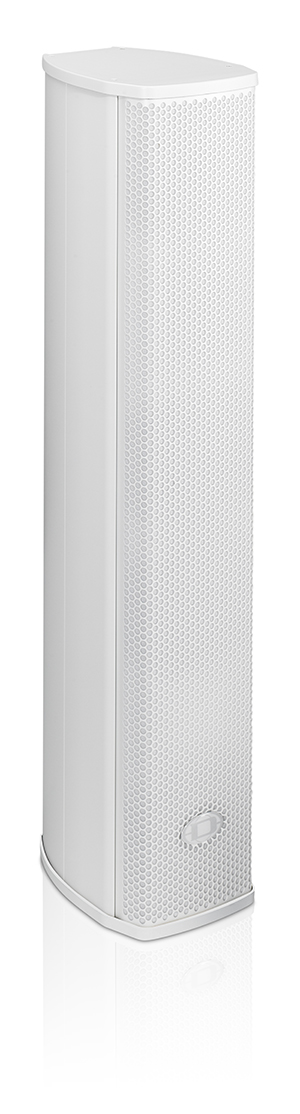

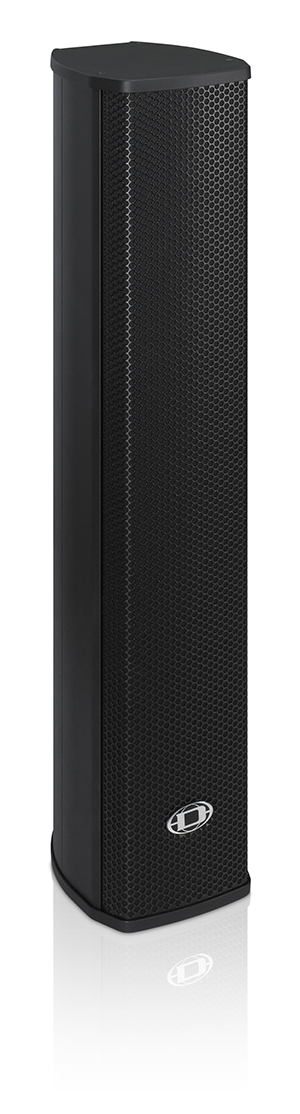

TS 400 |
TS 400W | |
| Available Color | Black | White | Black | White | White | |
| Weight Net | 7.1kg (15.65 lbs) | 7.1kg (15.65 lbs) | 10kg (22.05 lbs) | 10kg (22.05 lbs) | 17kg (37.48 lbs) | 18kg (39.68 lbs) |
| Voice coil tracking protection | Halogen | Halogen | Halogen | Halogen | ||
| Nominal Coverage Angle | 90° x 40° | 90° x 40° | 90° x 40° | 90° x 40° | 90° x 40° | |
| Rated power RMS | 150W | 150W | 300W | 300W | 600W | 600W |
| Contacts wired through | 1+, 1- | 1+, 1- | 1+, 1- | 1+, 1- | ||
| X-Over Frequency | 2200Hz | 2200Hz | 2200Hz | 2200Hz | 2600Hz | |
| Program power | 300W | 300W | 600W | 600W | ||
| SPL 1 W / 1 m | 97dB | |||||
| Dimensions | 199 x 350 x 239.5mm | 199 x 350 x 239.5mm | 199 x 513.5 x 239.5mm | 199 x 513.5 x 239.5mm | 199 x 935 x 281 | 199 x 935 x 281mm |
| Powered/Passive | Passive | Passive | Passive | Passive | Passive | Passive |
| Frequency range (-10 dB) | 80–20000Hz | 80–20000Hz | 90–20000Hz | 90–20000Hz | 74–20000Hz | |
| SPL 1 W/1 m | 94dB | 94dB | 97dB | 97dB | 97dB | |
| Grille | Steel | Steel | Steel | Steel | Steel | |
| Max. SPL/1m (calc) | 122dB | 122dB | 128dB | 128dB | 131dB | 131dB |
| Model | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | 2x NEUTRIK speakON NL4 | ||
| Coverage (Nominal -6 dB) H | 90° | 90° | 90° | 90° | 90° | |
| Speaker Type | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Suspension | 4 x M6 | 4 x M6 | 8 x M6 | 8 x M6 | 10x M6 | |
| Nominal Impedance | 16Ω | 16Ω | 8ΩΩ | 8ΩΩ | 4ΩΩ | |
| Power Rating | 600W | 600W | 1200W | 1200W | 2400W | 2400W |
| Woofer Size | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") | 6mm (0.24") |
| Configuration | Passive 2-Way | Passive 2-Way | Passive 2-Way | Passive 2-Way | Passive 2.5-Way | Passive 2.5-Way |
| Passive Power Handling | 600W peak | 600W peak | 1200W peak | 1200W peak | 2400W peak | 2400W peak |
| Component High | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | Electro-Voice DH-3 | |
| Component LOW | DND 6130-16 | DND 6130-16 | 2x DND 6130-16 | 2x DND 6130-16 | 4 x DND 6130-16 | |
| Contacts full-range | 1+, 1- | 1+, 1- | 1+, 1- | 1+, 1- | ||
| Connector model | 2x NEUTRIK speakON NL4 | |||||
| Impedance | 4ΩΩ | |||||
| Components | 4 x 6“ / 1“ | |||||
| Coverage (H x V) | 90° x 40° | |||||
| Freq. Range (-10 dB) | 74Hz - 20kHz | |||||
